3M Products & Supplies

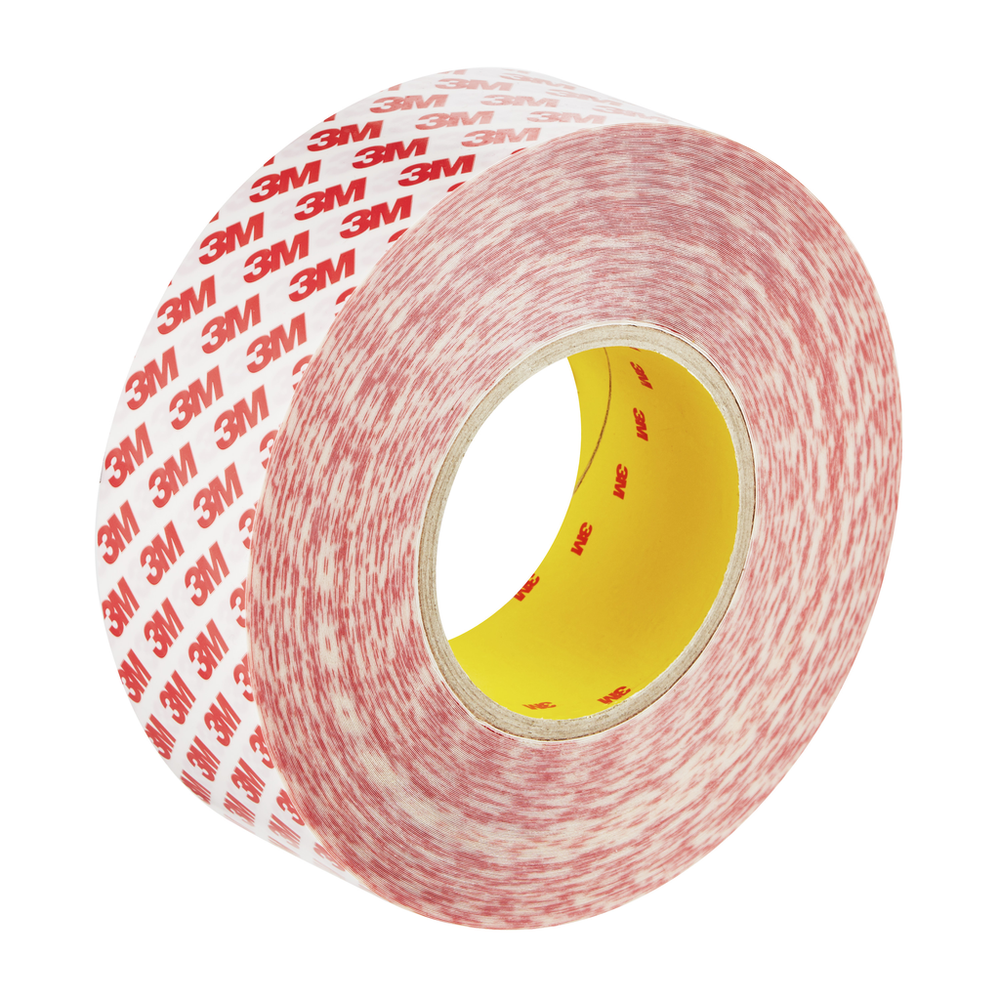

3M™ Double Coated Tape GPT-020F, Film liner, 50mm x 50m, 6 Roll/Case - 7100369902

Sold As: 6-Pack
SKU: 7100369902
MPN: 7100369902
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00068060760449
3M ID: UU013578719
$192.51 ($32.09 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape GPT-020F is an 8 mil (200 micron), high-tack, pressure-sensitive adhesive tape with a clear polyester carrier and robust polypropylene liner that offers clean handling. Ideal for automated processes and easy to convert due to the flexibility of the film, it bonds to a variety of high to low-surface energy materials, such as glass and stainless steel, while providing excellent humidity resistance. Combining a high level of peel and shear performance this general-use tape allows for high-temperature applications up to 300 °F (149 °C) in short-term operations and up to 200 °F (93 °C) for long-term use. 3M™ Double Coated Tape GPT-020F is suited for a wide range of purposes, including point-of-purchase displays, indoor and outdoor signage bonding, billboard mounting, paper bonding and packaging, splicing, furniture and decorative trim adhesion, and many more. The product is available with a size range of 12 mm to 1540 mm widths and 50 m long. Additionally, you can choose the 1540 mm width and 500 m long roll. Trust 3M™ Double Coated Tape GPT-020F for your next project.

Features

  • HANDLES HIGH TEMPERATURES: Suitable for short-term use at a temperature up to 300 °F (149 °C) or long-term use withstanding up to 200 °F (93 °C)
  • HIGH INITIAL TACK: Made with a strong adhesive that sticks to high and low surface energy materials
  • FLEXIBLE AND STRONG: An 8 mil (200 micron) thick double-coated tape with a white, 3.9 mil (100 micron) polypropylene liner that is ideal for automated processes
  • PRODUCT OPTIONS: Available in standard roll format with a size range of 9 mm to 1540 mm widths and 50 m long, as well as a 1540 mm width and 500 m long roll
  • HUMIDITY RESISTANCE: Leveraging a polypropylene liner that withstands moisture (not applicable on the paper liner product)
  • MULTIPURPOSE: Works across many applications, including point-of-purchase displays, indoor and outdoor signage bonding, billboard mounting, furniture assembly, and more

Downloads

Specifications

Shelf Life547
Maximum Operating Temperature (Fahrenheit)300.0
Total Tape Thickness without Liner (Metric)0.2
Face Side Adhesive Thickness (Imperial) UOMmil
Units per Case6.0
Overall Length (Imperial) UOMyd
Overall Width (Metric)50.0
Shelf Life UOMMonth
IndustriesAppliance, Converter Solutions, Craft, General Industrial, MRO, Metalworking, Point of Purchase, Print, Signage, Specialty Vehicles
Primary Liner Thickness (Imperial)3.9
Country of OriginPoland
Back Side Adhesive Thickness (Metric)0.095
Total Tape Thickness without Liner (Imperial)8.0
Minimum Operating Temperature (Fahrenheit)-40.0
Backing (Carrier) Thickness (Metric)0.012
Overall Length (Imperial)54.7
Maximum Operating Temperature (Celsius)149.0
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)0.47
Primary Liner ColorWhite
Primary Liner Thickness (Metric) UOMmm
Overall Length (Metric) UOMm
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)50.0
Product ColorTransparent
Maximum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius)-40.0
Overall Width (Imperial)1.97
Total Tape Thickness without Liner (Imperial) UOMmil
Primary Liner Thickness (Metric)0.1
Primary Liner Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Face Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) MaterialPET
Face Side Adhesive Thickness (Metric)0.095
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Adhesive TypeModified Acrylic
Back Side Adhesive Thickness (Imperial)3.75
Back Side Adhesive Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Face Side Adhesive Thickness (Imperial)3.75
Back Side Adhesive Thickness (Metric) UOMmm
ApplicationAssembling; Attaching; Bonding; High Strength Adhesion; High Tack Adhesion; Holding; Joining; Laminating; Mounting; Splicing; Tabbing
Indoor/OutdoorIndoor/Outdoor
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Metric) UOMmm
