3M Products & Supplies

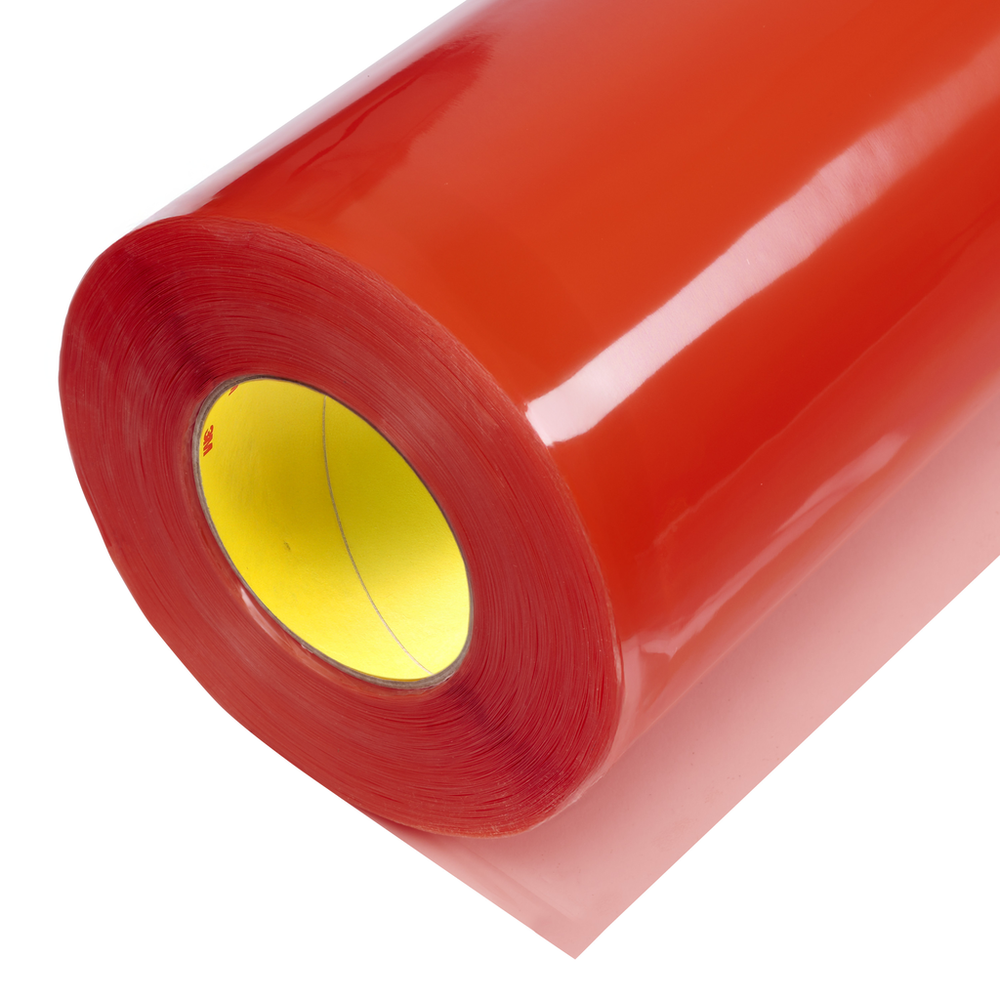

3M™ Double Coated Tape GPT-020TF, Red Film Liner, 1540 mm x 50 m, 1 Roll/Case - 7100363413

SKU: 7100363413
MPN: 7100363413
For an accurate lead time please contact us
UPC: 00068060759641
3M ID: UU013480916
$987.99 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape GPT-020TF is an 8 mil (200 micron), high-tack, pressure-sensitive adhesive tape with an unbranded, translucent red, 3.1 mil (80 micron) polypropylene liner. Ideal for automated processes and easy to convert due to the flexibility of the film, it bonds to a variety of high to low-surface energy materials, such as glass and stainless steel, while providing excellent humidity resistance. Combining a high level of peel and shear performance this general-use tape allows for high-temperature applications up to 300 °F (149 °C) in short-term operations and up to 200 °F (93 °C) for long-term use. 3M™ Double Coated Tape GPT-020TF is suited for a wide range of purposes, including point-of-purchase displays, indoor and outdoor signage bonding, billboard mounting, paper bonding and packaging, splicing, furniture and decorative trim adhesion, and many more.

Features

  • PRODUCT OPTIONS: Available in standard roll format (1540 mm wide in either 50 m or 500 m lengths) and level wound rolls (6 mm, 9 mm, 12 mm, and 19 mm)
  • MULTIPURPOSE: Works across many applications, including point-of-purchase displays, indoor and outdoor signage bonding, billboard mounting, furniture assembly, and more
  • HIGH INITIAL TACK: Made with a strong adhesive that sticks to high and low surface energy materials
  • HANDLES HIGH TEMPERATURES: Suitable for short-term use at temperatures up to 300 °F (149 °C) or long-term use withstanding up to 200 °F (93 °C)
  • FLEXIBLE AND STRONG: An 8 mil (200 micron) thick double-coated tape with an unbranded, translucent red, 3.1 mil (80 micron) polypropylene liner
Spec Sheet



Downloads

Specifications

Shelf Life547
Primary Liner Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)8.0
Backing (Carrier) Thickness (Metric) UOMmm
Product ColorTransparent
ApplicationAssembling; Attaching; Bonding; High Strength Adhesion; High Tack Adhesion; Holding; Joining; Laminating; Mounting; Splicing; Tabbing
Primary Liner Thickness (Metric)0.08
Overall Length (Metric)50.0
Overall Width (Imperial) UOMin
Back Side Adhesive Thickness (Metric)0.095
Adhesive TypeModified Acrylic
Indoor/OutdoorIndoor/Outdoor
Face Side Adhesive Thickness (Imperial)3.75
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Back Side Adhesive Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit)300.0
Country of OriginPoland
Maximum Operating Temperature (Celsius)149.0
Backing (Carrier) MaterialPET
Face Side Adhesive Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial)3.75
Face Side Adhesive Thickness (Metric)0.095
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)-40.0
Back Side Adhesive Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Metric) UOMmm
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)-40.0
Primary Liner Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.012
Primary Liner Thickness (Imperial)3.1
Overall Width (Metric)1540.0
Overall Length (Imperial)54.7
Backing (Carrier) Thickness (Imperial)0.47
Shelf Life UOMMonth
Units per Case1.0
IndustriesAppliance, Converter Solutions, Craft, General Industrial, MRO, Metalworking, Point of Purchase, Print, Signage, Specialty Vehicles
Overall Width (Imperial)60.6
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric)0.2
Overall Length (Metric) UOMm
Maximum Operating Temperature (Celsius) UOMDegree
