3M Products & Supplies

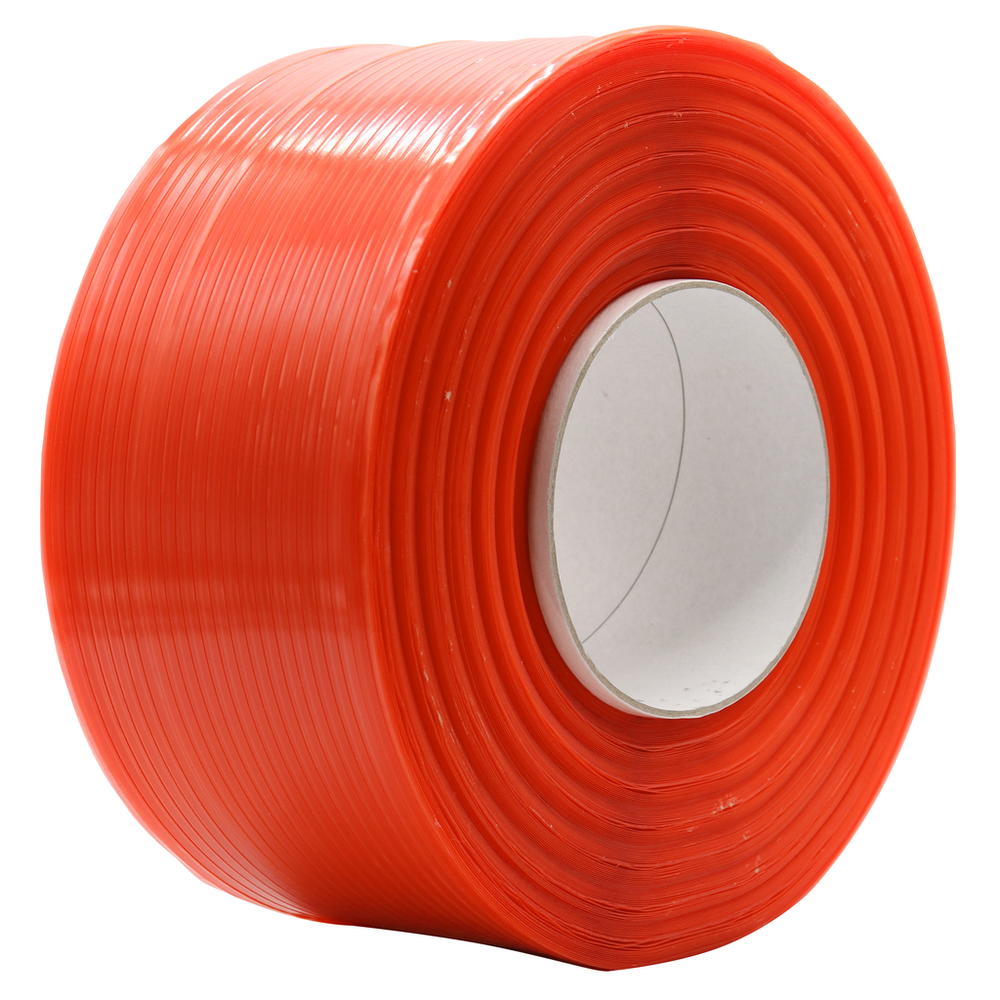

3M™ Double Coated Tape GPT-020TF, Red Film Liner, Level Wound, 6 mm x 5000 m, 1 Roll/Case - 7100369500

SKU: 7100369500
MPN: 7100369500
Stock Item: Stock items typically ship within 2-3 business days
UPC: 04064035193041
3M ID: UU013568173
$448.50 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape GPT-020TF is an 8 mil (200 micron), high-tack, pressure-sensitive adhesive tape with an unbranded, translucent red, 3.1 mil (80 micron) polypropylene liner. Ideal for automated processes and easy to convert due to the flexibility of the film, it bonds to a variety of high to low-surface energy materials, such as glass and stainless steel, while providing excellent humidity resistance. Combining a high level of peel and shear performance this general-use tape allows for high-temperature applications up to 300 °F (149 °C) in short-term operations and up to 200 °F (93 °C) for long-term use. 3M™ Double Coated Tape GPT-020TF is suited for a wide range of purposes, including point-of-purchase displays, indoor and outdoor signage bonding, billboard mounting, paper bonding and packaging, splicing, furniture and decorative trim adhesion, and many more.

Features

  • HANDLES HIGH TEMPERATURES: Suitable for short-term use at temperatures up to 300 °F (149 °C) or long-term use withstanding up to 200 °F (93 °C)
  • PRODUCT OPTIONS: Available in standard roll format (1540 mm wide in either 50 m or 500 m lengths) and level wound rolls (6 mm, 9 mm, 12 mm, and 19 mm)
  • FLEXIBLE AND STRONG: An 8 mil (200 micron) thick double-coated tape with an unbranded, translucent red, 3.1 mil (80 micron) polypropylene liner
  • HIGH INITIAL TACK: Made with a strong adhesive that sticks to high and low surface energy materials
  • MULTIPURPOSE: Works across many applications, including point-of-purchase displays, indoor and outdoor signage bonding, billboard mounting, furniture assembly, and more
Spec Sheet



Downloads

Specifications

Shelf Life547
Shelf Life UOMMonth
Overall Width (Metric)6.0
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial)0.24
Units per Case1.0
Back Side Adhesive Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Imperial)3.75
Primary Liner Thickness (Imperial)3.1
Back Side Adhesive Thickness (Metric)0.095
Back Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius)-40.0
Indoor/OutdoorIndoor/Outdoor
Minimum Operating Temperature (Fahrenheit)-40.0
Primary Liner Thickness (Metric)0.08
Primary Liner Thickness (Metric) UOMmm
Overall Length (Imperial)5468.0
Primary Liner Thickness (Imperial) UOMmil
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)300.0
Product ColorTransparent
Total Tape Thickness without Liner (Metric)0.2
Face Side Adhesive Thickness (Metric) UOMmm
Overall Length (Metric) UOMm
Overall Length (Metric)5000.0
Total Tape Thickness without Liner (Imperial)8.0
Maximum Operating Temperature (Celsius)149.0
Minimum Operating Temperature (Celsius) UOMDegree
Face Side Adhesive Thickness (Metric)0.095
Face Side Adhesive Thickness (Imperial)3.75
Country of OriginPoland
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.012
IndustriesAppliance, Converter Solutions, Craft, General Industrial, MRO, Metalworking, Point of Purchase, Print, Signage, Specialty Vehicles
ApplicationAssembling; Attaching; Bonding; High Strength Adhesion; High Tack Adhesion; Holding; Joining; Laminating; Mounting; Splicing; Tabbing
Face Side Adhesive Thickness (Imperial) UOMmil
Adhesive TypeModified Acrylic
Backing (Carrier) MaterialPET
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Imperial)0.47
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
