3M Products & Supplies

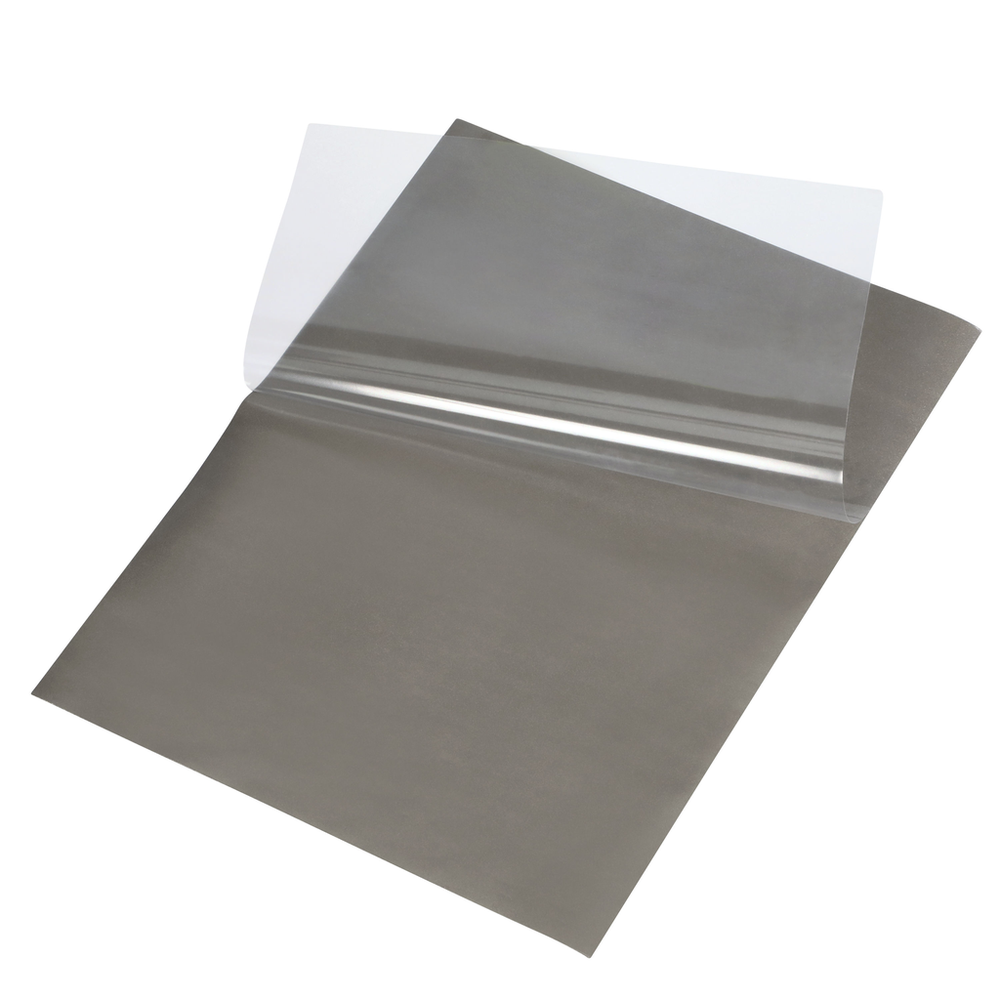

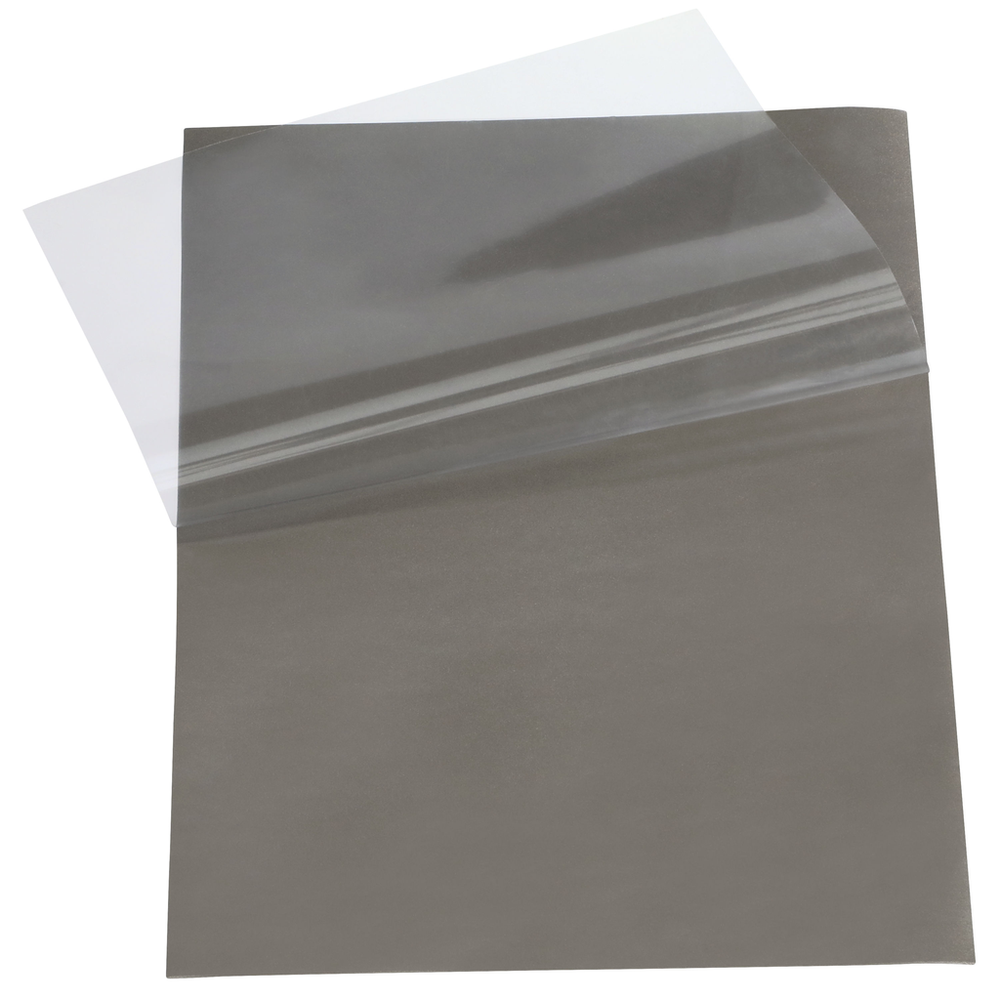

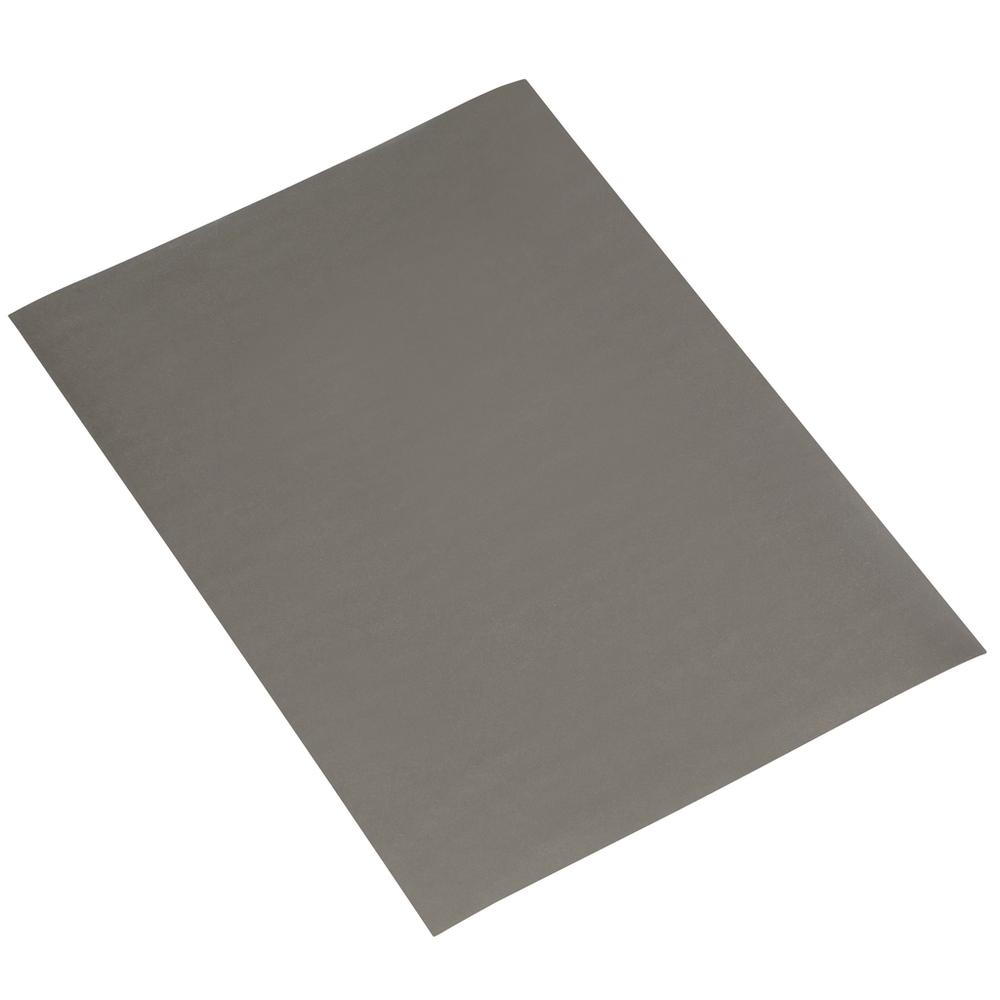

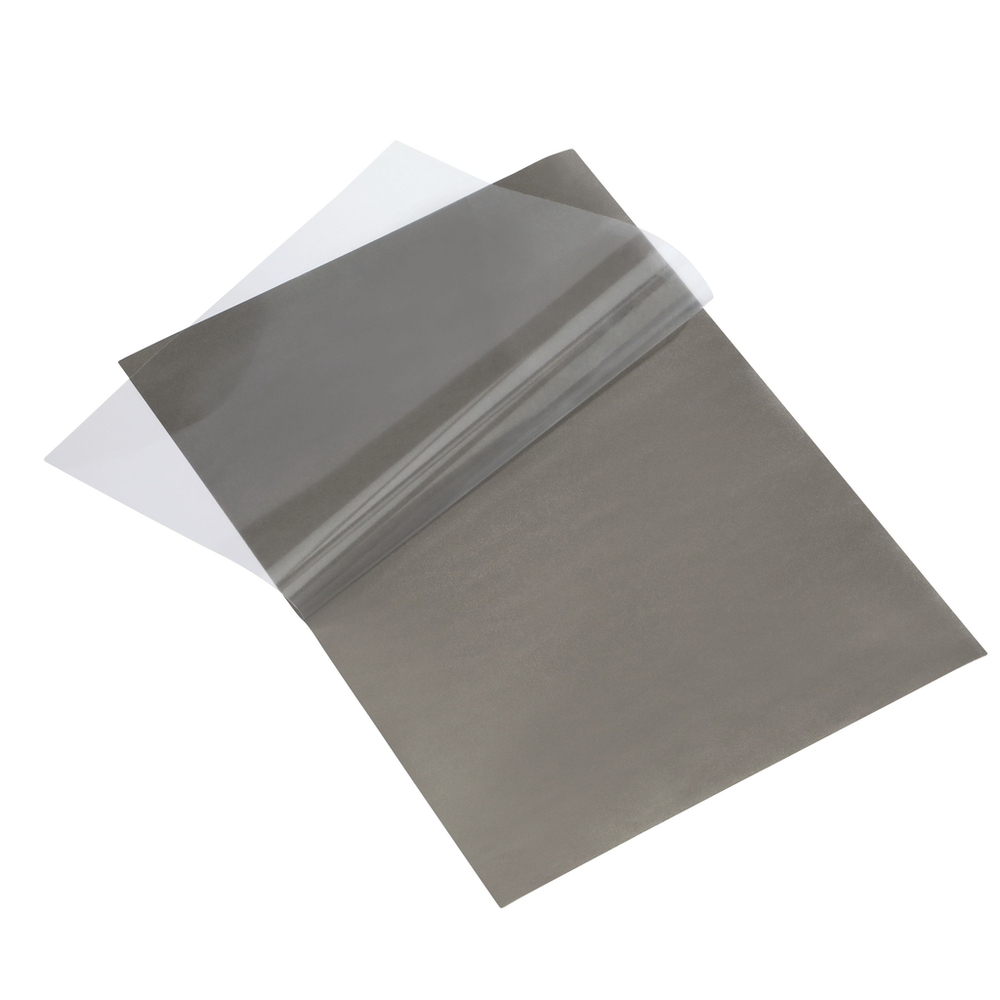

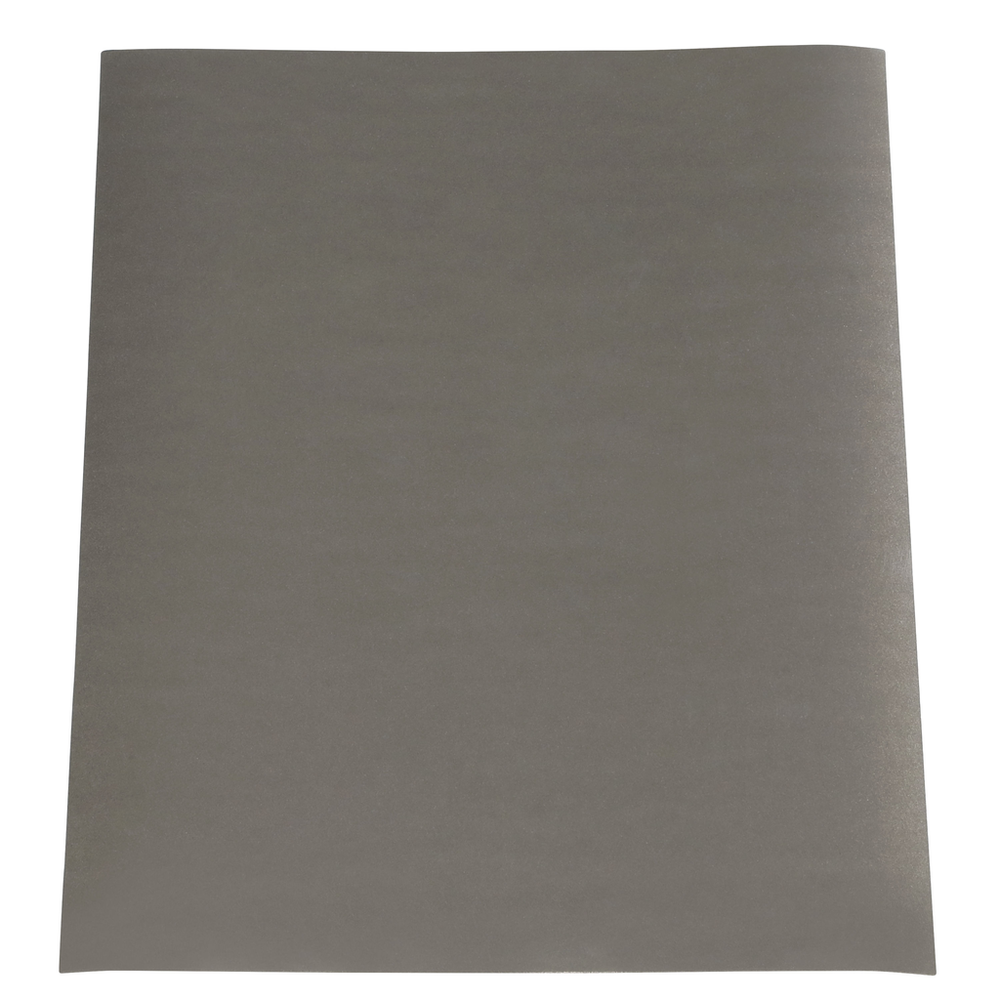

3M™ Electrically Conductive Gasket Tape MSG7060SDX, 500 mm X 50 m, 1 Roll/Case - 7100380876

SKU: 7100380876
MPN: 7100380876
Made to Order: For a lead time estimate, please send your request to [email protected]
3M ID: XP003859764
$2,781.47 each
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Gasket Tape MSG7000SDX Series is a highly compressible gasket material that combines foam, fabric and adhesive for consistent and reliable conductivity even in dense or complex electrical systems. It is ideal for gap filling, ESD grounding, close conductive enclosures and for applications requiring excellent EMI shielding performance even through the bond lines. 3M tape MSG7000SDX series provides very low contact resistance even at very small die cut sizes.

Features

  • Highly compressible foam construction for wide range of gap filling
  • Foam is laminated with conductive fabric carrier for conformability and stability
  • Halogen free*
  • Extremely low resistance with a small die cut size
  • Conductive pressure-sensitive adhesive provides reliable mechanical bond
Spec Sheet



Downloads

Specifications

Adhesive TypeAcrylic
Overall Length (Metric)50.0
Overall Width (Metric) UOMmm
Overall Width (Imperial)19.69
Overall Width (Imperial) UOMin
MaterialConductive Polyurethane Foam
Backing MaterialConductive Fabric
Overall Length (Imperial)54.68
Country of OriginChina
Overall Length (Metric) UOMm
Product ColorGray
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)0.6
Total Tape Thickness without Liner (Imperial)23.6
