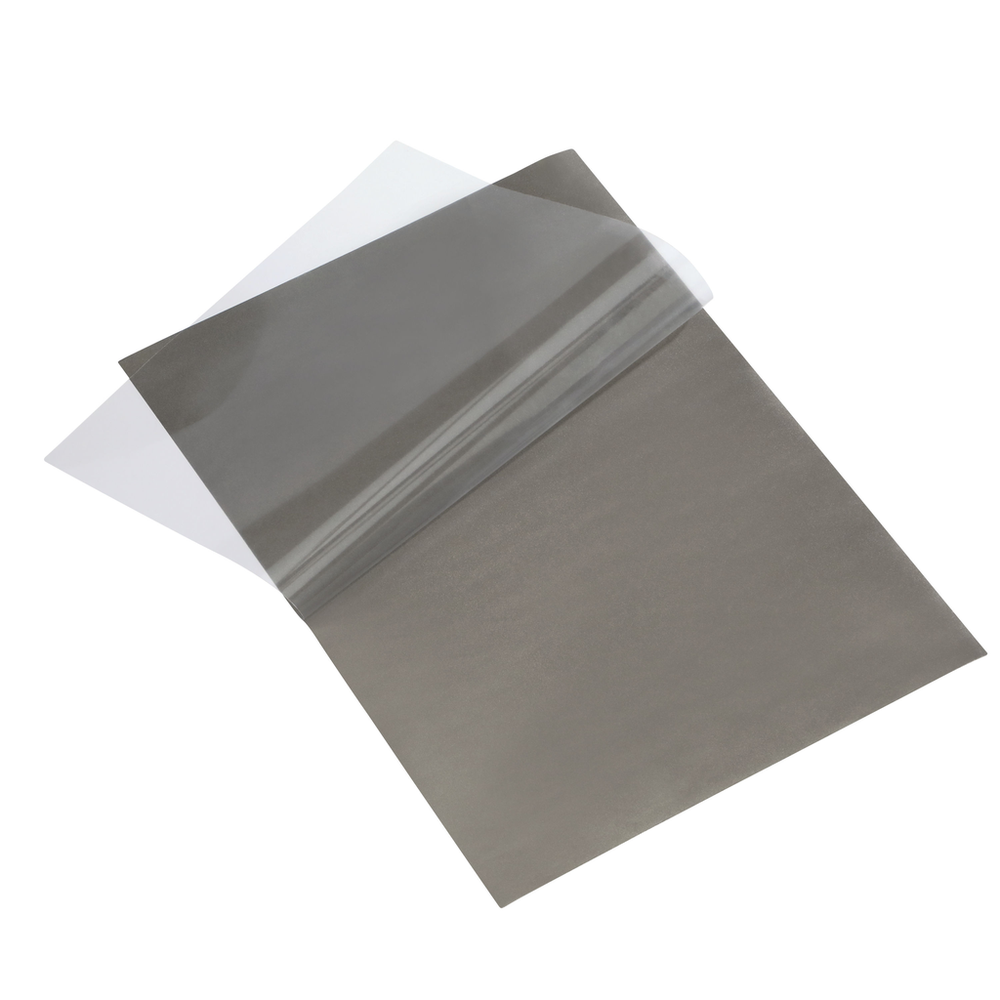

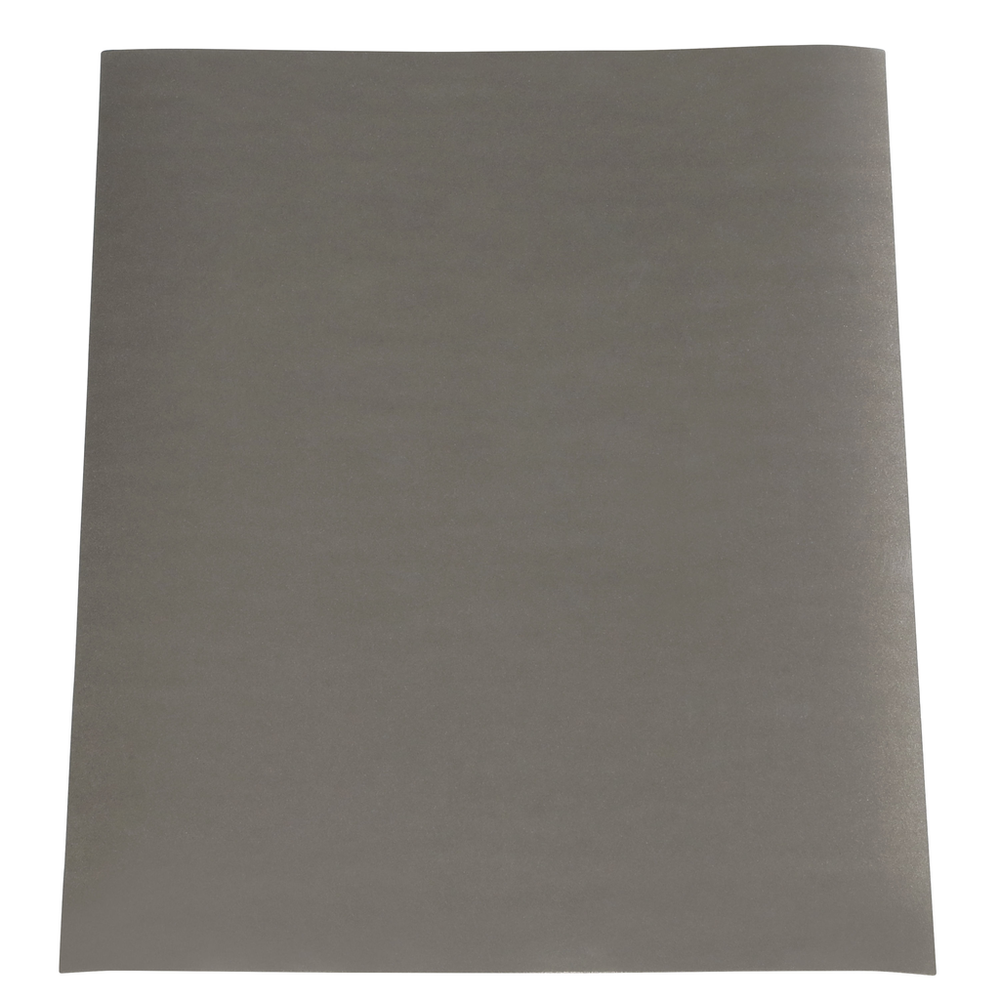

3M™ Electrically Conductive Gasket Tape MSG7200SDX, 500 mm X 40 m, 1 Roll/Case - 7100380881

SKU: 7100380881
MPN: 7100380881
Made to Order: For a lead time estimate, please send your request to [email protected]
3M ID: XP003859715
$2,688.76 each
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Gasket Tape MSG7000SDX Series is a highly compressible gasket material that combines foam, fabric and adhesive for consistent and reliable conductivity even in dense or complex electrical systems. It is ideal for gap filling, ESD grounding, close conductive enclosures and for applications requiring excellent EMI shielding performance even through the bond lines. 3M tape MSG7000SDX series provides very low contact resistance even at very small die cut sizes.

Features

  • Highly compressible foam construction for wide range of gap filling
  • Extremely low resistance with a small die cut size
  • Conductive pressure-sensitive adhesive provides reliable mechanical bond
  • Halogen free*
  • Foam is laminated with conductive fabric carrier for conformability and stability
Spec Sheet



Downloads

Specifications

Overall Width (Imperial)19.69
Country of OriginChina
Product ColorGray
Overall Width (Imperial) UOMin
Overall Width (Metric)500.0
Total Tape Thickness without Liner (Imperial)78.7
Backing MaterialConductive Fabric
Adhesive TypeAcrylic
MaterialConductive Polyurethane Foam
Overall Width (Metric) UOMmm
Overall Length (Metric) UOMm
Overall Length (Metric)40.0
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial)43.74
Total Tape Thickness without Liner (Metric)2.0
