3M Products & Supplies

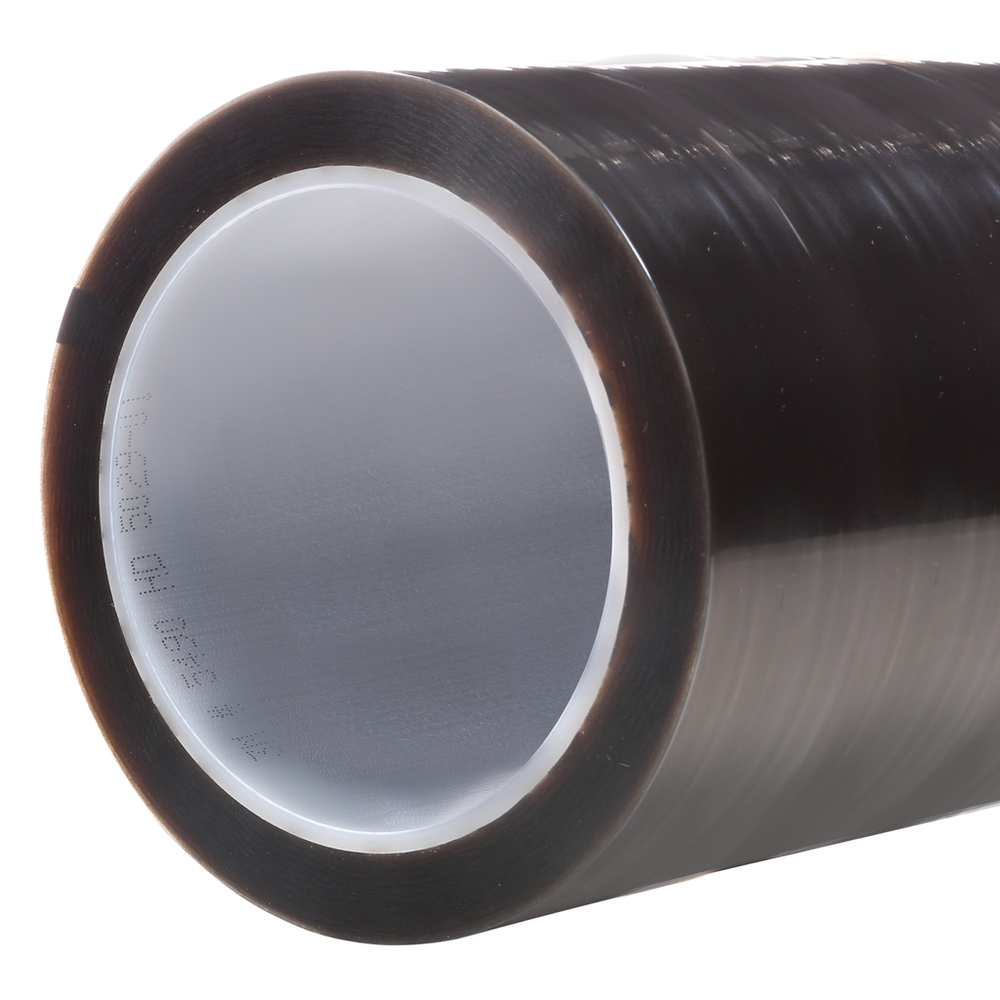

3M™ PTFE Film Tape 5490, Brown, 14 in x 36 yd, 3.7 mil, 1 Roll/Case - 7000001208

SKU: 7000001208
MPN: 7000001208
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200735684
3M ID: 70006197597
5 Digit UPC: 73568
$2,183.59 each
Hurry up! Current stock:

Product Description

3M™ PTFE Film Tape 5490 uses an extruded polytetrafluoroethylene (PTFE) film backing. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a smooth, non-stick surface over a variety of substrates to assist in the movement of materials in many types of lay-flat applications.

Features

  • Non-stick PTFE film provides an exceptionally slick surface for easy clean-up
  • High strength and abrasion resistance ensures reliability and performance to reduce friction, rattle and machinery noise
  • Extruded 3M™ PTFE Film Tape lies flatter than typical skived PTFE film tapes
  • Wide temperature range for performance on heated machinery and equipment
  • Silicone adhesive provides clean removal from a variety of surfaces
  • Excellent chemical resistance enables tape to withstand challenging applications
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Metric)355.6
Tensile Strength (Imperial) UOMlb/in
Overall Width (Imperial)14.0
Units per Case1.0
ApplicationVibration Damping
Total Tape Thickness without Liner (Metric) UOMmm
Tensile Strength (Metric)30.4
Overall Length (Imperial)36.0
Overall Width (Imperial) UOMin
Overall Width (Metric) UOMmm
Tensile Strength (Imperial)22.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
Adhesive TypeSilicone
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius)-54.0
Color NameBrown
Backing (Carrier) MaterialExtruded PTFE
Total Tape Thickness without Liner (Imperial)3.7
IndustriesAerospace
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)260.0
Maximum Operating Temperature (Fahrenheit)500.0
Overall Length (Metric)32.91
Tensile Strength (Metric) UOMN/100mm
Backing (Carrier) Thickness (Imperial)2.0
Product ColorBrown
Backing (Carrier) Thickness (Imperial) UOMmil
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit)-65.0
Backing (Carrier) Thickness (Metric)0.05
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)0.094
Units per Case UOMRoll
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Celsius) UOMDegree
