3M Products & Supplies

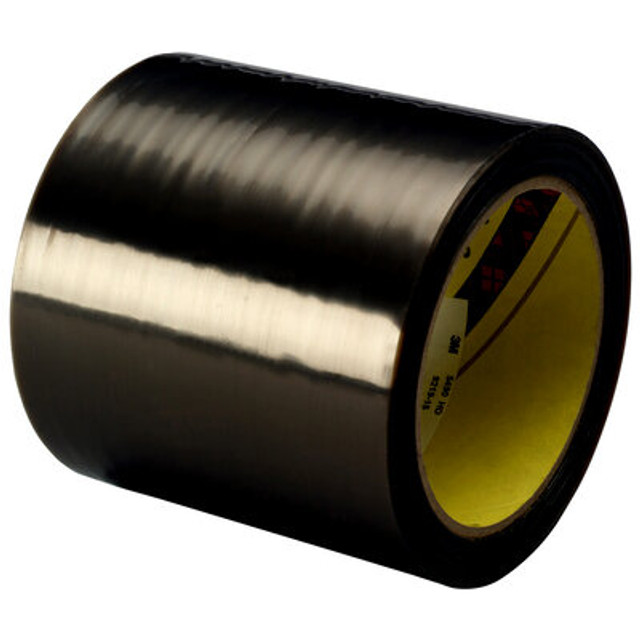

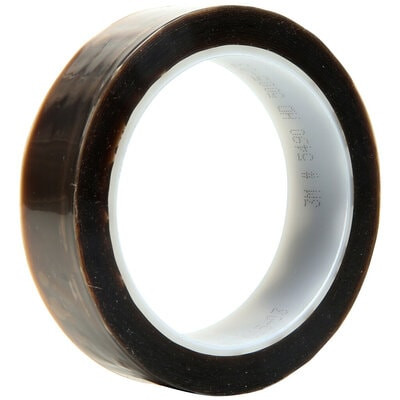

3M™ PTFE Film Tape 5490, Brown, 1 in x 36 yd, 3.7 mil, 9 Roll/Case - 7000050120

Sold As: 9-Pack
SKU: 7000050120
MPN: 7000050120
For an accurate lead time please contact us
UPC: 00021200072819
3M ID: 70016054226
5 Digit UPC: 7281
$1,403.73 ($155.97 / Count)
Hurry up! Current stock:

Product Description

3M™ PTFE Film Tape 5490 uses an extruded polytetrafluoroethylene (PTFE) film backing. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a smooth, non-stick surface over a variety of substrates to assist in the movement of materials in many types of lay-flat applications.

Features

  • Non-stick PTFE film provides an exceptionally slick surface for easy clean-up
  • High strength and abrasion resistance ensures reliability and performance to reduce friction, rattle and machinery noise
  • Excellent chemical resistance enables tape to withstand challenging applications
  • Extruded 3M™ PTFE Film Tape lies flatter than typical skived PTFE film tapes
  • Silicone adhesive provides clean removal from a variety of surfaces
  • Wide temperature range for performance on heated machinery and equipment
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Total Tape Thickness without Liner (Metric)0.09
Backing (Carrier) MaterialExtruded PTFE
Overall Length (Metric)32.9
Minimum Operating Temperature (Fahrenheit)-65.0
Overall Length (Imperial)36.0
Color NameBrown
Units per Case9.0
Units per Case UOMRoll
Overall Width (Metric)2.5
Adhesive TypeSilicone
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Imperial)1.0
Overall Width (Metric) UOMcm
ApplicationVibration Damping
Tensile Strength (Metric) UOMN/100mm
IndustriesAerospace
Tensile Strength (Imperial) UOMlb/in
Tensile Strength (Metric)30.4
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)260.0
Product ColorBrown
Overall Length (Metric) UOMm
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial)3.7
Backing (Carrier) Thickness (Metric)0.05
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit)500.0
Minimum Operating Temperature (Celsius)-54.0
Overall Length (Imperial) UOMyd
Tensile Strength (Imperial)22.0
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)2.0
