3M Products & Supplies

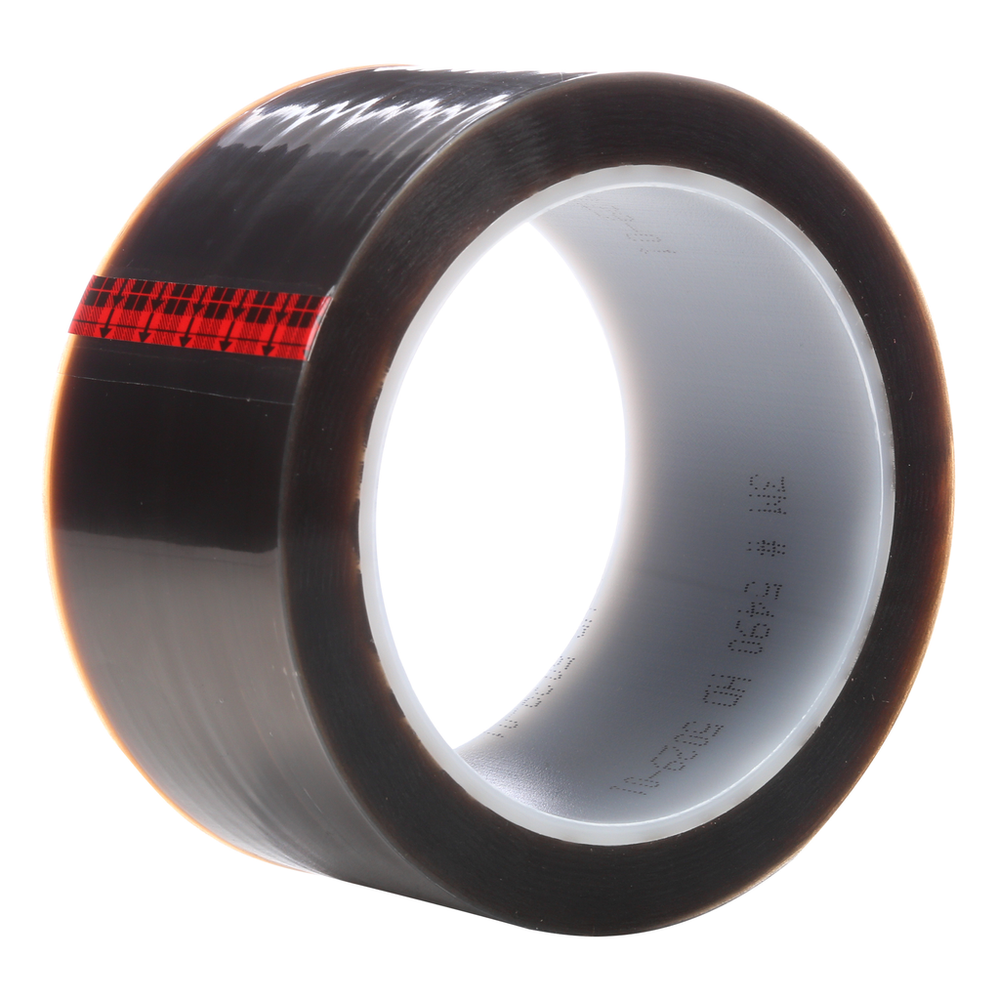

3M™ PTFE Film Tape 5490, Brown, 2 in x 36 yd, 3.7 mil, 6 Roll/Case - 7000050118

Sold As: 6-Pack
SKU: 7000050118
MPN: 7000050118
For an accurate lead time please contact us
UPC: 00021200072833
3M ID: 70016054192
5 Digit UPC: 7283
$1,871.65 ($311.94 / Count)
Hurry up! Current stock:

Product Description

3M™ PTFE Film Tape 5490 uses an extruded polytetrafluoroethylene (PTFE) film backing. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a smooth, non-stick surface over a variety of substrates to assist in the movement of materials in many types of lay-flat applications.

Features

  • Silicone adhesive provides clean removal from a variety of surfaces
  • High strength and abrasion resistance ensures reliability and performance to reduce friction, rattle and machinery noise
  • Non-stick PTFE film provides an exceptionally slick surface for easy clean-up
  • Extruded 3M™ PTFE Film Tape lies flatter than typical skived PTFE film tapes
  • Excellent chemical resistance enables tape to withstand challenging applications
  • Wide temperature range for performance on heated machinery and equipment
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial)36.0
Minimum Operating Temperature (Celsius)-54.0
Adhesive TypeSilicone
Total Tape Thickness without Liner (Metric) UOMmm
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Overall Length (Metric) UOMm
Tensile Strength (Metric) UOMN/100mm
Overall Width (Imperial)2.0
Total Tape Thickness without Liner (Imperial)3.7
IndustriesAerospace
Backing (Carrier) Thickness (Metric)0.05
Overall Width (Metric)5.1
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Imperial)22.0
Total Tape Thickness without Liner (Metric)0.09
Tensile Strength (Metric)30.4
Maximum Operating Temperature (Celsius)260.0
Backing (Carrier) Thickness (Metric) UOMmm
Units per Case UOMRoll
ApplicationVibration Damping
Overall Width (Metric) UOMcm
Color NameBrown
Units per Case6.0
Backing (Carrier) Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit)500.0
Backing (Carrier) Thickness (Imperial)2.0
Overall Length (Metric)32.9
Product ColorBrown
Minimum Operating Temperature (Fahrenheit)-65.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Imperial) UOMlb/in
Backing (Carrier) MaterialExtruded PTFE
