3M Products & Supplies

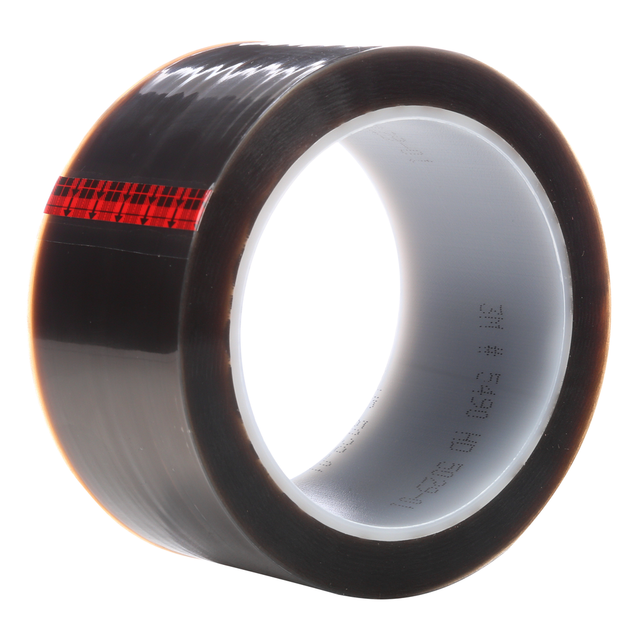

3M™ PTFE Film Tape 5490, Brown, 2 in x 36 yd, 3.7 mil, 6 Rolls/Case - 7000142887

Sold As: 6-Pack
SKU: 7000142887
MPN: 7000142887
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051131298262
3M ID: 70006381001
5 Digit UPC: 29826
$1,871.65 ($311.94 / Count)
Hurry up! Current stock:

Product Description

3M™ PTFE Film Tape 5490 uses an extruded polytetrafluoroethylene (PTFE) film backing. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a smooth, non-stick surface over a variety of substrates to assist in the movement of materials in many types of lay-flat applications.

Features

  • Wide temperature range for performance on heated machinery and equipment
  • Silicone adhesive provides clean removal from a variety of surfaces
  • High strength and abrasion resistance ensures reliability and performance to reduce friction, rattle and machinery noise
  • Non-stick PTFE film provides an exceptionally slick surface for easy clean-up
  • Excellent chemical resistance enables tape to withstand challenging applications
  • Extruded 3M™ PTFE Film Tape lies flatter than typical skived PTFE film tapes
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)260.0
Tensile Strength (Metric)30.4
Product ColorBrown
Tensile Strength (Imperial)22.0
ApplicationVibration Damping
Adhesive TypeSilicone
Overall Width (Imperial)2.0
Backing (Carrier) MaterialExtruded PTFE
Overall Length (Metric)32.9
Minimum Operating Temperature (Fahrenheit)-65.0
Total Tape Thickness without Liner (Imperial)3.7
Tensile Strength (Metric) UOMN/100mm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric)5.1
Minimum Operating Temperature (Celsius) UOMDegree
IndustriesAerospace
Backing (Carrier) Thickness (Imperial)2.0
Color NameBrown
Backing (Carrier) Thickness (Metric)0.05
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
Overall Width (Metric) UOMcm
Backing (Carrier) Thickness (Metric) UOMmm
Units per Case6.0
Maximum Operating Temperature (Fahrenheit)500.0
Backing (Carrier) Thickness (Imperial) UOMmil
Tensile Strength (Imperial) UOMlb/in
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)-54.0
Total Tape Thickness without Liner (Imperial) UOMmil
Units per Case UOMRoll
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric)0.09
Overall Length (Imperial)36.0
