40V max XGT® Brushless Cordless 4-Pc. Combo Kit (2.5Ah/4.0Ah) - GT400M1D1

The 40V max XGT® Brushless Cordless 4-Pc. Combo Kit (GT400M1D1) offers the products needed for demanding drilling, driving, and cutting applications. The Hammer Driver-Drill is powered by a Makita-built brushless motor that delivers 1,250 in.lbs. of Max Torque. It offers two speed settings (0-650 and 0-2,600 RPM and 0-9,750 and 0-39,000 BPM). The Impact Driver is also powered by a Makita-built brushless motor and delivers 1,950 in.lbs. of Max Torque. It has 4 speed settings (0-1,100/ 0-2,100/ 0-3,200/ 0-3,700 RPM & 0-1,100/ 0-2,600/ 0-3,600/ 0-4,400 IPM. The 7-1/4” Circular Saw delivers 6,000 RPM for high-speed cutting performance. It has a large cutting capacity of 2-5/8” at 90-degrees and will cut 3X dimensional lumber material in a single pass. The high-luminance 4 L.E.D. flashlight provides 160 lumens. It delivers up to 55 hours of continuous illumination on a single charge (when using the 40V max XGT 4.0Ah Battery). The tools in this combo kit are engineered to outlast with Extreme Protection Technology (XPT™) to provide increased dust and water resistance in harsh jobsite conditions. Reinforced gear housing provides additional durability on the job site. XGT is a system of equipment, tools, batteries and chargers utilizing 40V max lithium-ion batteries. XGT is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart and outlast the rest.

Features

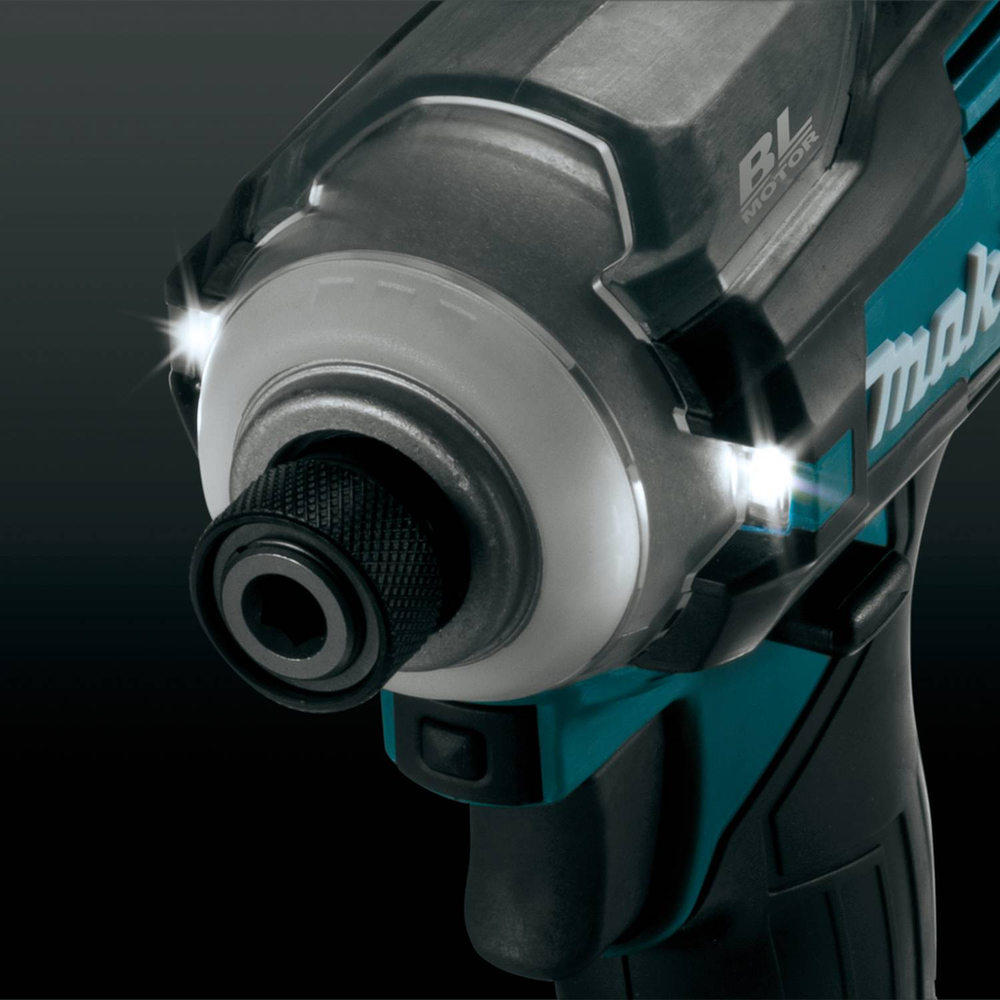

• IMPACT DRIVER - Makita-built brushless motor delivers 1,950 in.lbs. of Max Torque

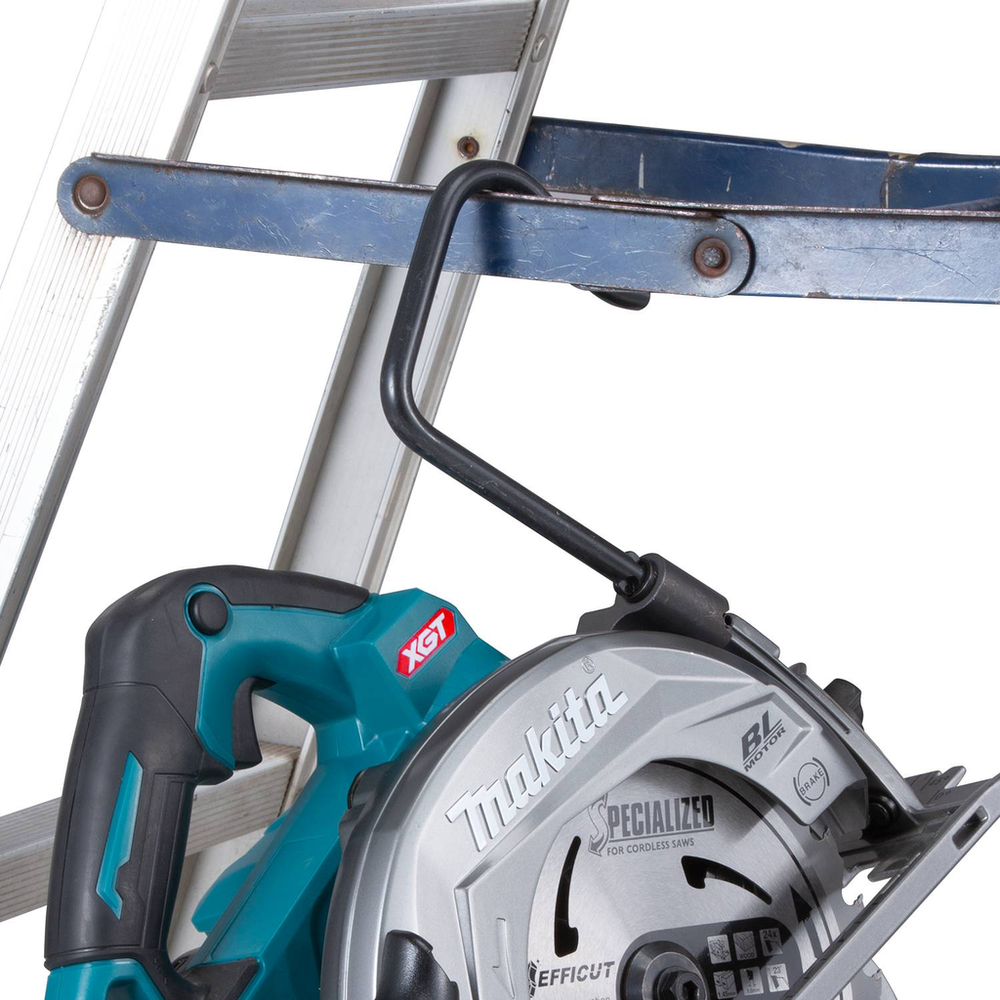

• 7-1/4" Circular Saw Makita-built brushless motor delivers 6,000 RPM for faster cutting and ripping; cuts 2-5/8" at 90°

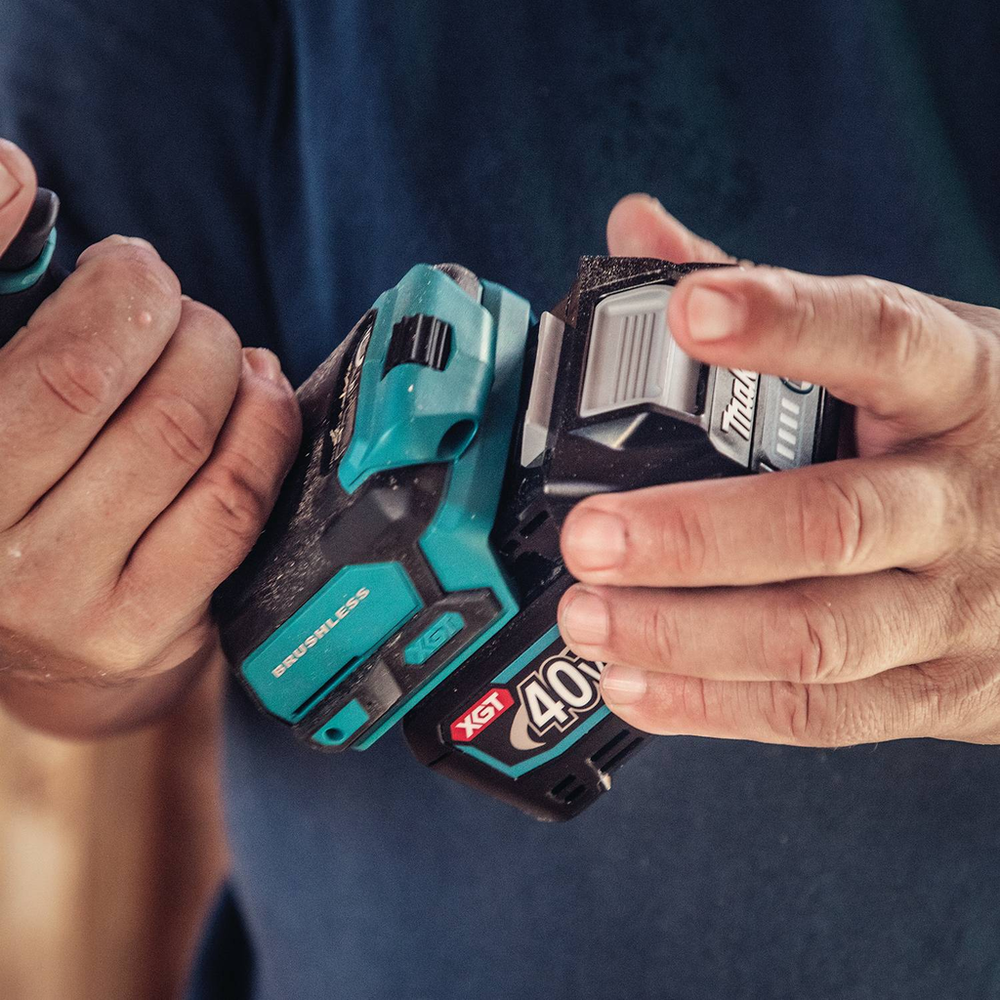

• XGT® Batteries feature rigid rails with impact-resistant construction to secure the battery to the tool during high-demand applications

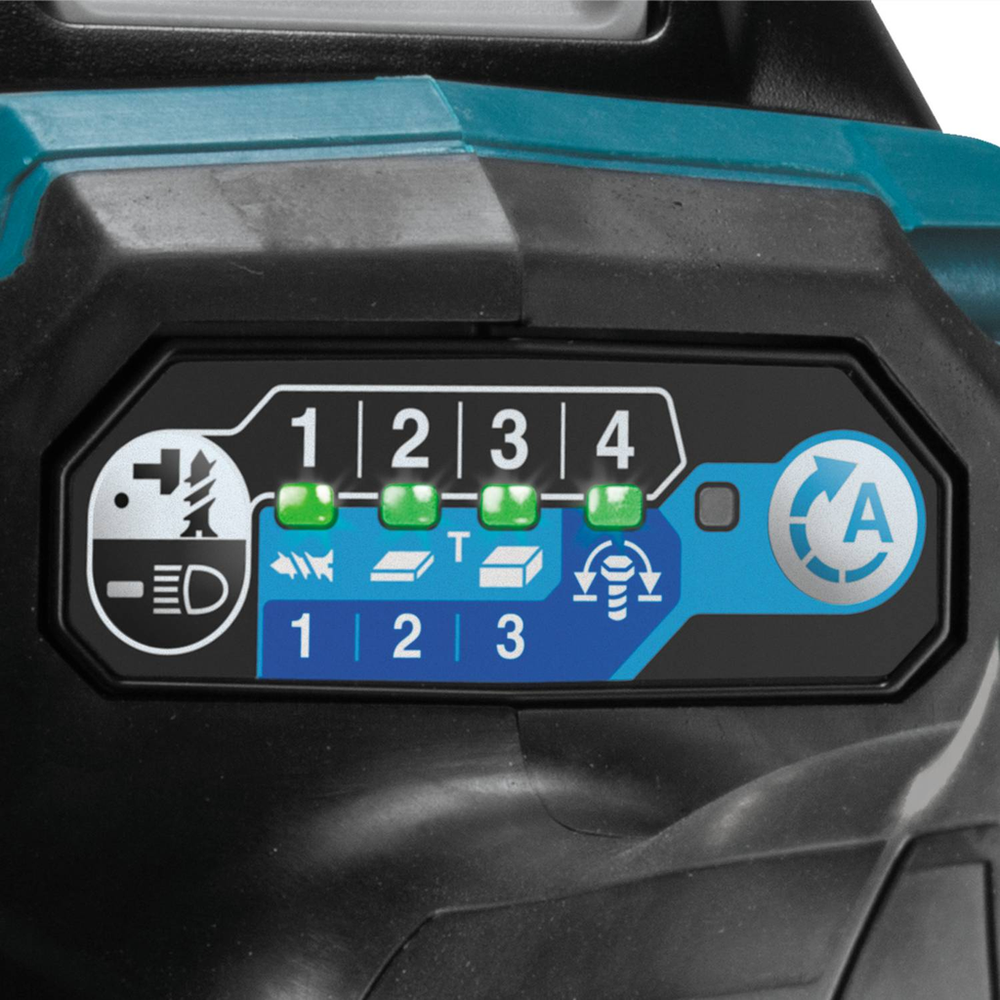

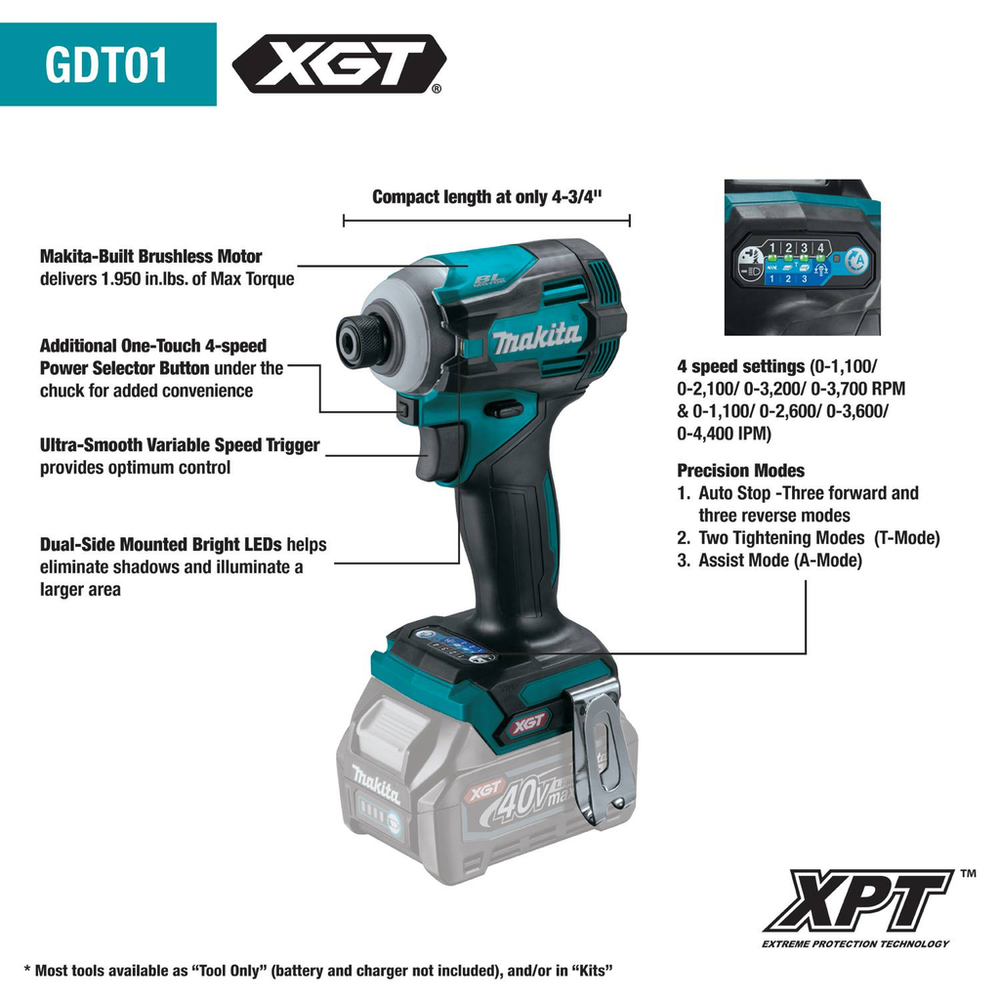

• Impact Driver features 4-speed power selection (0-1,100/ 0-2,100/ 0-3,200/ 0-3,700 RPM & 0-1,100/ 0-2,600/ 0-3,600/ 0-4,400 IPM) provides 1,950 in.lbs. of Max Torque
• HAMMER DRILL - Makita-built brushless motor delivers 1,250 in.lbs. of Max Torque
• XGT® Tools and Batteries are designed with a multi-layer contact interface for more constant power delivery to take on high-current demands

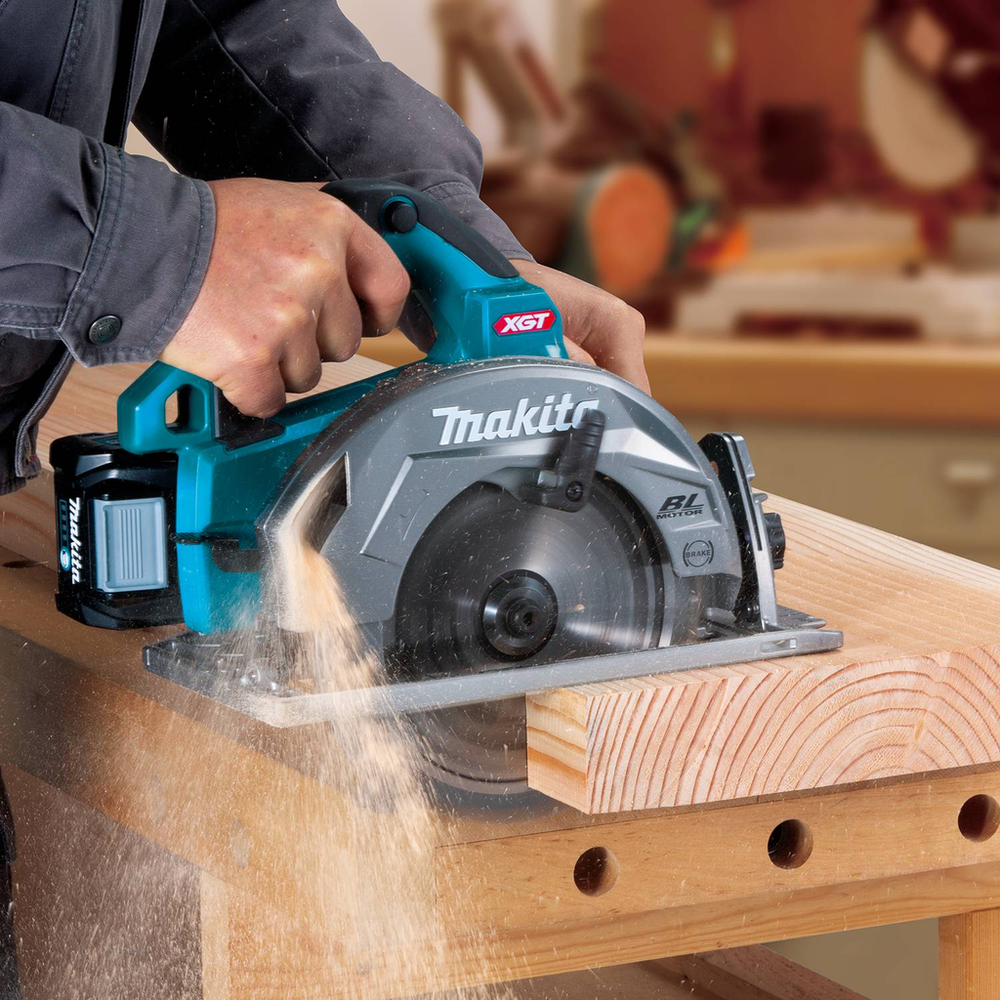

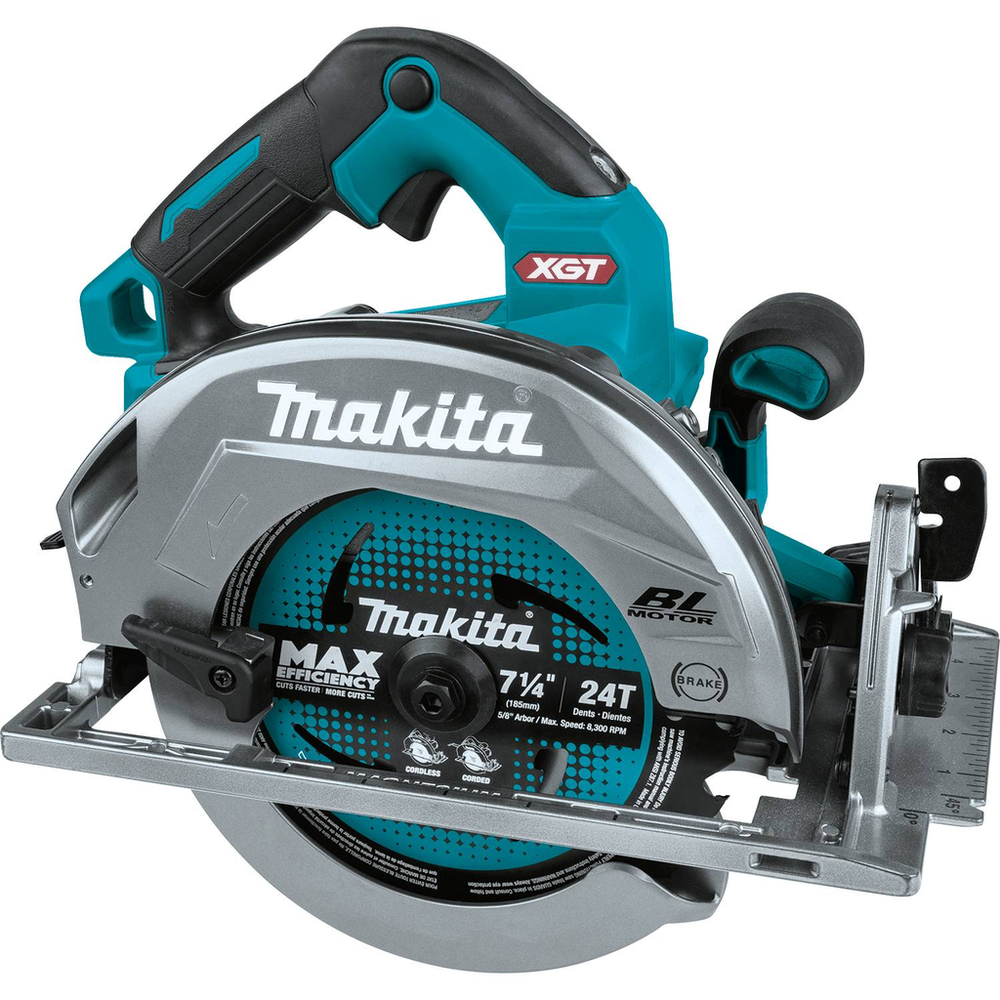

• 40V max XGT® Brushless 7-1/4" Circular Saw, AWS® Capable (GSH01Z)
• 40V max XGT® 4.0Ah battery reaches a full charge in only 45 minutes

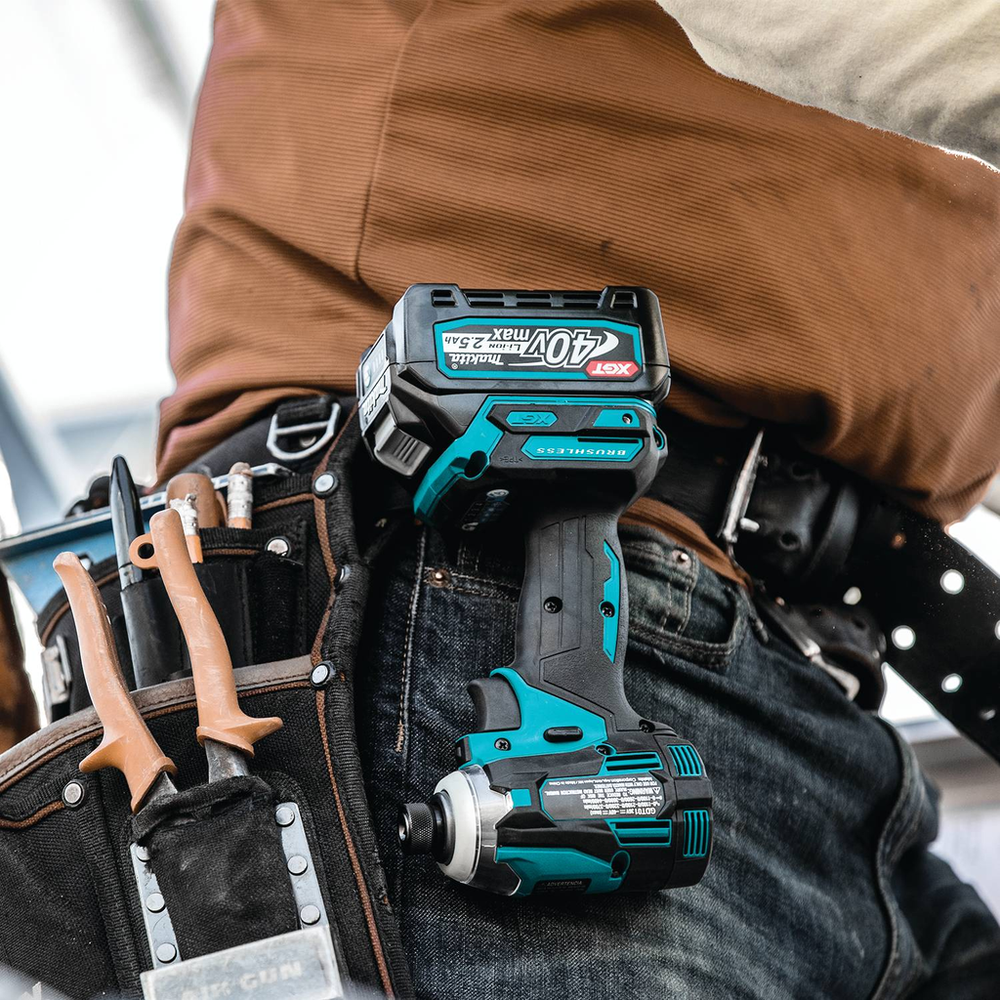

• 40V max XGT® Brushless 4-Speed Impact Driver (GDT01Z)

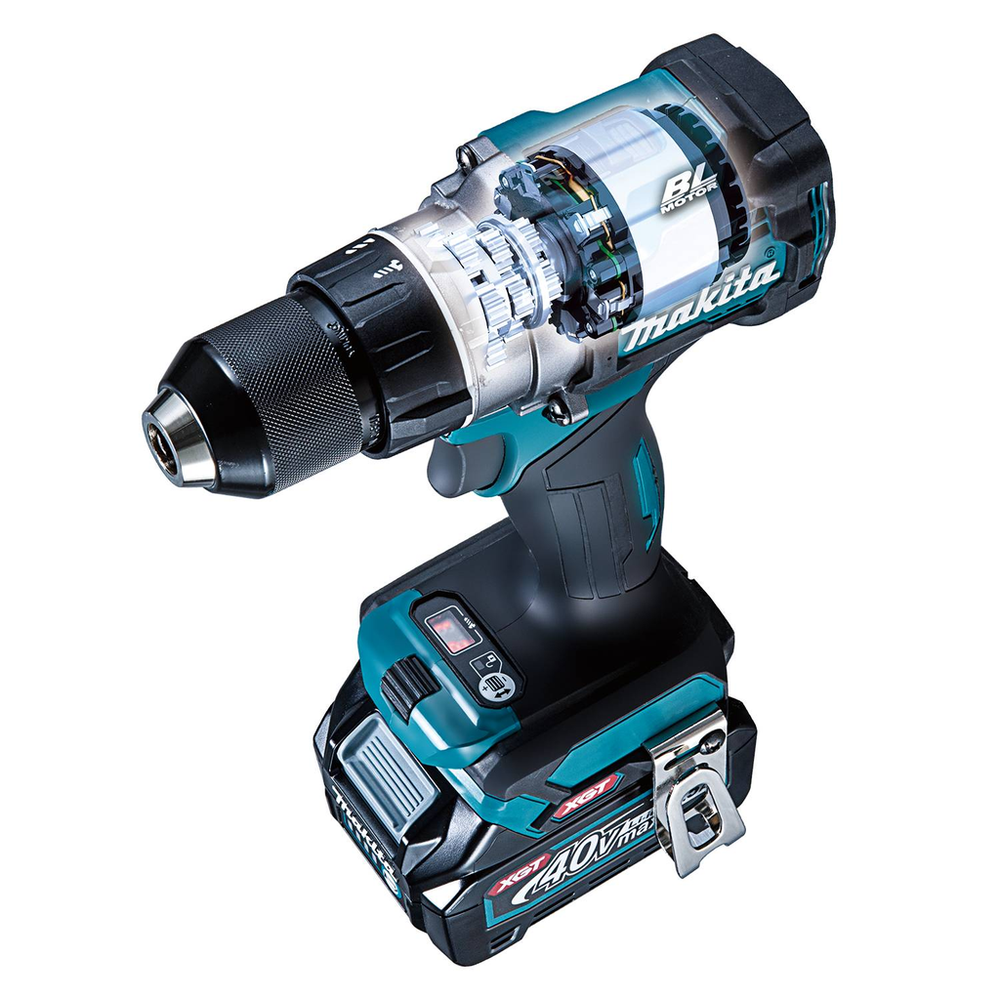

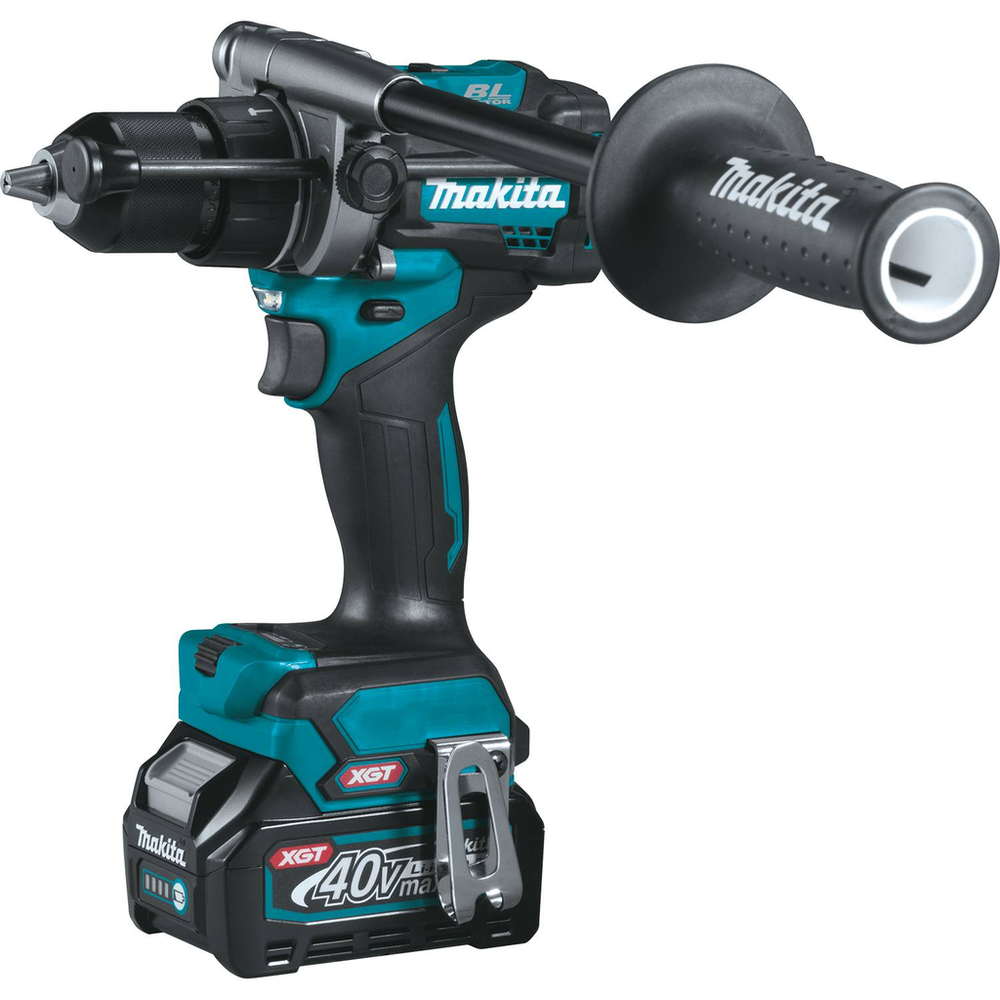

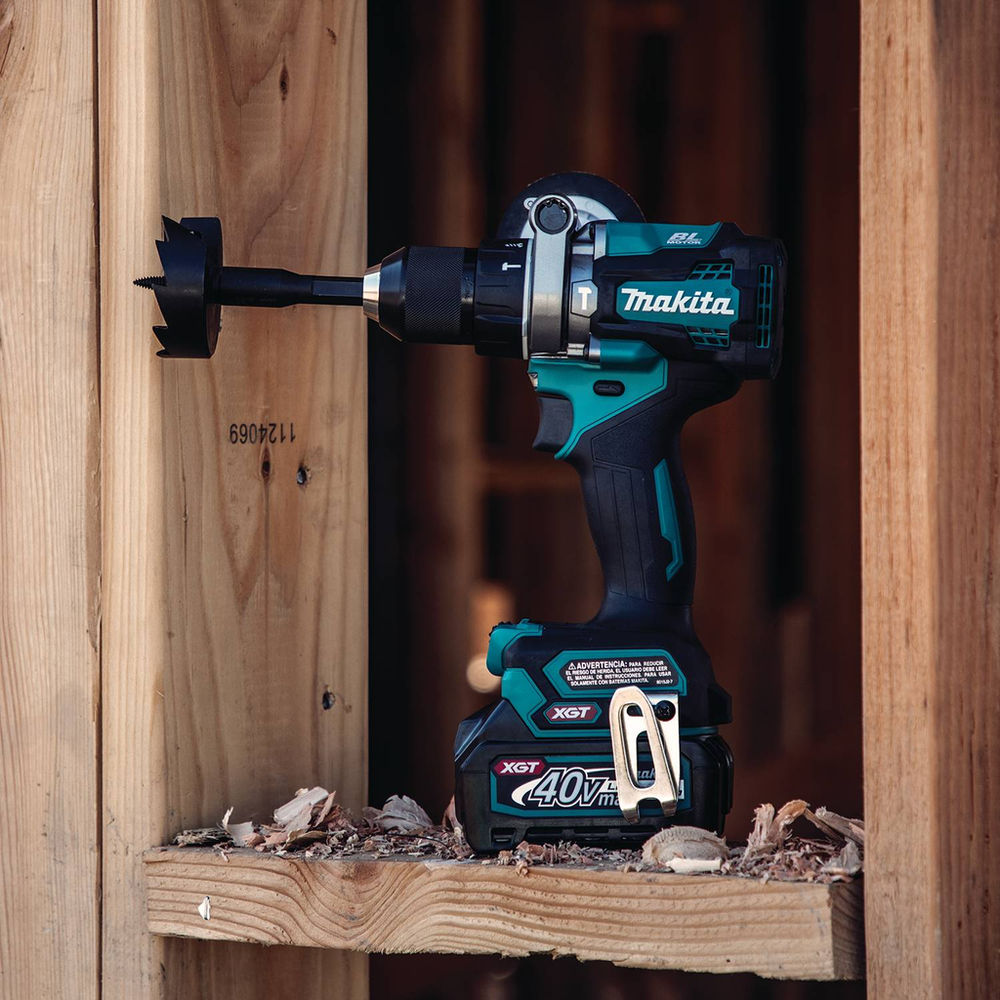

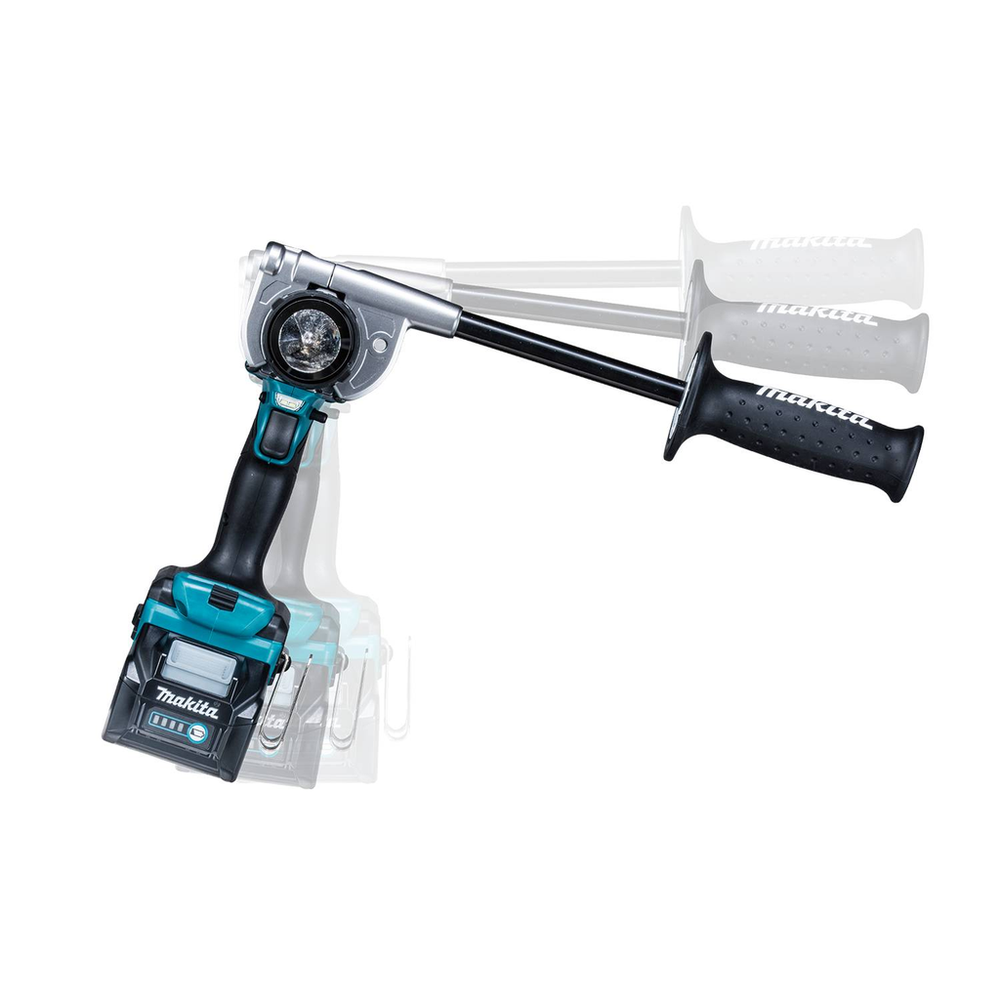

• 40V max XGT® Brushless 1/2" Hammer Driver-Drill (GPH01Z)

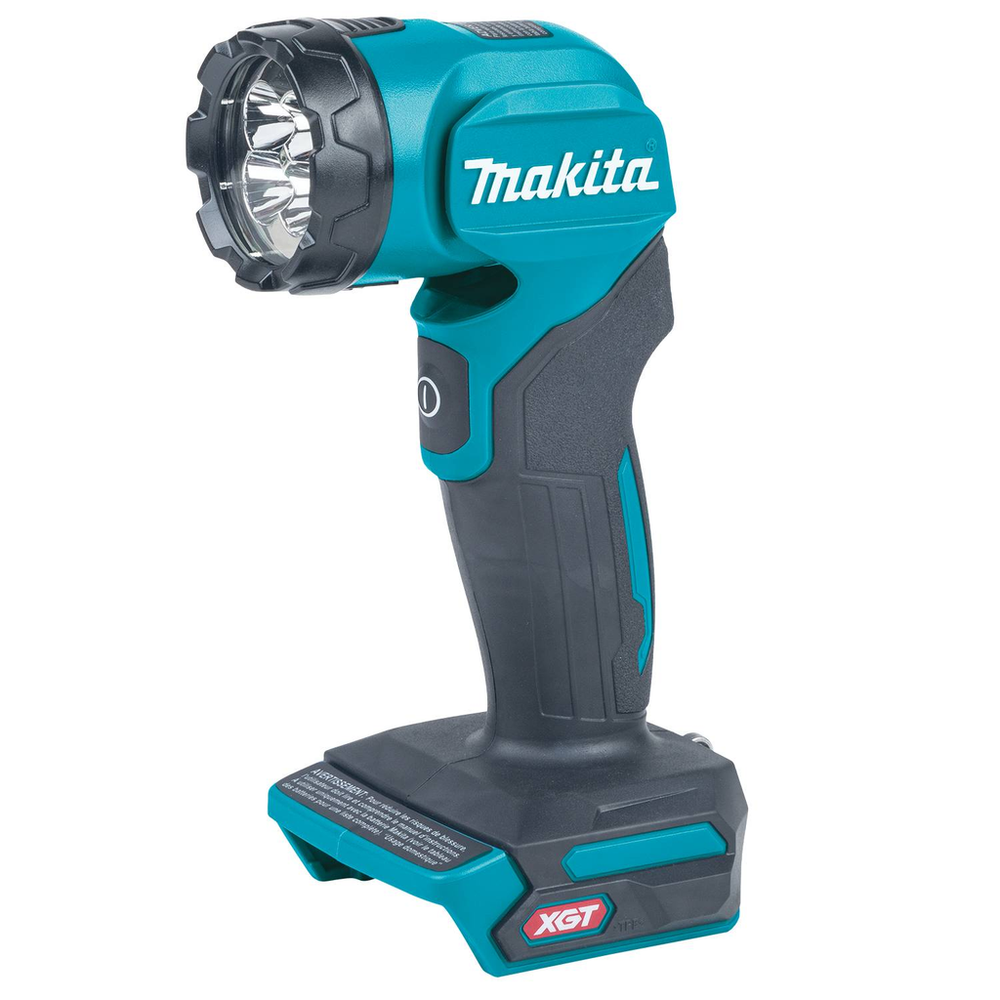

• 40V max XGT® Cordless L.E.D. Flashlight (ML001G)
• The digital communication within XGT® actively monitors and protects against overload, over-discharge and overheating
• Tool Bag

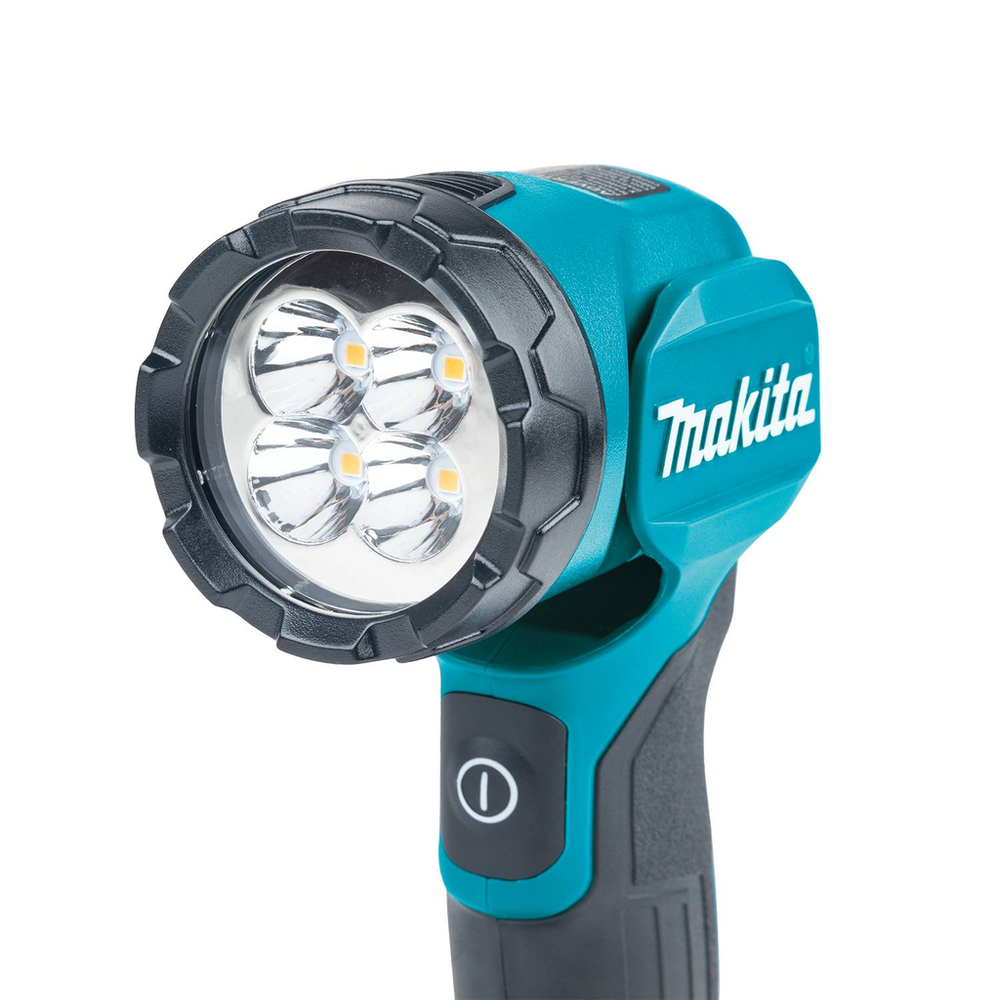

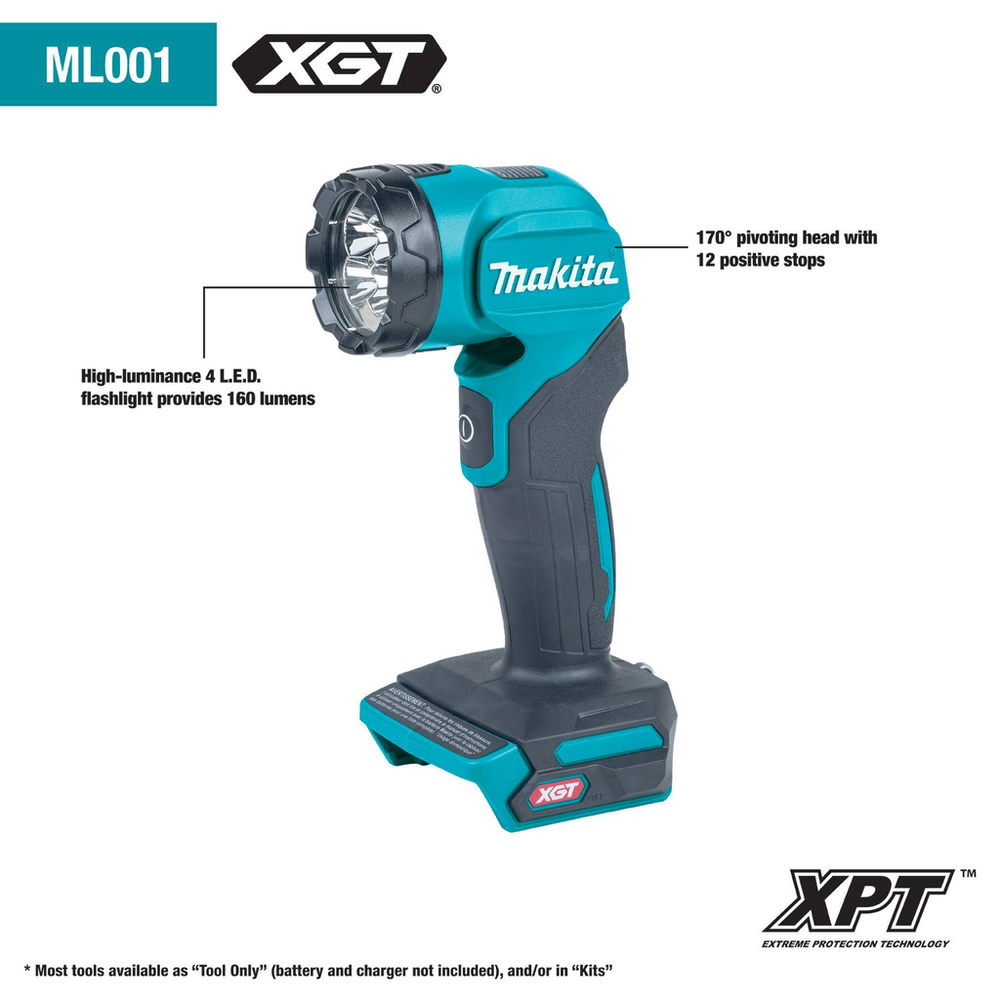

• High-luminance 4 L.E.D. flashlight provides 160 lumens
• FLASHLIGHT - High-luminance 4 L.E.D. flashlight provides 160 lumens
• The XGT® Rapid Charger’s digital display indicates battery charge level (-80%, +80%, 100%)

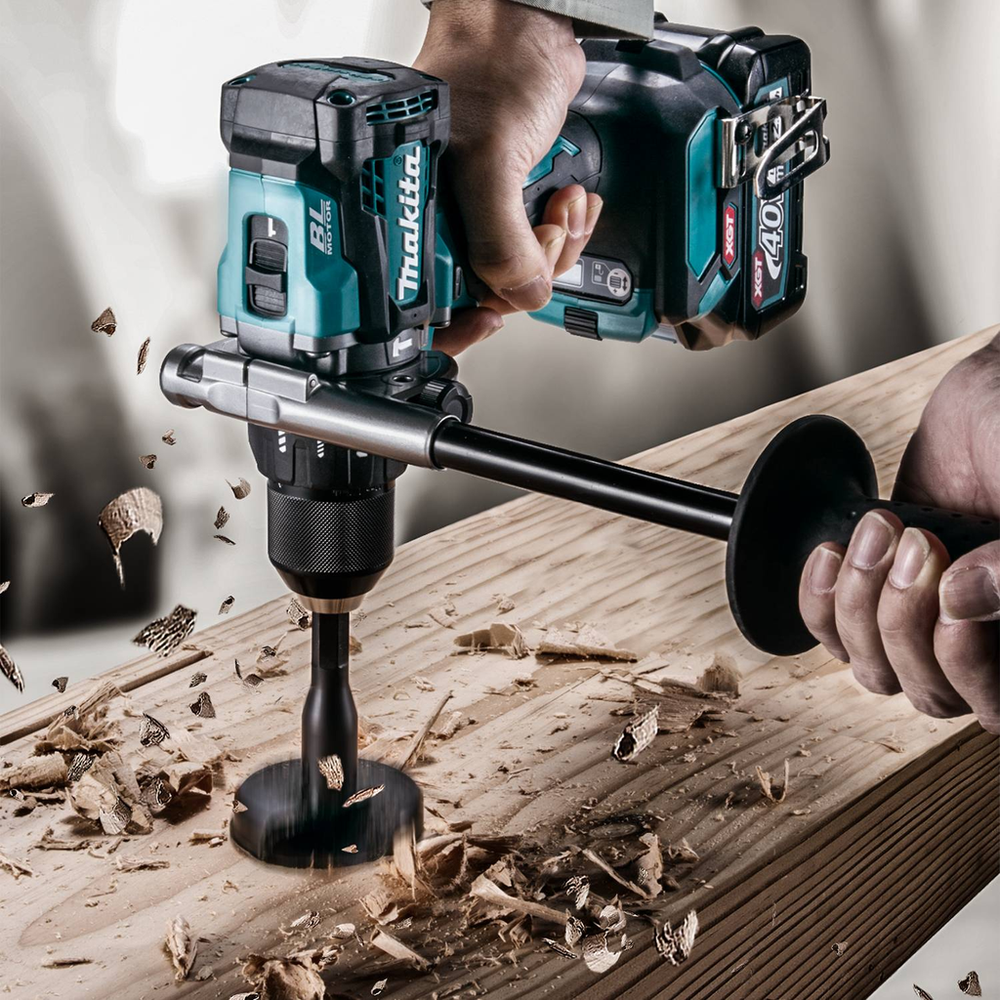

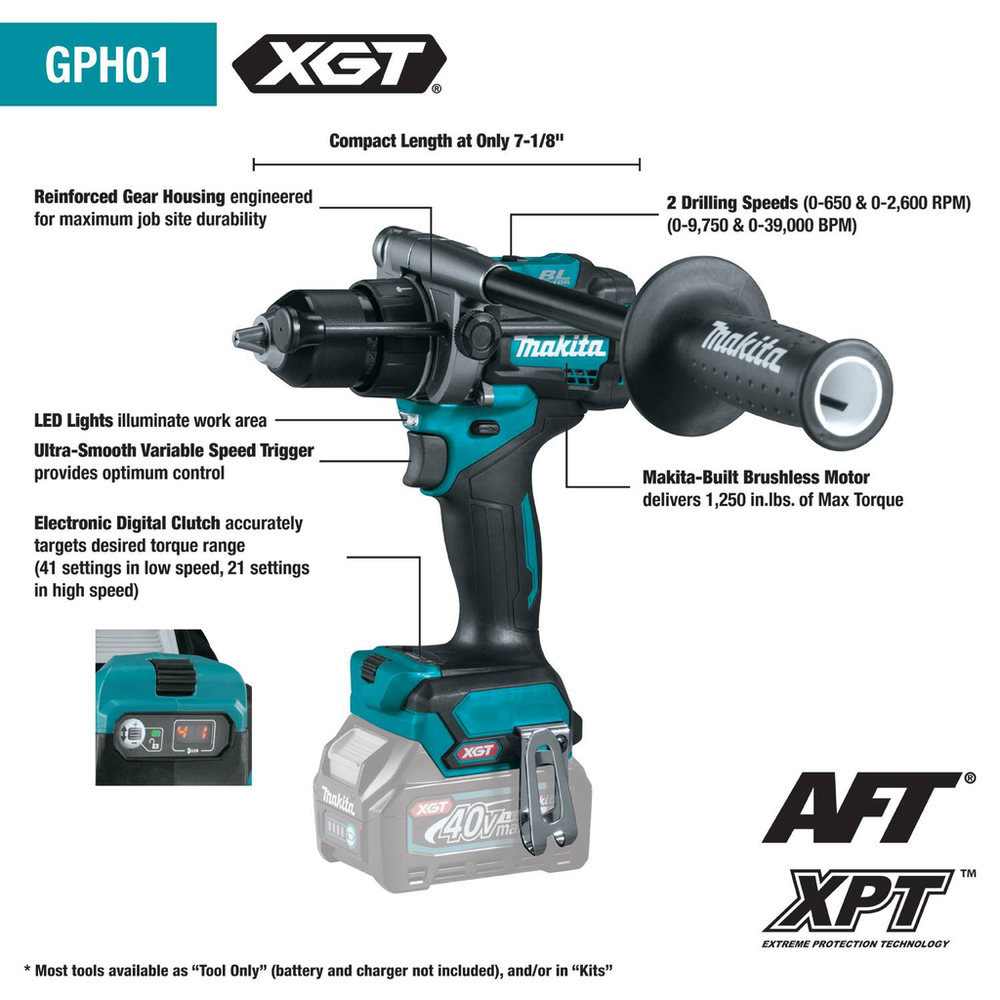

• 2-speed Hammer Driver-Drill with Makita-built brushless motor delivers (0-650 & 0-2,600 RPM) (0-9,750 & 0-39,000 BPM) and 1,250 in.lbs. of Max Torque
• The XGT® Rapid Charger with dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging
• 3-year limited warranty on tool, battery and charger
• Only use genuine Makita® Batteries and Chargers
• 40V max XGT® 2.5Ah Battery reaches a full charge in 28 minutes or less
• 4-speed Impact Driver (0-1,100/ 0-2,100/ 0-3,200/ 0-3,700 RPM & 0-1,100/ 0-2,600/ 0-3,600/ 0-4,400 IPM) provides 1,950 in.lbs. of Max Torque
• INCLUDES - GPH01Z, GDT01Z, GSH01, ML001G, (1) 40 max XGT® 2.5Ah battery, (1) 40 max XGT® 4.0Ah battery, charger, tool bag
• The XGT® Rapid Charger’s built-in chip thoroughly communicates during the charging process to control current, voltage, and temperature for more efficient charging
• Compatible with Makita® 40V max XGT® Lithium-Ion Batteries
• The digital communication within XGT® optimizes performance to provide up to 2X longer sustained power under heavy-load applications
• XPT™ is engineered to provide increased dust and water resistance in harsh job site conditions
• CIRCULAR SAW - 7-1/4" Circular Saw Makita-built brushless motor delivers 6,000 RPM for faster cutting and ripping
• 40V max XGT® Rapid Optimum Charger (DC40RA)
• 40V max XGT® 4.0Ah Battery (BL4040)
• 40V max XGT® 2.5Ah Battery (BL4025)
• Variable 2-speed Hammer Driver-Drill with Makita-built brushless motor delivers (0-650 & 0-2,600 RPM) (0-9,750 & 0-39,000 BPM) and 1,250 in.lbs. of Max Torque

Prop 65

• WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.

Downloads

GSH01 Instruction Manual
ML001G Instruction Manual
GDT01 Parts Breakdown
DC40RA Parts Breakdown
GDT01 Instruction Manual
DC40RA Instruction Manual
