40V max XGT® Brushless Cordless 5-Pc. Combo Kit (4.0Ah) - GT500M

The 40V max XGT® Brushless 5-Pc. Combo Kit (GT500M) offers five premium tools that are ideal for demanding drilling, driving, and cutting applications. The 40V max XGT® Brushless 1/2" Hammer Driver-Drill (GPH01) delivers 1,250 in.lbs. of Max Torque, outpowering other driver-drills in heavy-load applications. It offers up to 35% faster drilling speed, compared to Makita’s 18V LXT Cordless ½” Hammer Driver-Drill (XPH07), with two speed settings (0-650 and 0-2,600 RPM and 0-9,750 and 0-39,000 BPM). The 40V max XGT® Brushless 4-Speed Impact Driver (GDT01) delivers 1,950 in.lbs. of Max Torque, outpowering other impact drivers in heavy-load applications. An ultra-smooth variable speed trigger provides optimum control and a one-touch four-speed power selector button under the chuck allows users to adjust speed easily. It also features four speed settings (0-1,100/ 0-2,100/ 0-3,200/ 0-3,700 RPM & 0-1,100/ 0-2,600/ 0-3,600/ 0-4,400 IPM) to tackle a wide variety of applications. The 40V max XGT® Brushless Recipro Saw (GRJ01) features a variable 2-speed brushless motor that delivers 0-2,300 SPM in Low and 0-3,000 SPM in High. XGT® technology delivers up to 145 cuts per charge in 2x10 SPF lumber using one XGT 4.0Ah Battery. The long 1-1/4” stroke length increases cutting efficiency, and the refined crank mechanism design minimizes blade deflection and reduces vibration. 40V max XGT® Brushless Rear Handle 7-1/4” Circular Saw (GSR01) delivers 6,400 RPM for high-speed cutting performance. It cuts 3X the material in a single pass with a large cutting capacity of 2-9/16”. It also features positive stops at 22.5-degrees and 45-degrees, with beveling capacity up to 56-degrees. The saw features an electric brake for maximum productivity and a die-cast magnesium base. 40V max XGT® Cordless L.E.D. Flashlight (ML001G) delivers bright illumination, versatility, and convenience. The high-luminance 4 L.E.D. flashlight provides 160 lumens. It delivers up to 55 hours of continuous illumination on a single charge (when using the 40V max XGT 4.0Ah battery). The 12-position pivoting head provides a range of light direction. A metal hang-hook is included for added convenience. XGT® is a system of equipment, tools, batteries, and chargers utilizing 40V max lithium-ion batteries. XGT® is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart, and outlast the rest.

Features

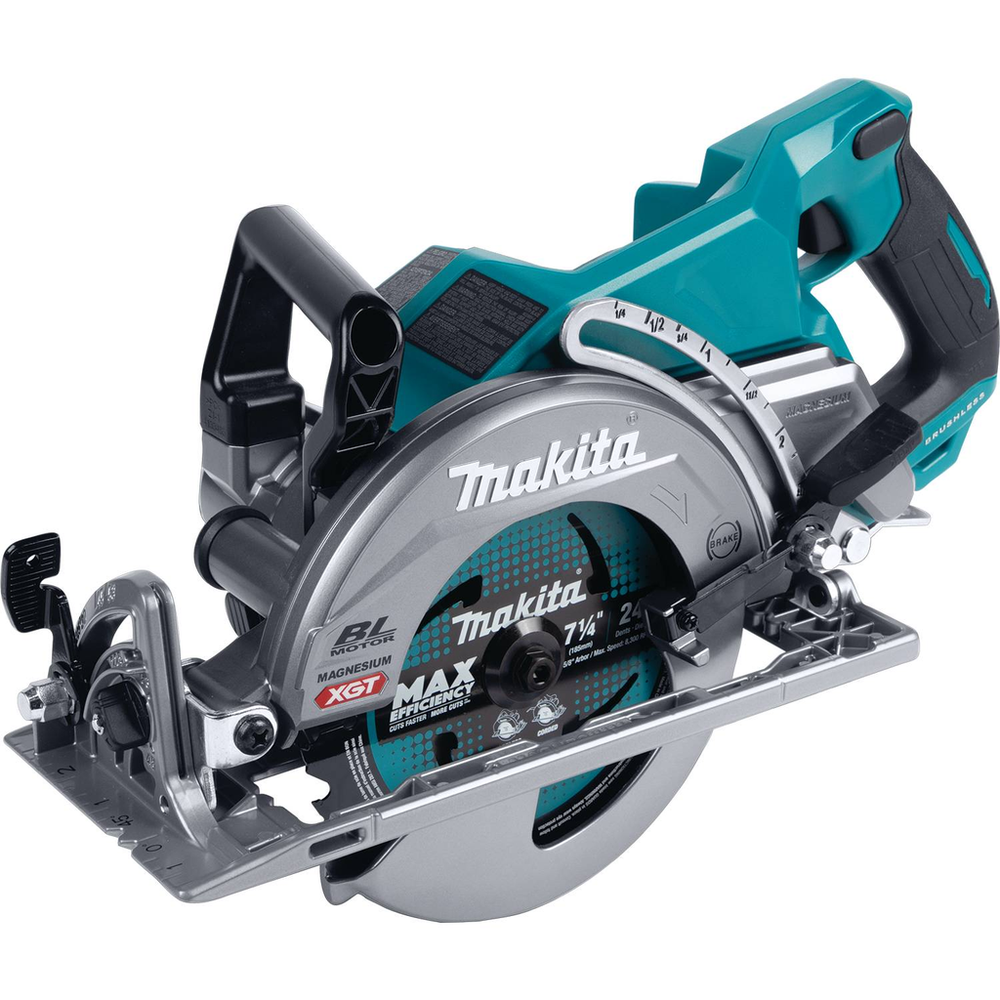

• 40V max XGT® Brushless Rear Handle 7-1/4” Circular Saw (GSR01Z)
• 4-speed Impact Driver (0-1,100/ 0-2,100/ 0-3,200/ 0-3,700 RPM & 0-1,100/ 0-2,600/ 0-3,600/ 0-4,400 IPM) provides 1,950 in.lbs. of Max Torque
• The XGT® Rapid Charger with dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging
• The digital communication within XGT® optimizes performance to provide up to 2X longer sustained power under heavy-load applications
• RECIPRO SAW - Recipro Saw delivers 0-2,300 (Low) & 0-3,000 (High) strokes per minute and a 1-1/4" stroke length
• 2-speed Hammer Driver-Drill with Makita-built brushless motor delivers (0-650 & 0-2,600 RPM) (0-9,750 & 0-39,000 BPM) and 1,250 in.lbs. of Max Torque
• Only use genuine Makita® Batteries and Chargers
• 40V max XGT® 4.0Ah battery reaches a full charge in only 45 minutes

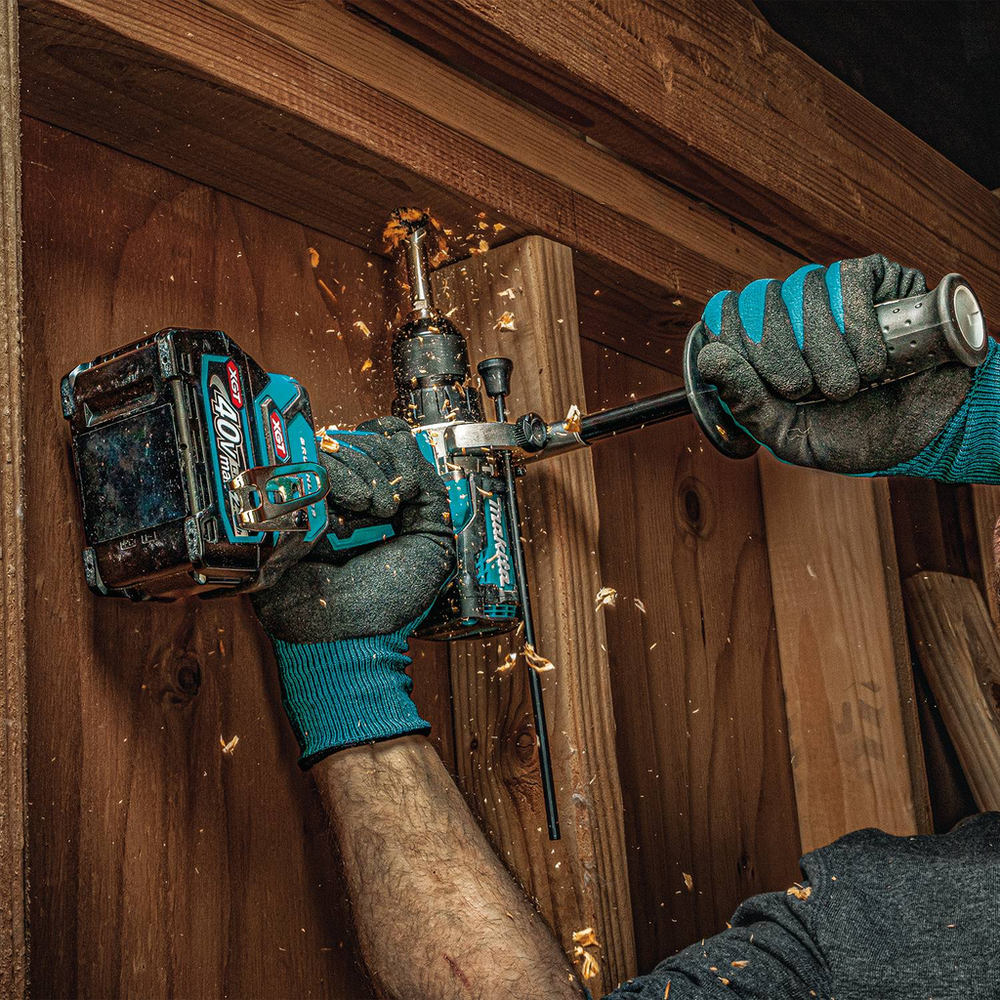

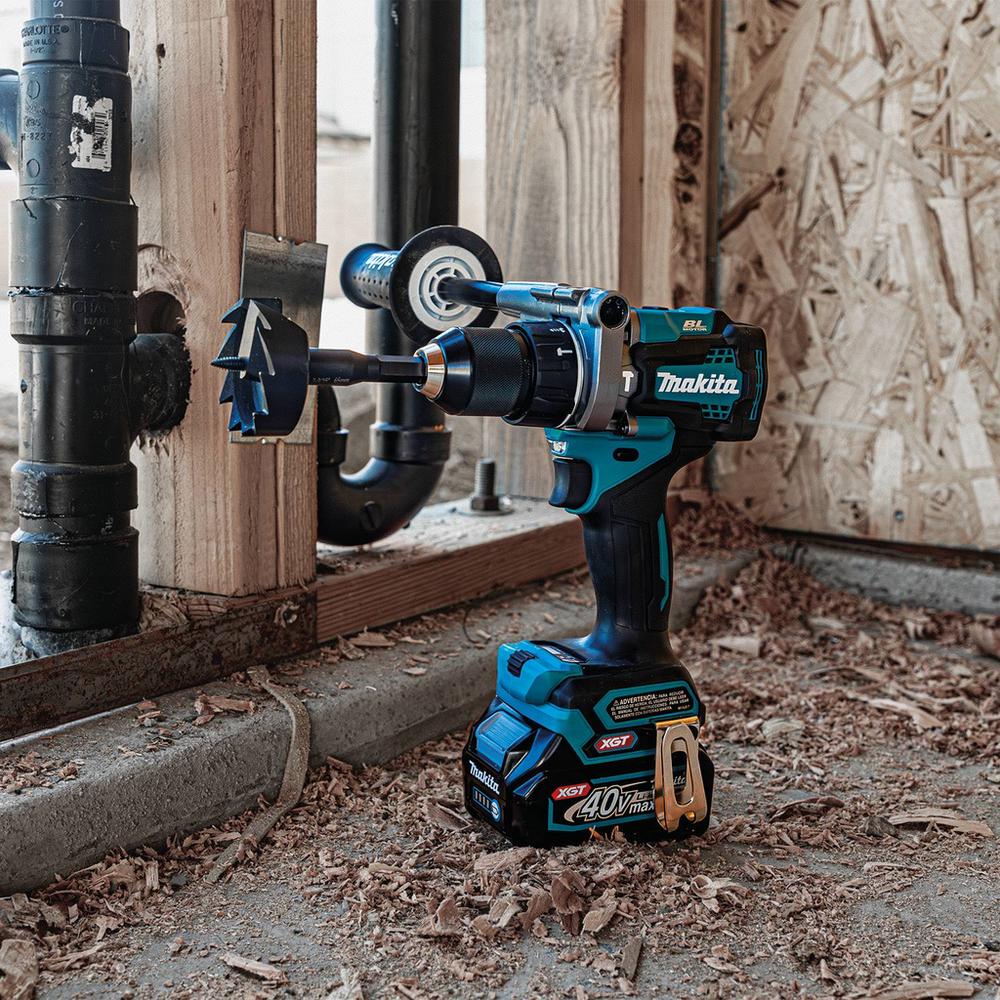

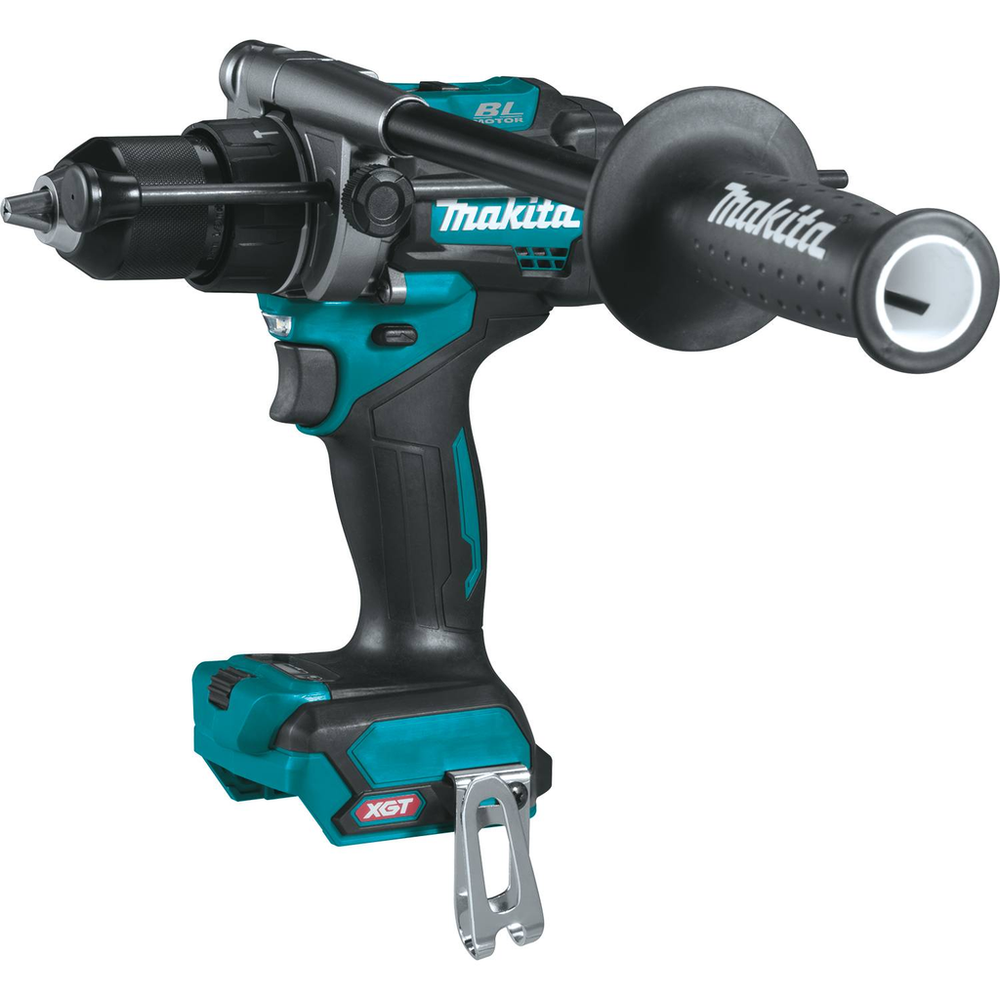

• 40V max XGT® Brushless 1/2" Hammer Driver-Drill (GPH01Z)
• 3-year limited warranty on tool, battery and charger
• INCLUDES - GPH01Z, GDT01Z, GRJ01, GSR01, ML001G, (2) 40 max XGT® 4.0Ah battery, charger, tool bag

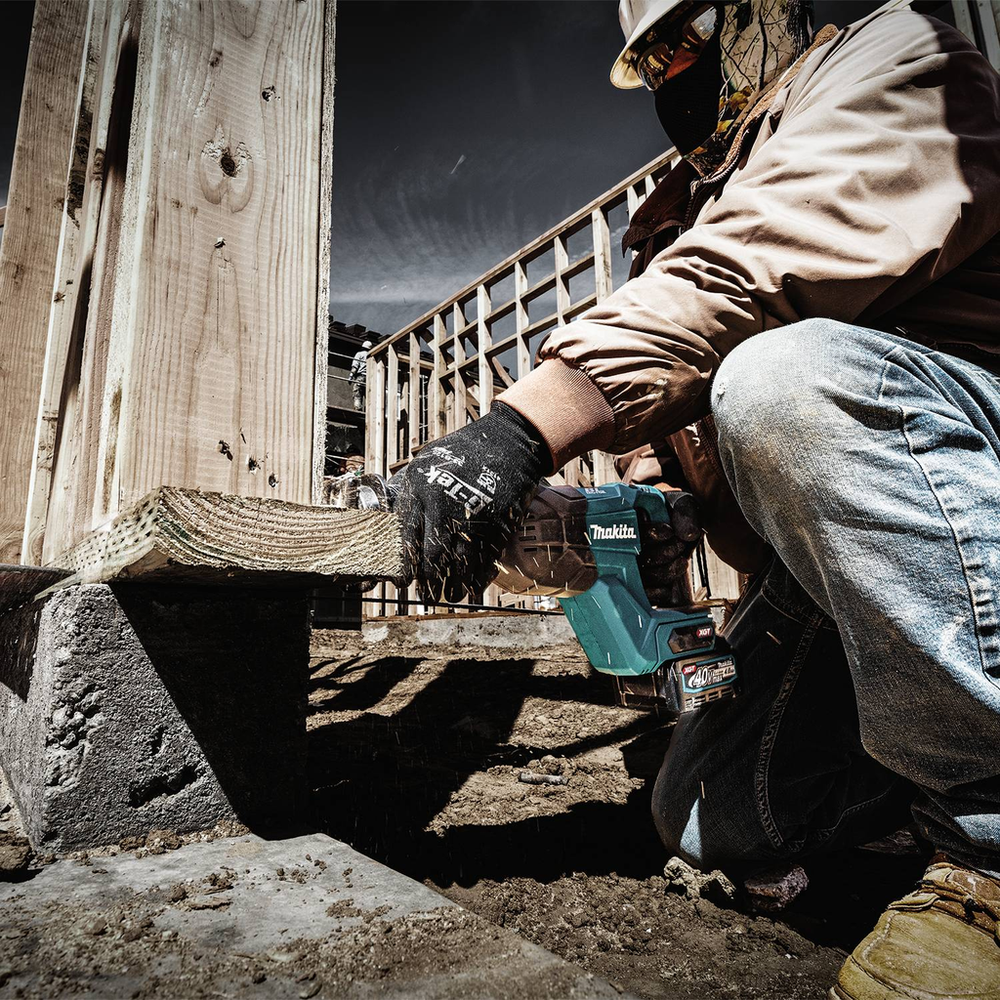

• 40V max XGT® Brushless Recipro Saw (GRJ01Z)
• HAMMER DRILL - Makita-built brushless motor delivers 1,250 in.lbs. of Max Torque
• IMPACT DRIVER - Makita-built brushless motor delivers 1,950 in.lbs. of Max Torque
• Compatible with Makita® 40V max XGT® Lithium-Ion Batteries
• Tool Bag w/Wheels (831269-3)

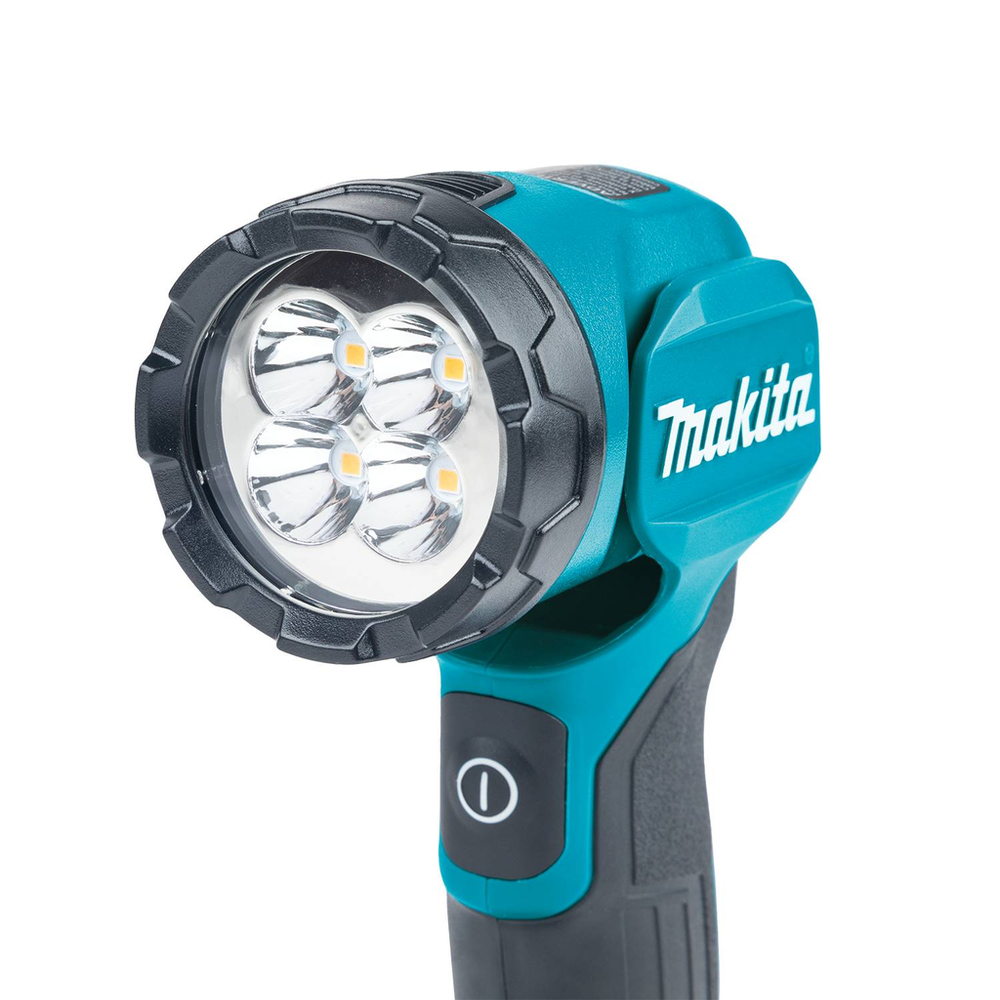

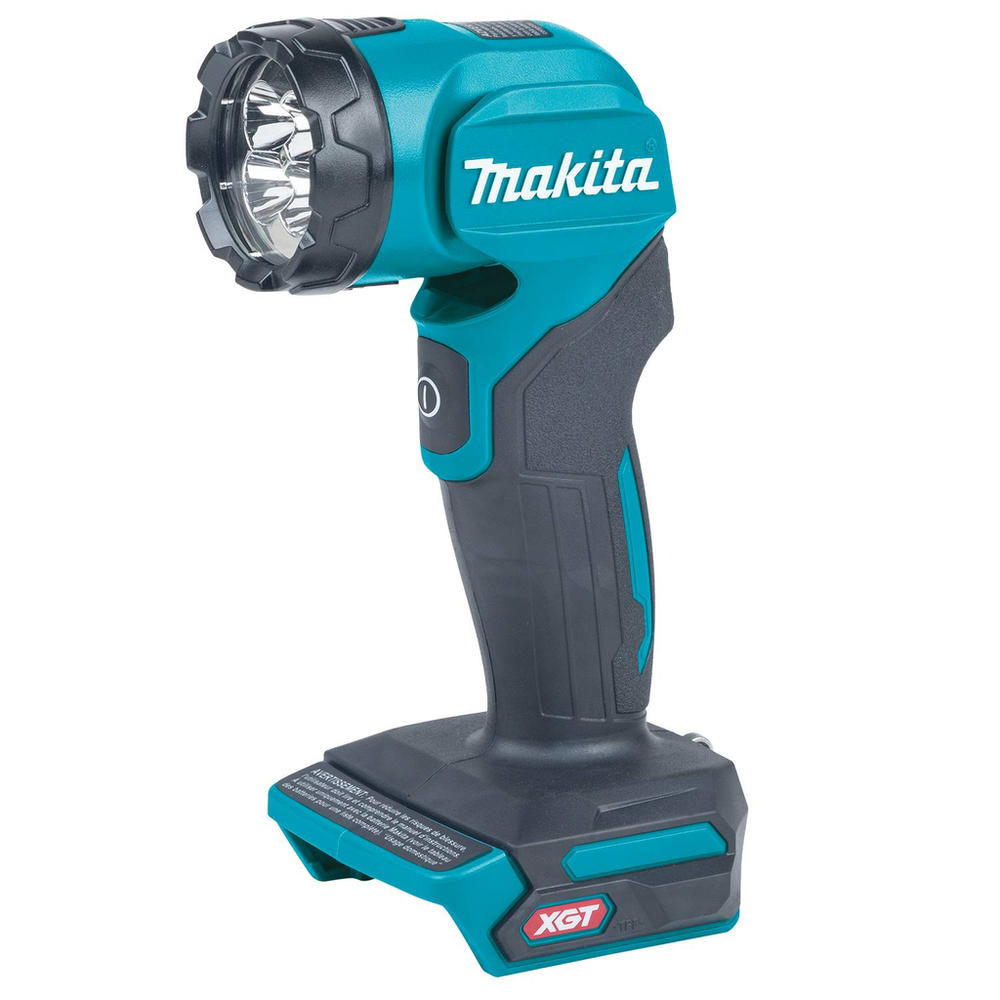

• 40V max XGT® Cordless L.E.D. Flashlight (ML001G)
• High-luminance 4 L.E.D. flashlight provides 160 lumens
• Recipro Saw delivers 0-2,300 (Low) & 0-3,000 (High) strokes per minute and a 1-1/4" stroke length for faster cutting
• The XGT® Rapid Charger’s built-in chip thoroughly communicates during the charging process to control current, voltage, and temperature for more efficient charging
• Variable 2-speed Hammer Driver-Drill with Makita-built brushless motor delivers (0-650 & 0-2,600 RPM) (0-9,750 & 0-39,000 BPM) and 1,250 in.lbs. of Max Torque

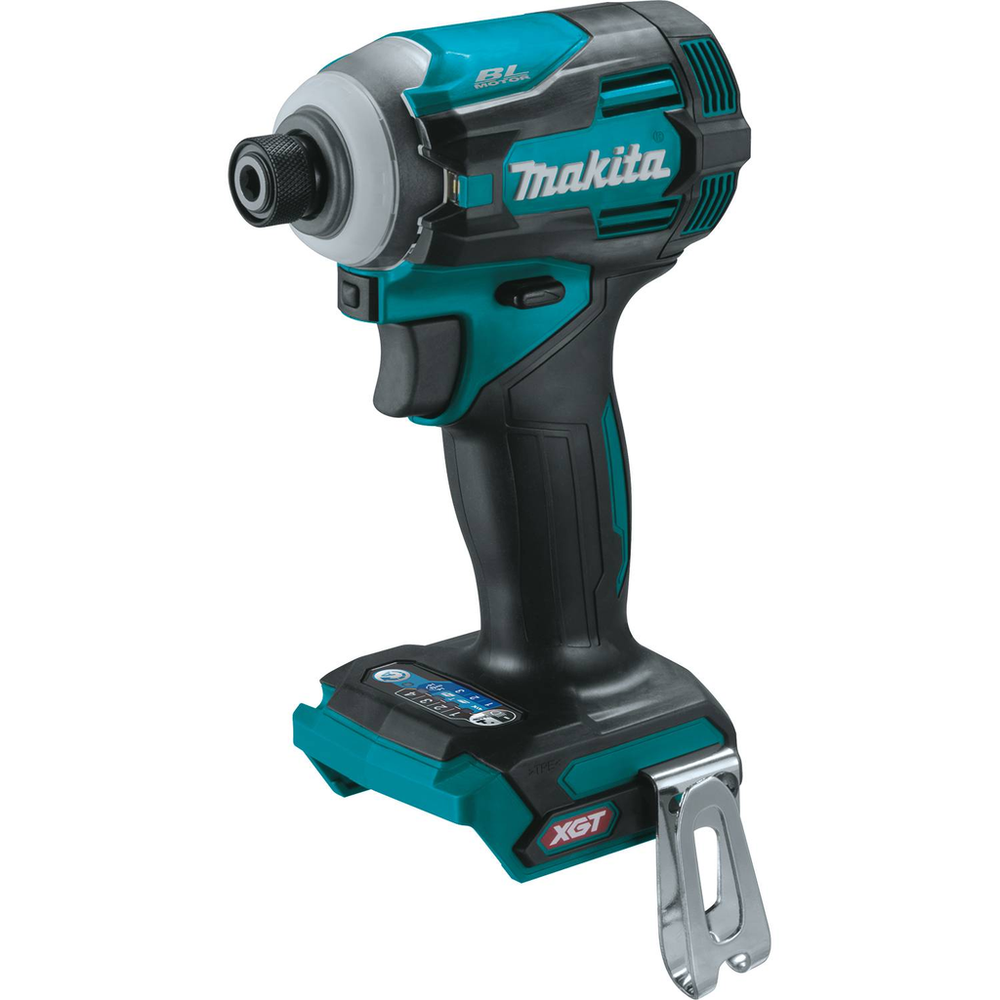

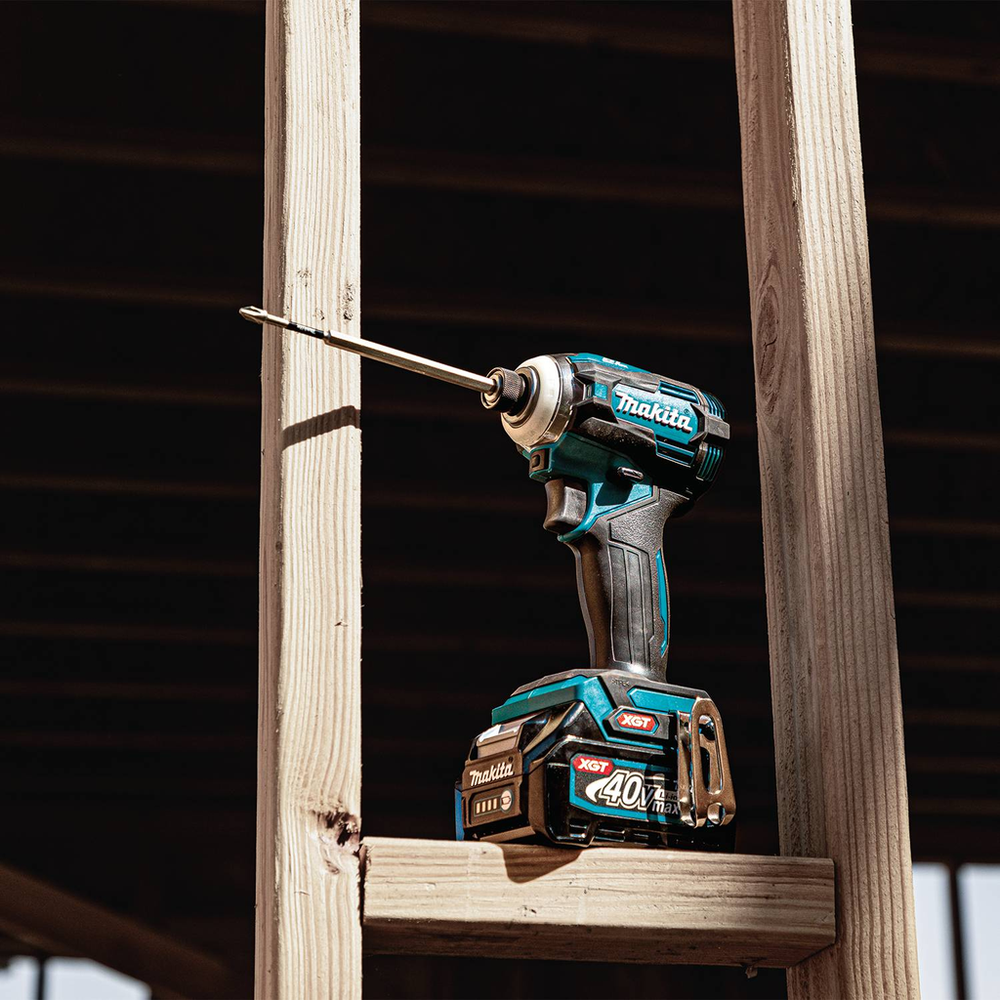

• 40V max XGT® Brushless 4-Speed Impact Driver (GDT01Z)
• Impact Driver features 4-speed power selection (0-1,100/ 0-2,100/ 0-3,200/ 0-3,700 RPM & 0-1,100/ 0-2,600/ 0-3,600/ 0-4,400 IPM) provides 1,950 in.lbs. of Max Torque

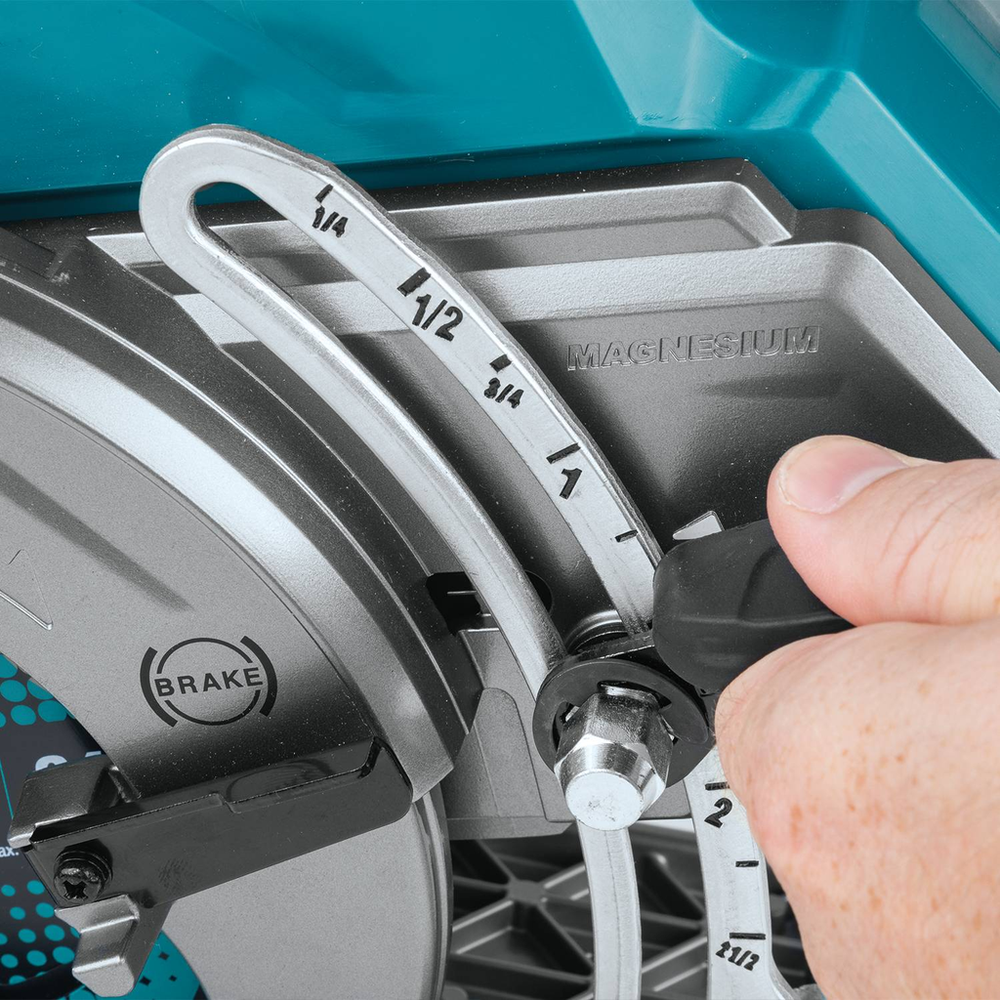

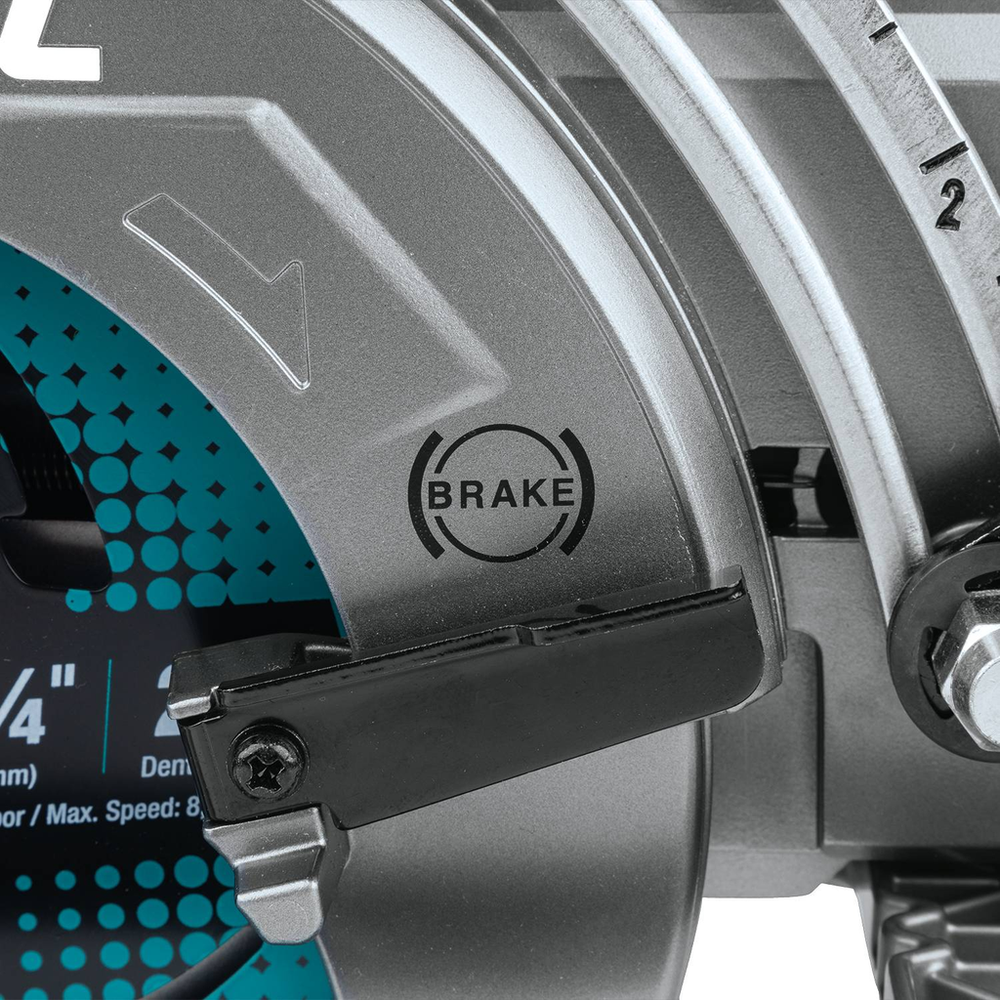

• Rear Handle 7-1/4" Circular Saw with Makita-built brushless motor delivers 6,400 RPM for faster cutting and ripping; cuts 2-9/16" at 90°
• XGT® Batteries feature rigid rails with impact-resistant construction to secure the battery to the tool during high-demand applications
• FLASHLIGHT - Delivers 6,400 RPM for faster cutting and ripping; cuts 2-9/16" at 90°
• XGT® Tools and Batteries are designed with a multi-layer contact interface for more constant power delivery to take on high-current demands
• 2 40V max XGT® 4.0Ah Battery (BL4040)

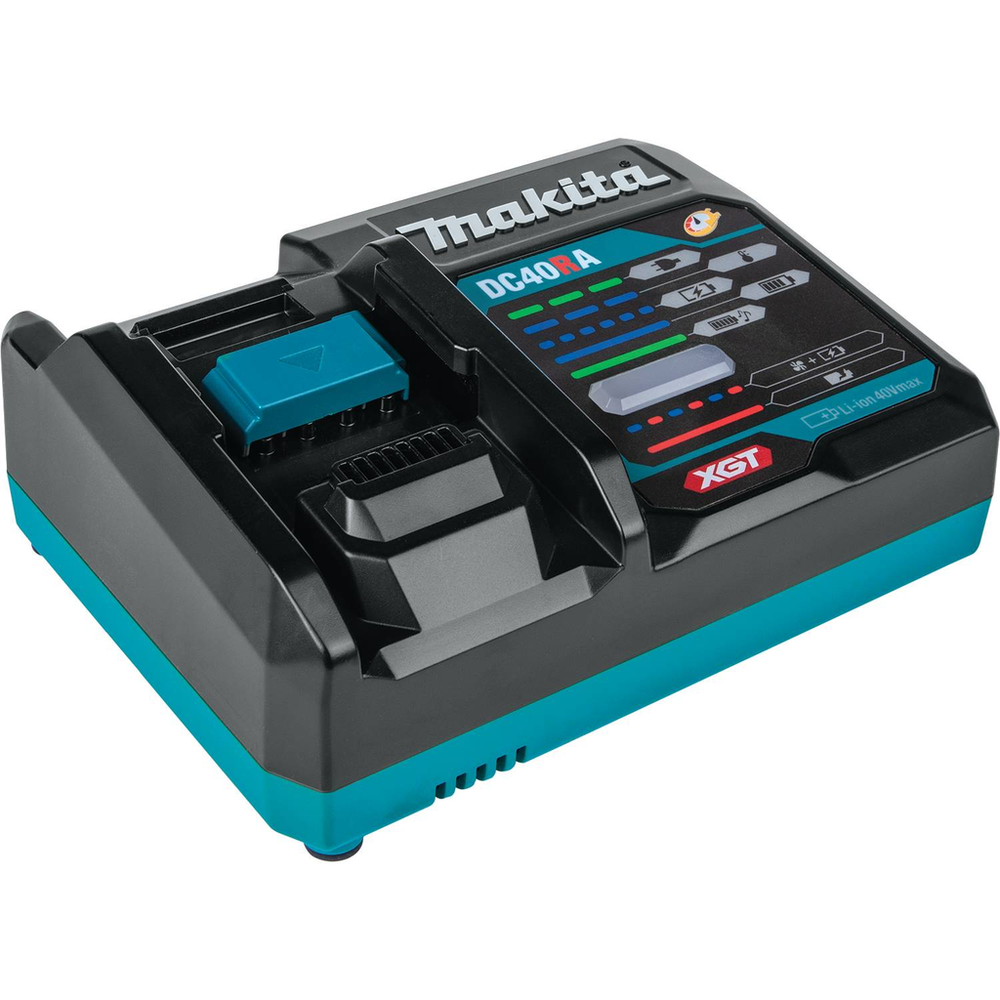

• 40V max XGT® Rapid Optimum Charger (DC40RA)
• The digital communication within XGT® actively monitors and protects against overload, over-discharge and overheating
• XPT™ is engineered to provide increased dust and water resistance in harsh job site conditions
• The XGT® Rapid Charger’s digital display indicates battery charge level (-80%, +80%, 100%)
