The 40V max XGT® Brushless Pin Nailer, 23-Gauge, is a cordless solution that delivers up to 15% faster firing. It is engineered with a refined firing mechanism that reduces recoil as well as reduces the force required on the work surface when driving pin nails. It has the option to drive six different lengths of 23-gauge nails including 5/8", 11/16", 3/4", 1", 1-3/16", and 1-3/8" with a max magazine capacity of up to 120 pin nails. It has a contact trigger for improved accuracy and precision and a trigger lock. Convenience features include a narrow nose design that allows for easy nailing access in confined areas. It also features an anti-dry fire mechanism engineered to prevent driving blanks and damage to work surfaces, and a tool-less depth adjustment for precise flush and countersink finish. It has a built-in L.E.D light to provide illumination, a reversible hook for easy hanging when not in use, and an ergonomically designed handle with a rubberized soft grip that provides increased comfort. It is both compact and ergonomic measuring only 10-3/8” long and weighing only 5.3 lbs. with a battery. XGT® is a system of equipment, tools, batteries, and chargers utilizing 40v max lithium-ion batteries. XGT® is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart and outlast the rest.
Features
- Built-in L.E.D. light illuminates the work area
- Cordless for increased convenience; eliminates the need for a compressor and air hose
- COMFORT - Refined firing mechanism reduces recoil and force required on the work
- OUTLAST: XPT™ is engineered to provide increased dust and water resistance in harsh job site conditions

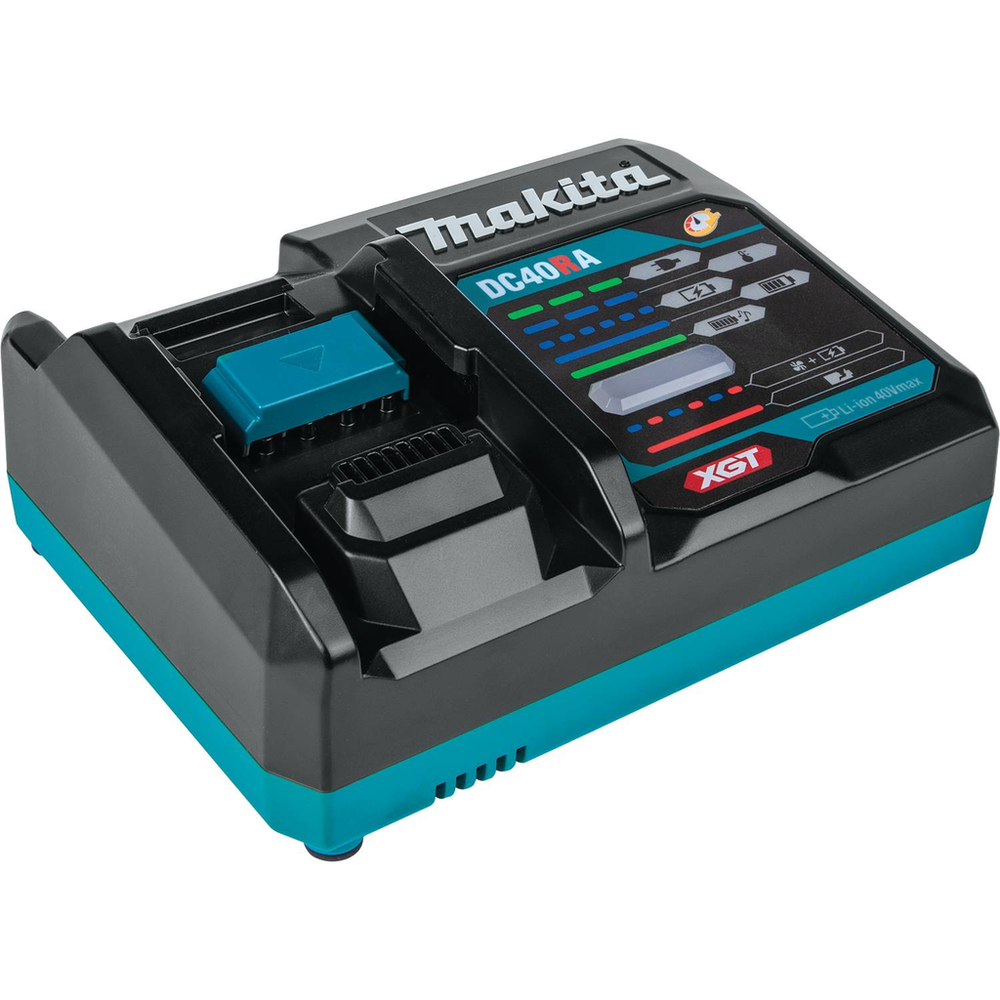

- 40V max XGT® Rapid Optimum Charger (DC40RA)
- XGT® Tools and Batteries are designed with a multi-layer contact interface for more constant power delivery to take on high-current demands
- OUTSMART: The digital communication within XGT® optimizes performance to provide up to 2X longer sustained power under heavy-load applications
- The XGT® Rapid Charger’s built-in chip thoroughly communicates during the charging process to control current, voltage, and temperature for more efficient charging
- Weighs only 5.3 lbs. with battery for reduced operator fatigue
- Narrow nose design allows easy nailing access in confined areas
- Makita-built brushless motor delivers up to 15% faster firing compared to XTP02
- Only use genuine Makita® Batteries and Chargers
- Hex Wrench (783201-2)
- The XGT® Rapid Charger’s digital display indicates battery charge level (-80%, +80%, 100%)
- Tool Bag
- Goggles
- Drives 6 different lengths, 5/8", 11/16", 3/4", 1", 1-3/16" and 1-3/8", of 23 gauge pin nails (tool does not work with 1-1/4" pin nails)
- The digital communication within XGT® actively monitors and protects against overload, over-discharge and overheating
- Anti-dry fire mechanism engineered to prevent driving blanks and damage to work surface
- XGT® Batteries feature rigid rails with impact-resistant construction to secure the battery to the tool during high-demand applications

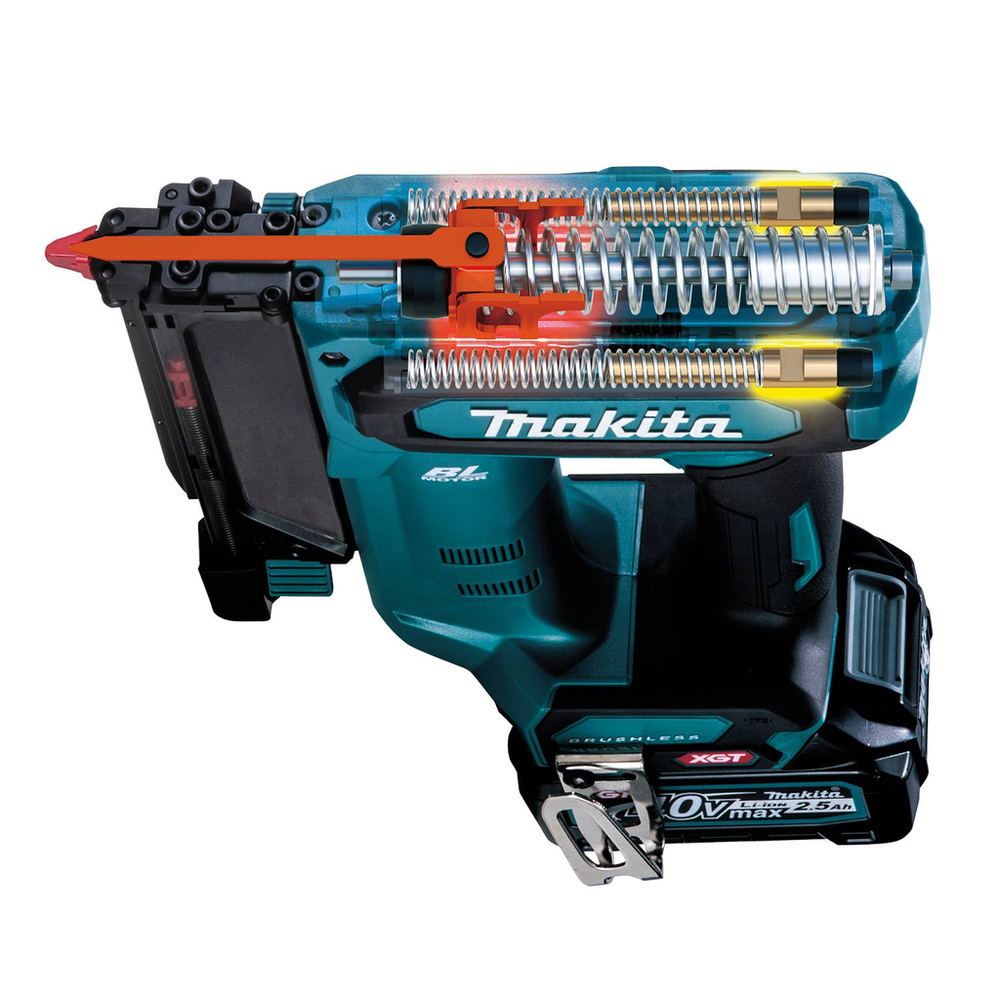

- Refined firing mechanism reduces recoil; reduces force required on the work surface when driving pin nails
- Trigger lock button for operator convenience
- OUTPOWER: Makita-built brushless motor delivers up to 15% faster firing*
- SPEED - Makita-built brushless motor delivers up to 15% faster firing compared to XTP02
- "Tool-less" depth adjustment for precise flush and countersink finish
- Ergonomically designed handle with rubberized soft grip provides increased comfort
- Contact trigger for improved accuracy and precision
- Compact and ergonomic design at only 10-3/8" long
- Reversible tool hook allows the tool to remain close
- CAPACITY - Max magazine capacity up to 120 pin nails
- Max magazine capacity up to 120 pin nails
- Belt Clip (346449-3)
- The XGT® Rapid Charger with dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging
- INCLUDES - (1) 40V max XGT® Lithium-Ion 2.5Ah battery, charger, and tool bag
- 40V max XGT® 2.5Ah Battery (BL4025)
- Compatible with Makita® 40V max XGT® Lithium-Ion Batteries
- 40V max XGT® Brushless Pin Nailer, 23 Ga. (GTP01Z)
- DESIGN - Narrow nose design allows easy nailing access in confined areas
Prop 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Downloads
GTP01 Instruction ManualGTP01 Parts Breakdown
