Makita

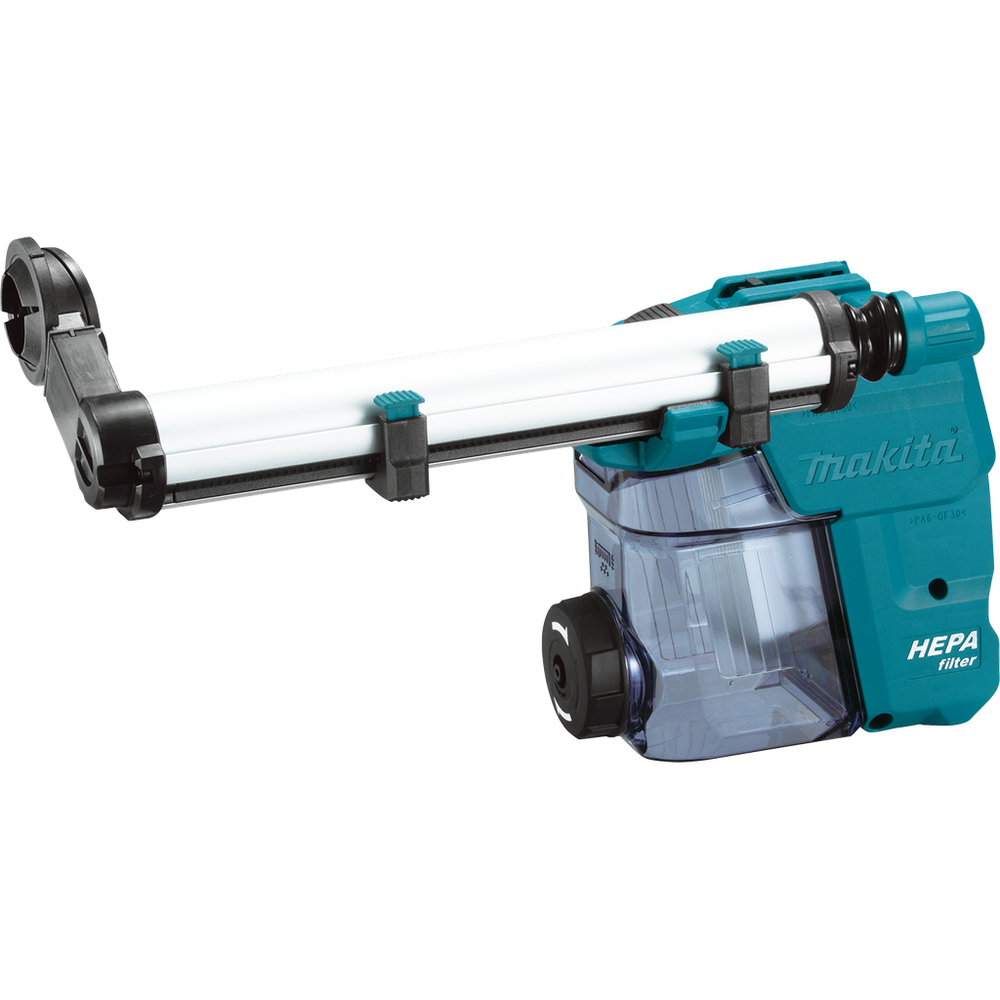

Dust Extractor Attachment with HEPA Filter Cleaning Mechanism (DX10)

SKU: DX10
MPN: DX10
Lead Time: Typical lead time for Makita products is 1-2 weeks.
UPC: 088381565745
$175.43 each
Hurry up! Current stock:

Product Description

The Dust Extractor Attachment with HEPA Filter (DX10) is for use with the 1-3/16" AVT® Rotary Hammer (HR3011FC, sold separately). It captures concrete dust during drilling and is activated by the tool. The Dust Extractor Attachment features a HEPA filter engineered to capture 99.97% of dust particles (size .3 microns and larger) for improved dust collection and OSHA Table 1 compliance. The high-capacity dust container is transparent and provides an accurate level indicator of collected material. The extractor extension allows for drilling up to 7-1/2" deep and up to 1-3/16" diameter holes. The depth-stop adjustment button allows for an accurate drilling depth.

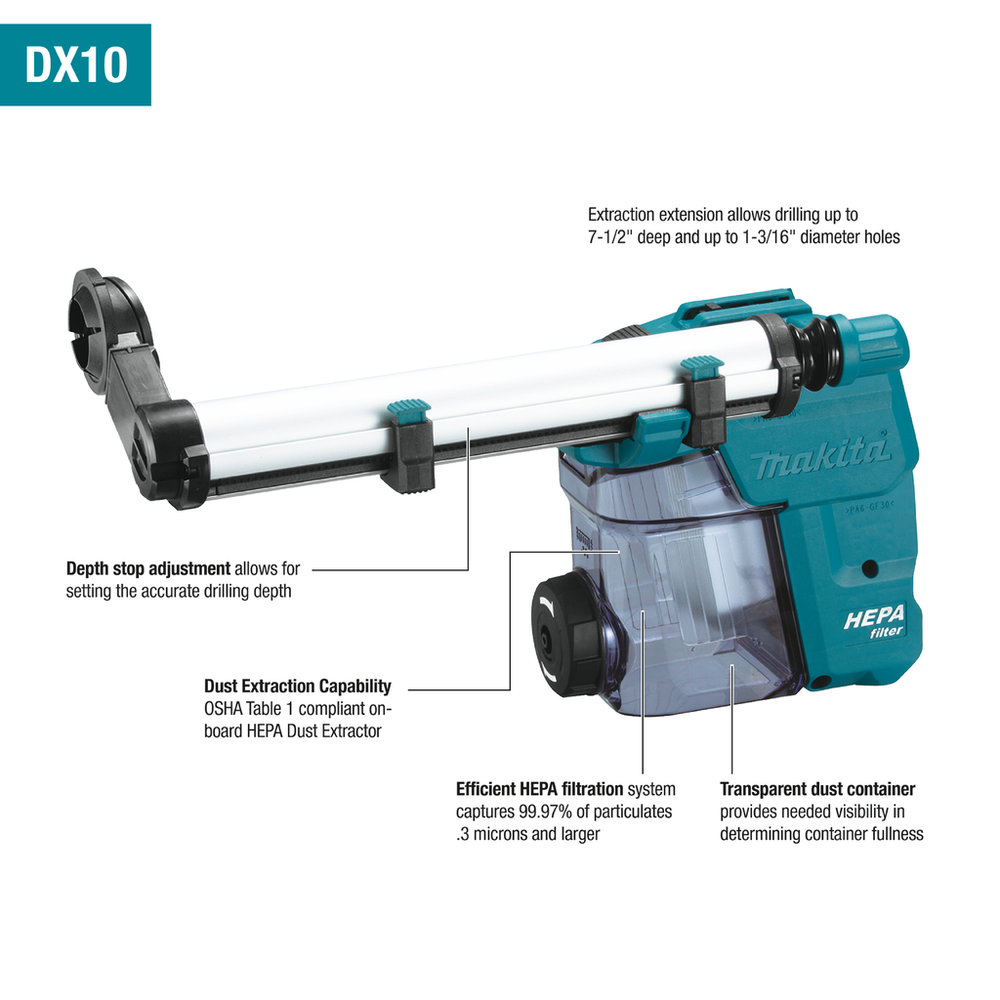

Features

  • Captures concrete dust during drilling and is activated by the tool for operator convenience
  • Powered by motor fan blade in tool to maintain concrete dust suction performance

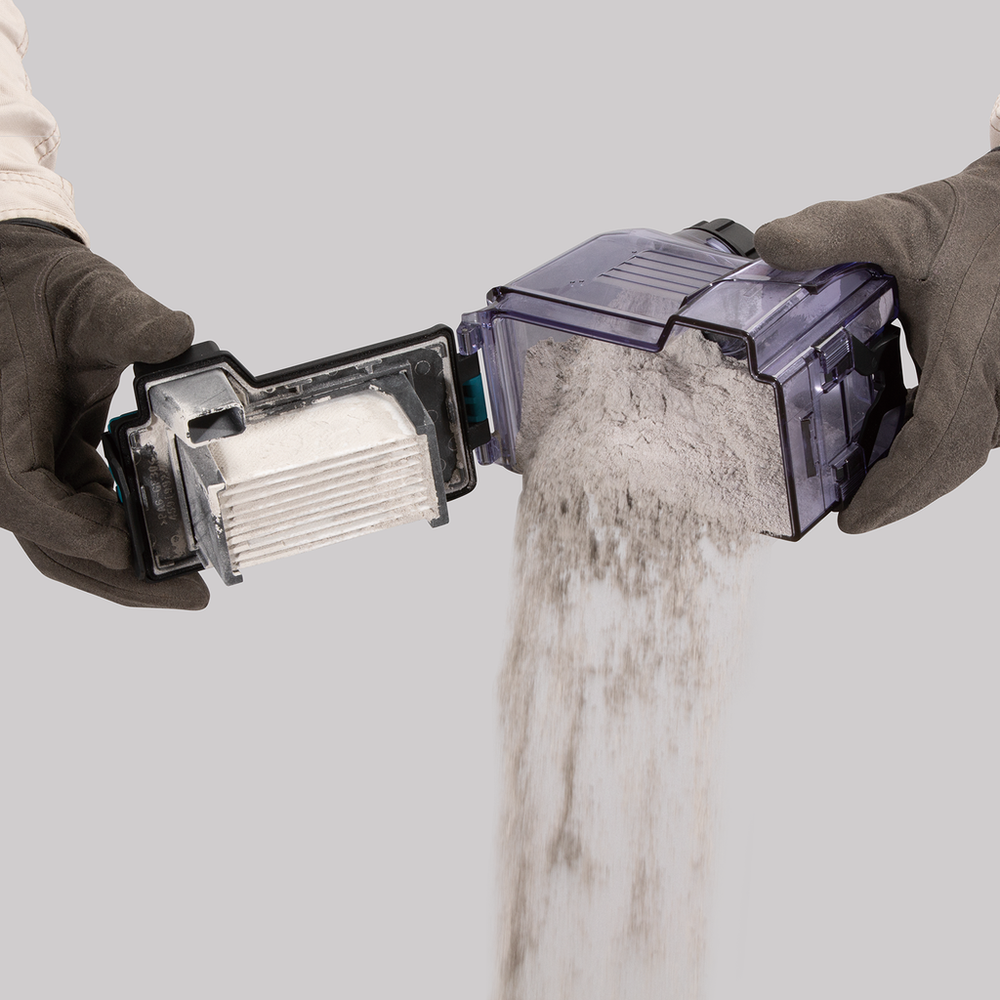

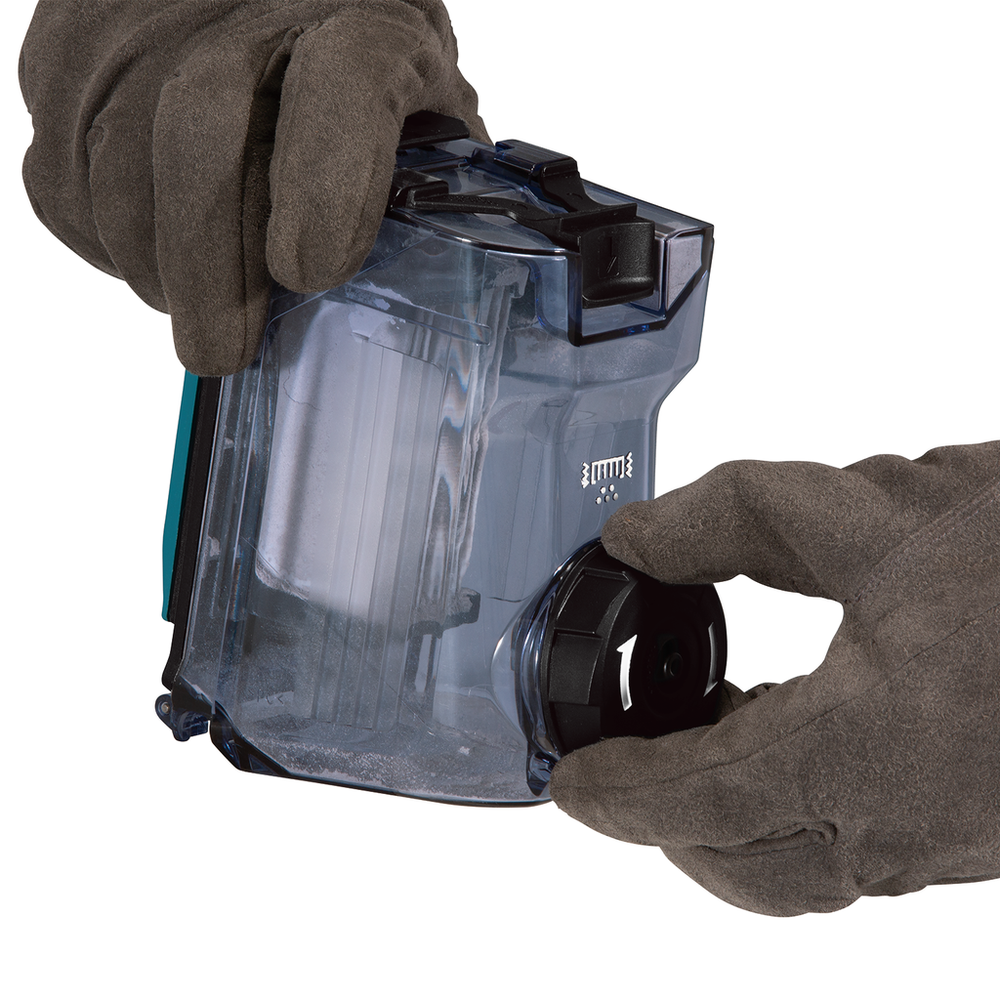

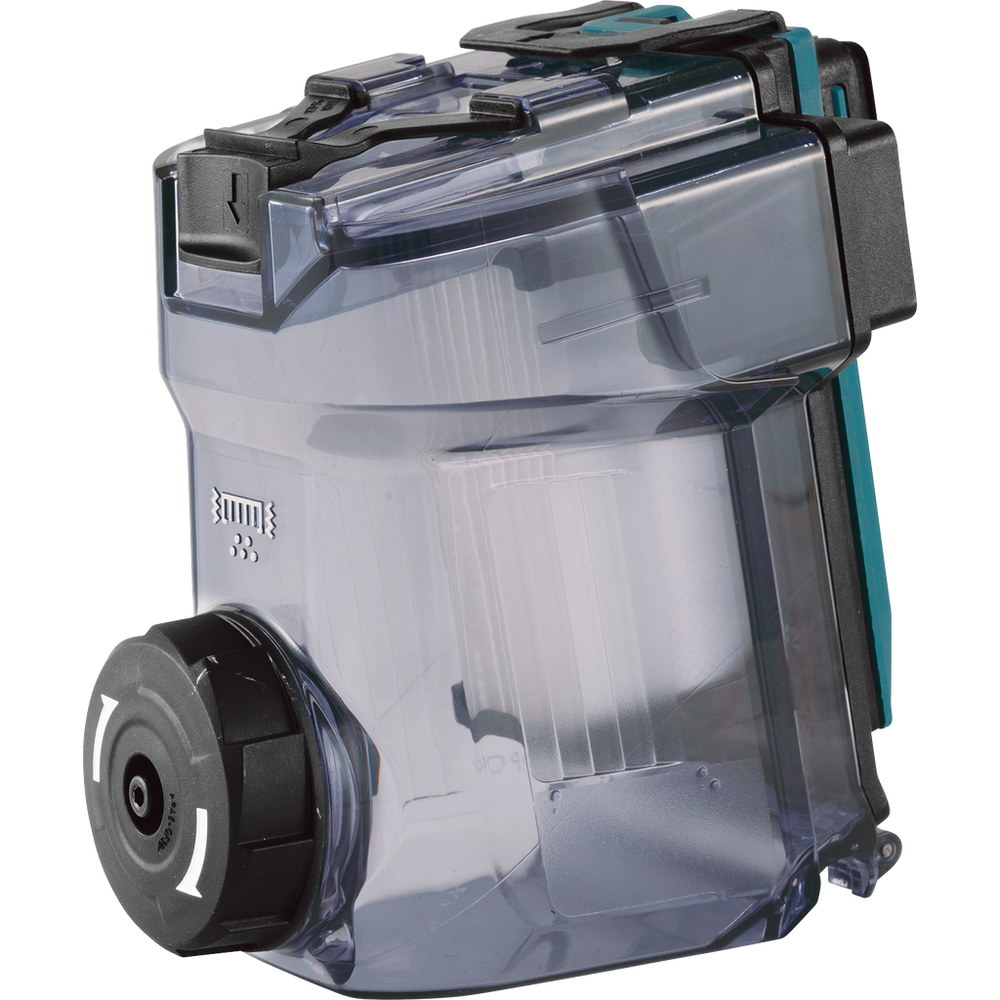

  • Transparent dust container provides a visible fill level and can hold up to 50 fl. oz. of dust
  • Depth stop adjustment button allows for accurate drilling depth
  • Extraction extension allows drilling up to 7-1/2" deep and up to 1-3/16" diameter holes
  • Efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger
  • OSHA Table 1 compliant on-board dust extractor includes a filter cleaning mechanism designed to help maintain optimum suction efficiency
  • Compatible with Makita Rotary Hammer models HR3011FC and HR3001C

Manuals

Specifications

Type (Concrete & Masonry Accessories)Dust Extraction Accessories
Equipped Filter Efficiency99.97% of .3 microns
Type (DX Concrete & Masonry)Dust Extractor Attachment
Adjustable Depth StopsYes
HEPA filterYes
Max. Hole Depth7-1/2"
Filter Life (Approx. container fillings)200
Auto shut off timeAfter 0 seconds
Container Capacity18.59 oz.
Container Hole Count Capacity50 holes of dimension 3/8"x2-3/8"
Length22-3/4 in
Weight2.4 lbs
Maximum Hole Diameter1.187"
