Makita

Dust Extractor Attachment with HEPA Filter Cleaning Mechanism (DX12)

Name: Dust Extractor Attachment with HEPA Filter Cleaning Mechanism (DX12)
Brand: Makita
SKU: DX12
Price: 250.27 USD
Availability: InStock

SKU: DX12

MPN: DX12

Lead Time: Typical lead time for Makita products is 1-2 weeks.

UPC: 088381560009

$250.27 each

Hurry up! Current stock:

Quantity:

Product Description

The Dust Extractor Attachment with HEPA Filter Cleaning Mechanism (DX12) is for use with the 40V max XGT® Brushless 1-1/8" AVT® Rotary Hammer (GRH01Z, sold separately). The attachment features a HEPA filter engineered to capture 99.97% of dust particles (size .3 microns and larger) for improved dust collection and OSHA Table 1 compliance. It is powered by a separate motor allowing the rotary hammer to consistently maintain peak drilling performance. The high-capacity dust container is transparent and provides an accurate level indicator of collected material. The container captures concrete dust during drilling, activated by the tool, and provides a 3-second delay to help capture remaining dust. With a quick release, the dust container can be easily detached from the dust collection attachment when needed.

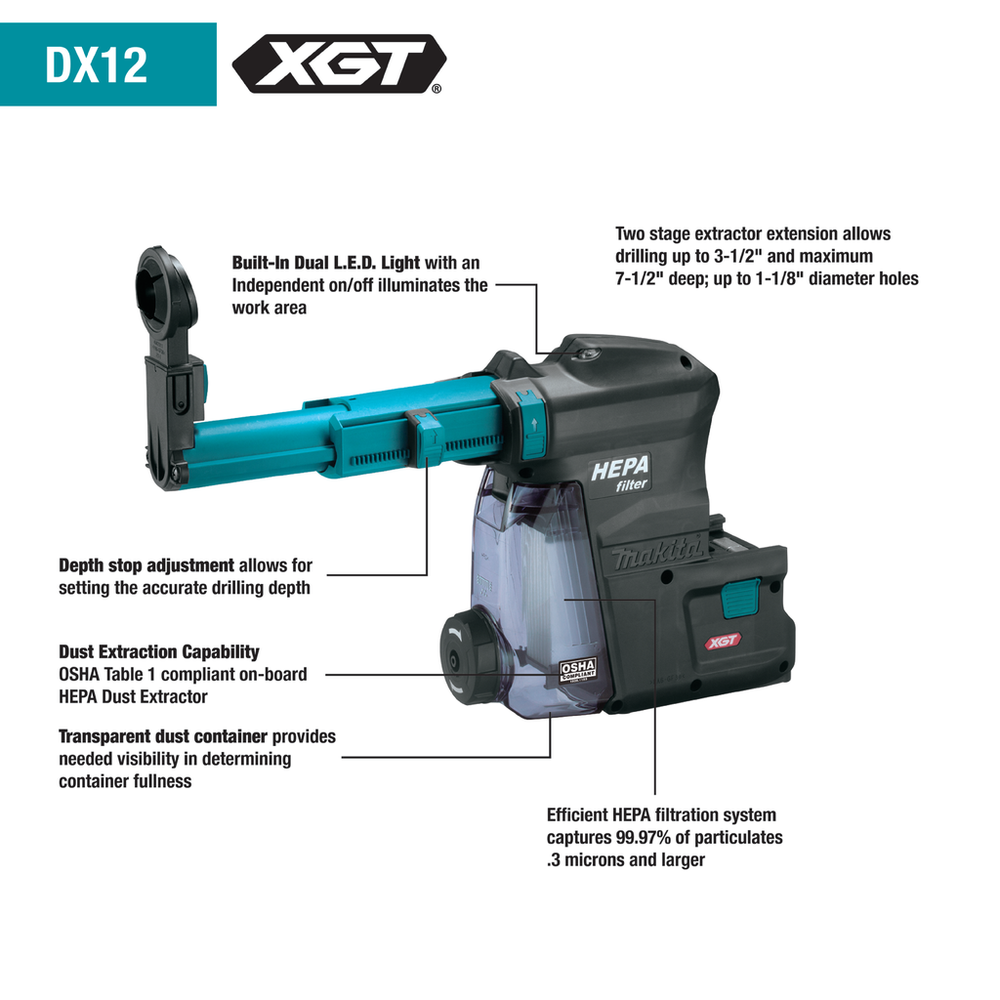

Features

Extractor is automatically activated by the tool's power trigger and provides a delayed stop to capture any remaining dust
Two stage extractor extension allows drilling up to 3-1/2" and maximum 7-1/2" deep; up to 1-1/8" diameter holes

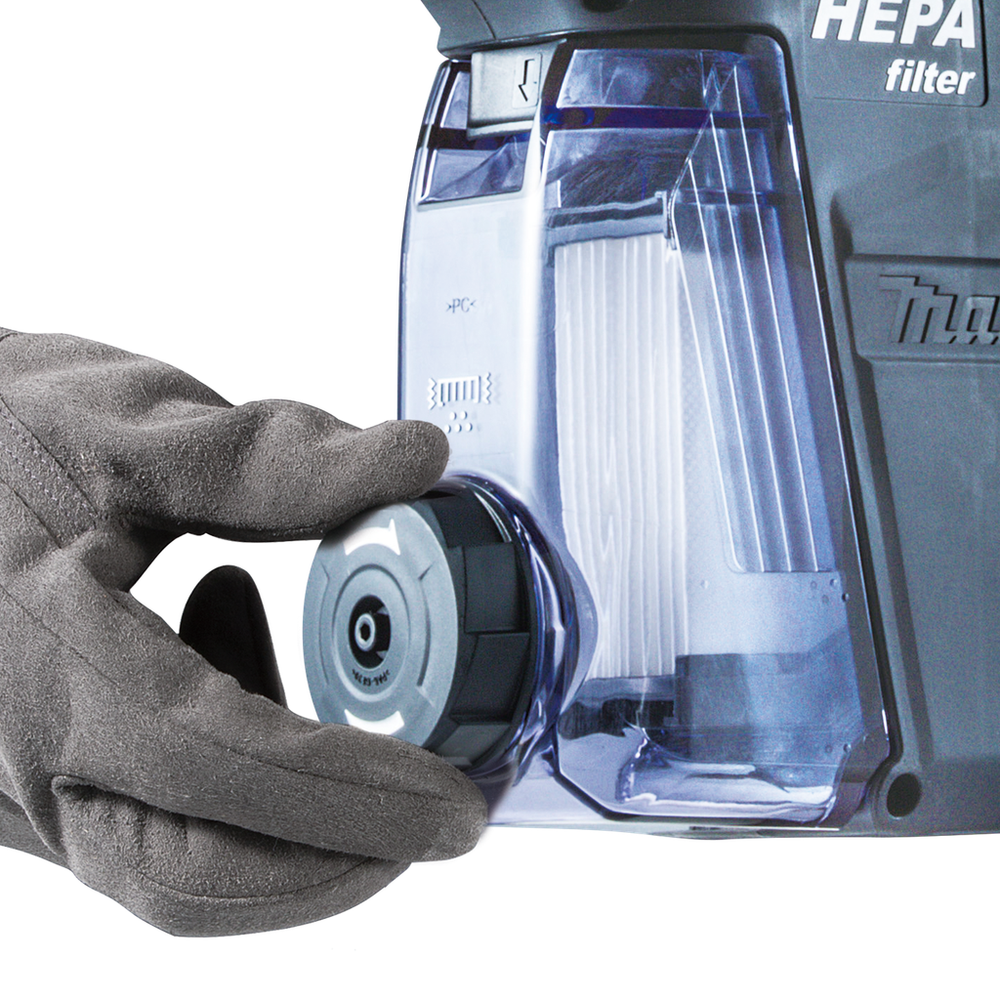

Transparent dust container provides needed visibility in determining container fullness
Built-in dual L.E.D. light with an independent on/off illuminates the work area
Efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger
Extractor is powered by separate motor allowing the rotary hammer to consistently maintain peak drilling performance
Depth stop adjustment allows for setting the accurate drilling depth
Compatible with Makita 40V max XGT® Rotary Hammer model GRH01
OSHA Table 1 compliant on-board dust extractor includes a filter cleaning mechanism designed to help maintain optimum suction efficiency

Manuals

Instruction Manual

Specifications

Max. Hole Depth	7-1/2"
Equipped Filter Efficiency	99.97% of .3 microns
Adjustable Depth Stops	Yes
Container Capacity	10.14 oz.
Filter Life (Approx. container fillings)	200
Auto shut off time	After 2 seconds
Container Hole Count Capacity	25 holes of dimension 5/8"x2"
HEPA filter	Yes
Length	22-3/4 in
Weight	3.5 lbs
Maximum Hole Diameter	1.125"
