Makita

Dust Extractor Attachment with HEPA Filter Cleaning Mechanism (DX05)

SKU: DX05
MPN: DX05
Lead Time: Typical lead time for Makita products is 1-2 weeks.
UPC: 088381540254
$170.54 each
Hurry up! Current stock:

Product Description

The Dust Extractor Attachment with HEPA Filter (model DX05) is for use with the 18V LXT® Cordless Brushless 11/16" Rotary Hammer (XRH12). The DX06 Dust Collection Vacuum Attachment features a HEPA filter engineered to capture 99.97% of dust particles (size .3 microns and larger) for improved dust collection and OSHA Table 1 compliance. The Dust Extractor Attachment is powered by a separate motor allowing the rotary hammer to consistently maintain peak drilling performance. The high-capacity dust container is transparent and provides an accurate level indicator of collected material. The container captures concrete dust during drilling; activated by the tool and provides a 3-second delay to help capture remaining dust. With a quick release, the dust container can be easily detached from the dust collection attachment when needed.

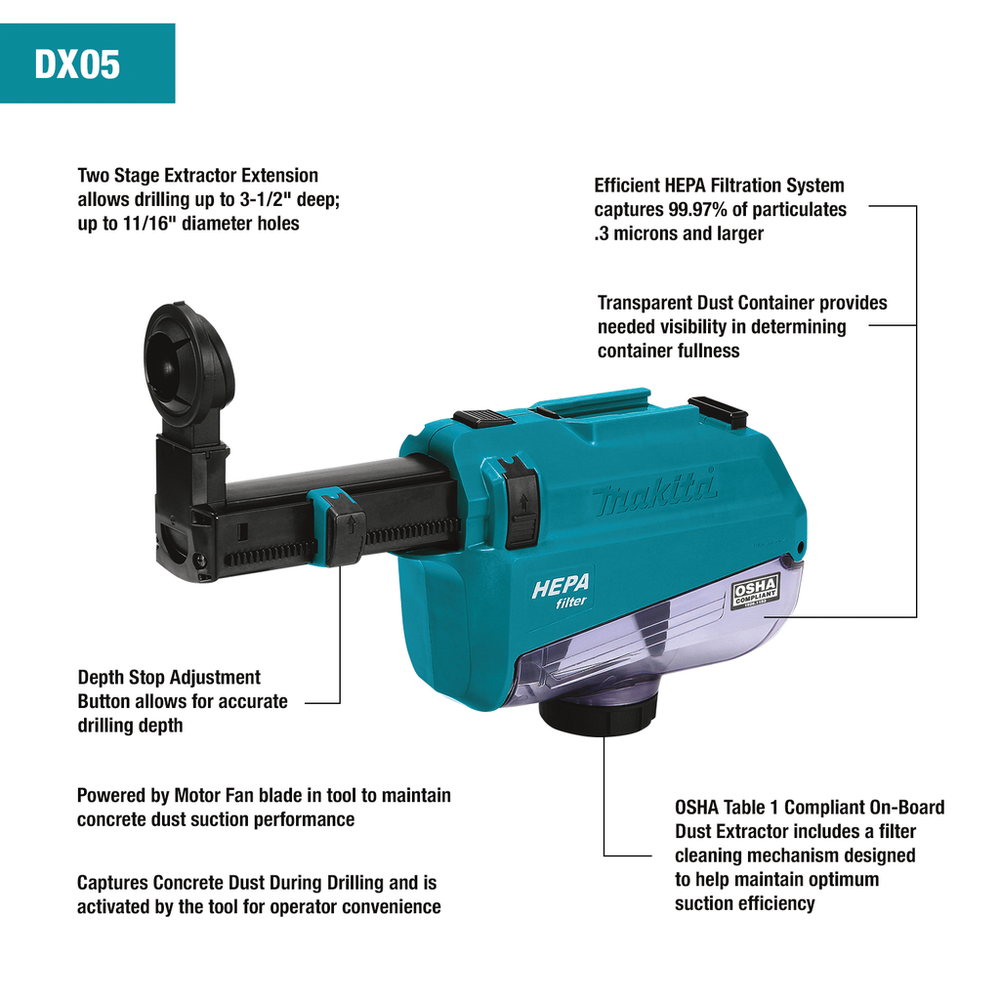

Features

  • Powered by motor fan blade in tool to maintain concrete dust suction performance
  • Captures concrete dust during drilling and is activated by the tool for operator convenience
  • Transparent dust container provides needed visibility in determining container fullness
  • Extraction extension allows drilling up to 3-1/2" deep and up to 11/16" diameter holes
  • Compatible with Makita 18V LXT® Rotary Hammer model XRH12
  • OSHA Table 1 compliant on-board dust extractor includes a filter cleaning mechanism designed to help maintain optimum suction efficiency
  • Efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger
  • Depth stop adjustment button allows for accurate drilling depth

Manuals

Documents

Specifications

HEPA filterYes
Filter Life (Approx. container fillings)200
Type (DX Concrete & Masonry)Dust Extractor Attachment
Container Hole Count Capacity50 holes of dimension 3/8"x2-3/8"
Adjustable Depth StopsYes
Container Capacity13.52 oz.
Max. Hole Depth3-3/4"
Equipped Filter Efficiency99.97% of .3 microns
Type (Concrete & Masonry Accessories)Dust Extraction Accessories
Auto shut off timeAfter 0 seconds
Weight2 lbs
Maximum Hole Diameter.687"
Length17 in
