Scotch® High Performance Fine Line Tape 4740, 30 mm x 50 m, 40 Roll/Case - 7100381072

Name: Scotch® High Performance Fine Line Tape 4740, 30 mm x 50 m, 40 Roll/Case - 7100381072
Brand: 3M Products & Supplies
SKU: 7100381072
Price: 3384.76 USD
Availability: InStock

Sold As: 40-Pack

SKU: 7100381072

MPN: 7100381072

Stock Item: Stock items typically ship within 2-3 business days

UPC: 00068060763570

3M ID: UU013899099

$3,384.76 ($84.62 / Count)

Hurry up! Current stock:

Quantity:

Product Description

Scotch® High Performance Fine Line Tape 4740 is a pressure-sensitive, solventless adhesive tape engineered to resist lifting and withstand high temperatures for two-tone paint applications in automotive OEM, specialty vehicle, and the aerospace markets. With a tape thickness of 5.2 mil (0.13 mm), it meets the demands of challenging operations and is designed to remove cleanly with no edge residue, delivering professional and consistent results. Its exceptional conformability allows instant and secure adhesion onto steel, intricate surfaces, depressed areas, and sharp curves. The versatility of the tape makes it ideal for precision work involving simple or complex patterns in automotive fascia, custom two-tone, and other critical masking applications. Scotch® High Performance Fine Line Tape 4740 can endure multiple paint-bake cycles, handling temperatures as high as 320 °F (160 °C) for up to 60 minutes and 356 °F (180 °C) for up to 10 minutes. The water-based adhesive reduces solvent usage during product formulation and manufacturing by 80% compared to similar 3M solvent-based fine line tapes. These benefits of excellent conformability, high-temperature resistance, clean removal, and a solventless adhesive allow this tape to deliver professional paint lines and reduce inefficiencies or rework caused by adhesive residue and ghosting. Elevate your operations with this reliable solution that helps you achieve crisp paint lines and a quality application.

Features

HIGHLY VERSATILE: Ideal for precision work involving simple or complex patterns in automotive fascia, custom two-tone, and other critical masking applications

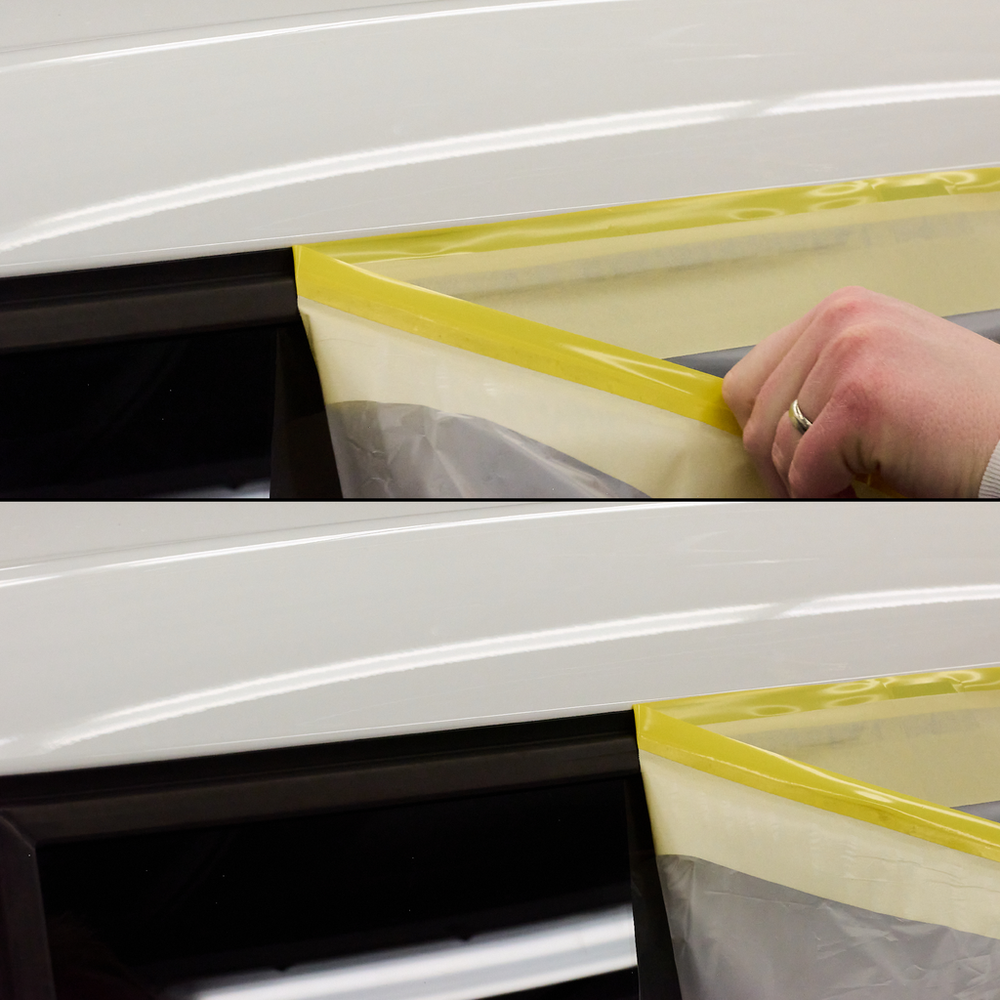

REMOVES CLEANLY: Designed to remove cleanly with no edge residue or ghosting, delivering professional and consistent results
EXCEPTIONAL CONFORMABILITY: Allows instant and secure adhesion to steel, intricate surfaces, depressed areas, and sharp curves
FOR CRITICAL PAINT APPLICATIONS: Expertly formulated for two-tone paint applications in the automotive OEM, specialty vehicle, and aerospace markets
HIGH-TEMPERATURE RESISTANCE: Operates in temperatures as high as 320 °F (160 °C) for up to 60 minutes and 356 °F (180 °C) for up to 10 minutes
SOLVENTLESS ADHESIVE TECHNOLOGY: Uses a pressure-sensitive, solventless adhesive that adheres to complex surfaces and resists lifting, even on irregular areas

Spec Sheet

Downloads

Spec Sheet

Document Brochures

Safety Data Sheet

Specifications

Shelf Life	547
Core Size (Metric)	76.2
Overall Width (Metric)	30.0
Overall Width (Metric) UOM	mm
Country of Origin	Japan
Overall Width (Imperial)	1.181
Tensile Strength (Metric)	42.7
Features	Clean Removal; Easy to Use; Removable; Residue-free Removable
Core Size (Imperial) UOM	in
Overall Length (Imperial)	54.681
Backing (Carrier) Material	Polyolefin FIlm
Maximum Operating Temperature (Celsius)	180.0
Overall Width (Imperial) UOM	in
Shelf Life UOM	Month
Application	Automotive Masking; Fascia Painting; Fine Line Masking; Fine Lines; Masking Solution; Masking for Painting; Paint Baking; Paint Masking; Paint Preparation Masking; Premium Masking; Surface Preparation for Painting
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Clean Removal	Yes
Overall Length (Imperial) UOM	yd
Elongation at Break	1353%
Indoor/Outdoor	Indoor
Tensile Strength (Metric) UOM	N/cm
Performance Level	Specialty High Temperature
Maximum Operating Temperature (Celsius) UOM	Degree
Core Size (Metric) UOM	mm
Adhesive Type	Acrylic
Industries	Aerospace, Automotive, Specialty Vehicles, Transportation
Product Color	Yellow
Overall Length (Metric)	50.0
Maximum Operating Temperature (Fahrenheit)	356.0
Overall Length (Metric) UOM	m
Core Size (Imperial)	3.0
