3M Products & Supplies

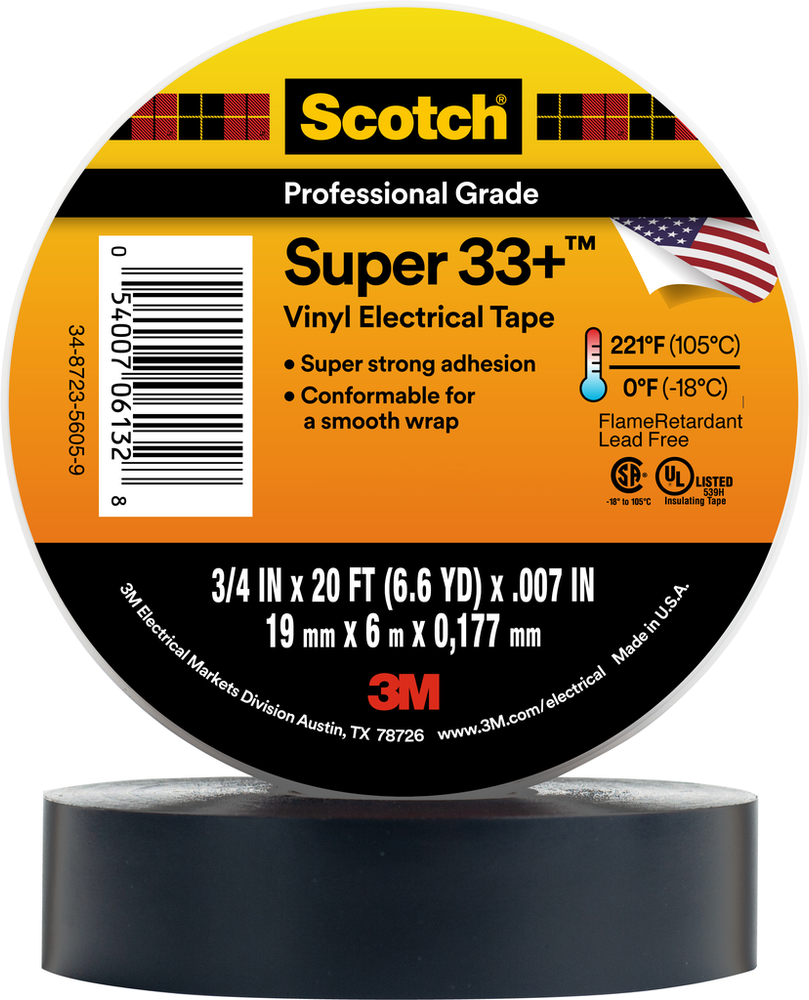

Scotch® Super 33+ Vinyl Electrical Tape, 3/4 in x 20 ft, Black, 10 rolls/carton, 100 rolls/Case - 7000058432

Sold As: 100-Pack
SKU: 7000058432
MPN: 7000058432
For an accurate lead time please contact us
UPC: 00054007061304
3M ID: 80610833800
5 Digit UPC: 6130
$368.60 ($3.69 / Count)
Hurry up! Current stock:

Product Description

Scotch® Super 33+™ Vinyl Electrical Tape is a professional-grade tape that provides electrical insulation for low to high-voltage wires and cables rated up to 600V, with a total thickness of 7 mil (0.178 mm) when applied. This tape is designed with a pressure-sensitive rubber resin adhesive and elastic PVC backing, providing electrical and mechanical protection for a variety of applications. It is known for its versatility, excelling in solid dielectric cable insulation, synthetic cable insulations, jackets, rubber and synthetic splicing compounds, as well as wire and cable harnessing. In critical indoor and outdoor environments, this tape conforms to irregular shapes to create a secure seal on electrical connections and other essential tasks. Its durability allows it to withstand various weather conditions, making it a reliable solution for long-lasting performance. With excellent insulation and adhesion properties, the tape can be used within temperatures from 0 °F to 221 °F (-18 °C to 105 °C), meeting the requirements for flame retardancy. Scotch® Super 33+™ Vinyl Electrical Tape is UL 510 Listed, CSA C22.2 No.197 and VDE Mark Certificate no. 130462; Type 7: IEC 60454-3-1-7/F-PVCP/90 Certified, IEC 60454-3-1-7/F-PVCP/90, and RoHS Compliant. Consider this tape for your next industrial application.

Features

  • MULTI-PURPOSE: Excels in solid dielectric cable insulation, synthetic and rubber cable splicing, cable harnessing, and more
  • ENHANCED DEFENSE: Provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes
  • TEMPERATURE-RESISTANT: Performs within temperatures from 0 °F to 221 °F (-18 °C to 105 °C)
  • HIGH CONFORMABILITY: Securely holds on irregular shapes to create a secure seal
  • ENDURES THE ELEMENTS: Resists various weather conditions, making it a reliable solution for long-lasting performance
  • RELIABLE PERFORMANCE: Delivers dependable insulation for low to high-voltage wires and cables up to 600V
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Overall Width (Metric)19.0
ApplicationElectrical Maintenance; Insulation
Overall Length (Metric) UOMm
Insulation Resistance> 10^12 ohms
Overall Length (Metric)6.0
Maximum Operating Temperature (Fahrenheit)221.0
Overall Width (Metric) UOMmm
Adhesive TypeRubber
Overall Length (Imperial)20.0
Minimum Operating Temperature (Celsius)-18.0
Minimum Operating Temperature (Celsius) UOMDegree
Voltage Rating600 V
Overall Width (Imperial)0.75
Tape GradeProfessional
Maximum Operating Temperature (Celsius) UOMDegree
Product MarketsElectrical Equipment Manufacturing
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit)0.0
Specifications MetCSA Certified, IEC 60454-3-1-7/F-PVC P/90, UL Listed, VDE Marks License
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)105.0
Product CategoryElectrical Tapes
Shelf Life UOMYear
Overall Length (Imperial) UOMft
