3M Products & Supplies

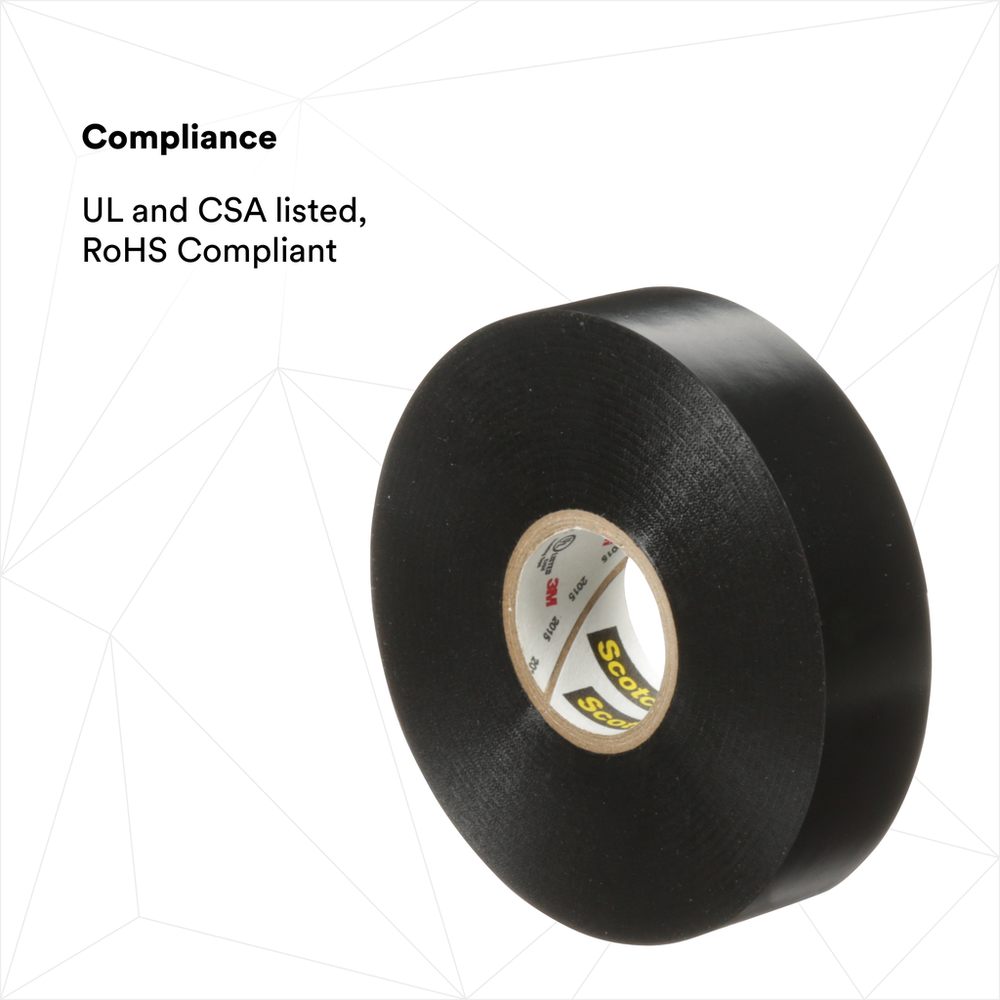

Scotch® Vinyl Electrical Tape Super 88, 3/4 in x 44 ft, Black, 10 rolls/carton, 100 rolls/Case - 7000031579

Sold As: 10-Pack
SKU: 7000031579
MPN: 7000031579
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007103073
3M ID: 80610833842
5 Digit UPC: 10307
$65.18 ($6.52 / Count)
Hurry up! Current stock:

Product Description

Scotch® Vinyl Electrical Tape Super 88 is an all-weather, premium-grade tape created to provide a protective jacket and primary electrical insulation for splices up to 600V, with a total thickness of 8.5 mil (0.216 mm) when applied. The thickness of the tape broadens the range of applications, particularly heavy-duty operations. This tape is engineered with pressure-sensitive rubber resin adhesive and elastic PVC backing, providing electrical and mechanical protection for a variety of applications. It is known for its strength and reliability, excelling in extreme indoor and outdoor conditions to help protect electrical conductors from UV exposure. Whether the application involves low-voltage primary or secondary insulation, cable jacketing, or mechanical protection and padding, Scotch® Vinyl Electrical Tape Super 88 offers excellent insulation and adhesion properties. Meeting the requirements for flame retardancy, the tape can be used within temperatures from 0 °F to 221 °F (-18 °C to 105 °C) and is UL 510 Listed, CSA C22.2 No.197 and VDE Mark Certificate no. 130462; Type 7: IEC 60454-3-1-7/F-PVCP/90, IEC 60454-3-1-7/F-PVCP/90 Certified, and RoHS Compliant. Discover this tape for reliable environmental protection and performance.

Features

  • TEMPERATURE-RESISTANT: Performs within temperatures from 0 °F to 221 °F (-18 °C to 105 °C)
  • MULTI-PURPOSE: Excels in low-voltage primary and secondary insulation, cable jacketing, mechanical protection, and padding
  • BUILT STRONG: Engineered with a rubber-resin adhesive, PVC backing, and heavy tape thickness for excellent electrical and mechanical protection that promotes faster build-up with fewer wraps
  • RELIABLE PERFORMANCE: Provides a protective jacket and primary electrical insulation for splices up to 600V in harsh indoor, extreme, and exposed outdoor applications
  • ENHANCED DEFENSE: Provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes
  • ENDURES THE ELEMENTS: Protects in extreme environments, making it a reliable solution for long-lasting performance
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Total Tape Thickness without Liner (Metric) UOMmm
Voltage Rating600 V
Maximum Operating Temperature (Fahrenheit)220.0
Overall Width (Imperial)0.75
Total Tape Thickness without Liner (Imperial) UOMmil
ApplicationElectrical Maintenance; Insulation
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Shelf Life UOMYear
Overall Width (Metric)19.0
Total Tape Thickness without Liner (Metric)0.22
Maximum Operating Temperature (Celsius) UOMDegree
Specifications MetCSA Certified, IEC 60454-3-1-7/F-PVC P/90, UL Listed, VDE Marks License
Overall Length (Imperial) UOMft
Overall Length (Metric)13.4
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric) UOMmm
Insulation Resistance> 10^6 megohms
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)-18.0
Overall Length (Imperial)44.0
Total Tape Thickness without Liner (Imperial)8.5
Overall Length (Metric) UOMm
Elongation at Break250
Product CategoryElectrical Tapes
Backing (Carrier) MaterialPVC
