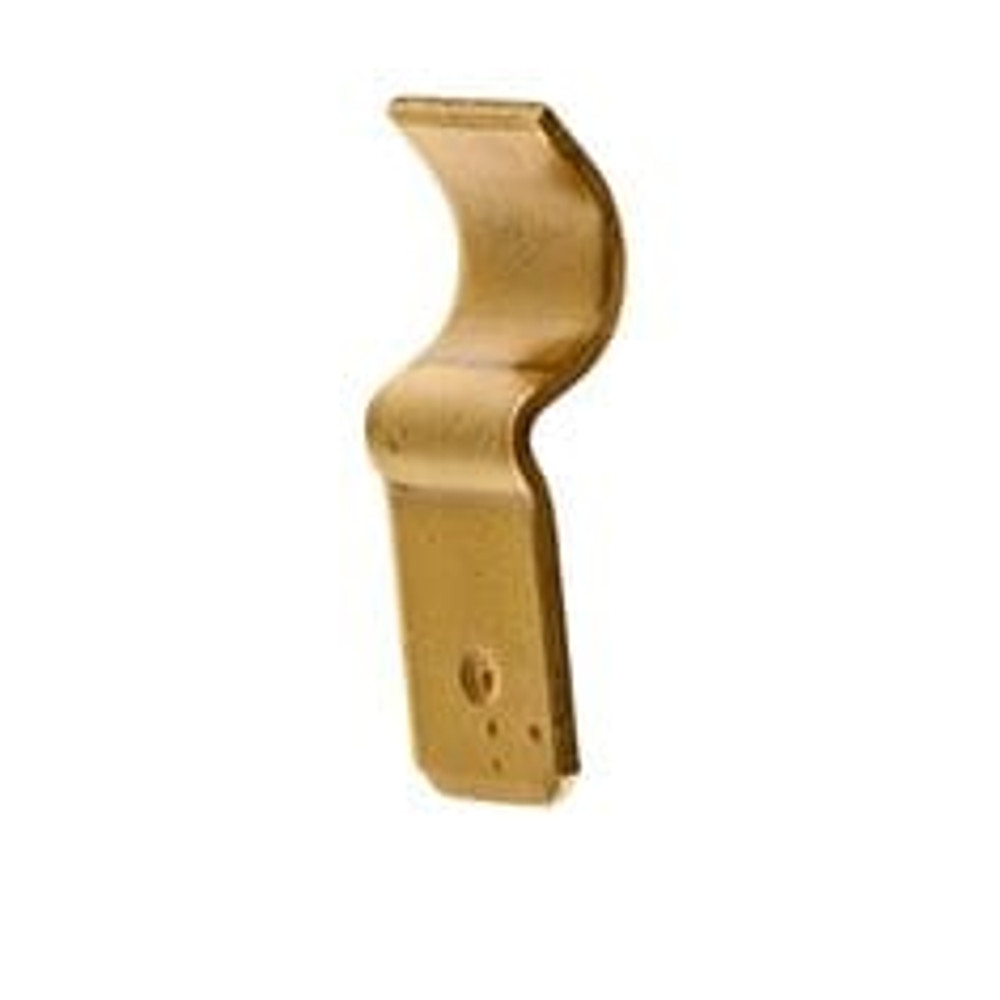

3M Adapter, Non-Insulated Double Male-Female, 77-250-A

Sold As: 1000-Pack
SKU: 7100165131
Made to Order: For a lead time estimate, please send your request to orders@strobelssupply.com
UPC: 00051128574249
3M ID: 80611440241
MPN: 77-250-A
$139.29 ($0.14 / Count)
Hurry up! Current stock:
Product Description
3M Scotchlok Non-Insulated Double Male-Female Adapters interconnects 2 disconnects that are already attached to wires. The adapter withstands a maximum temperature of 347 degrees F (175 degrees C). Durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Extra Details

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Features a non-insulated, butted-seam barrel
  • Interconnects two connectors that are already attached to wires
  • Made of durable brass for good conductivity and tin-plated for corrosion resistance
  • Mates with 0.25-in wide female and male tab
  • Perfect for various wire tapping and splicing applications
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
