3M Products & Supplies

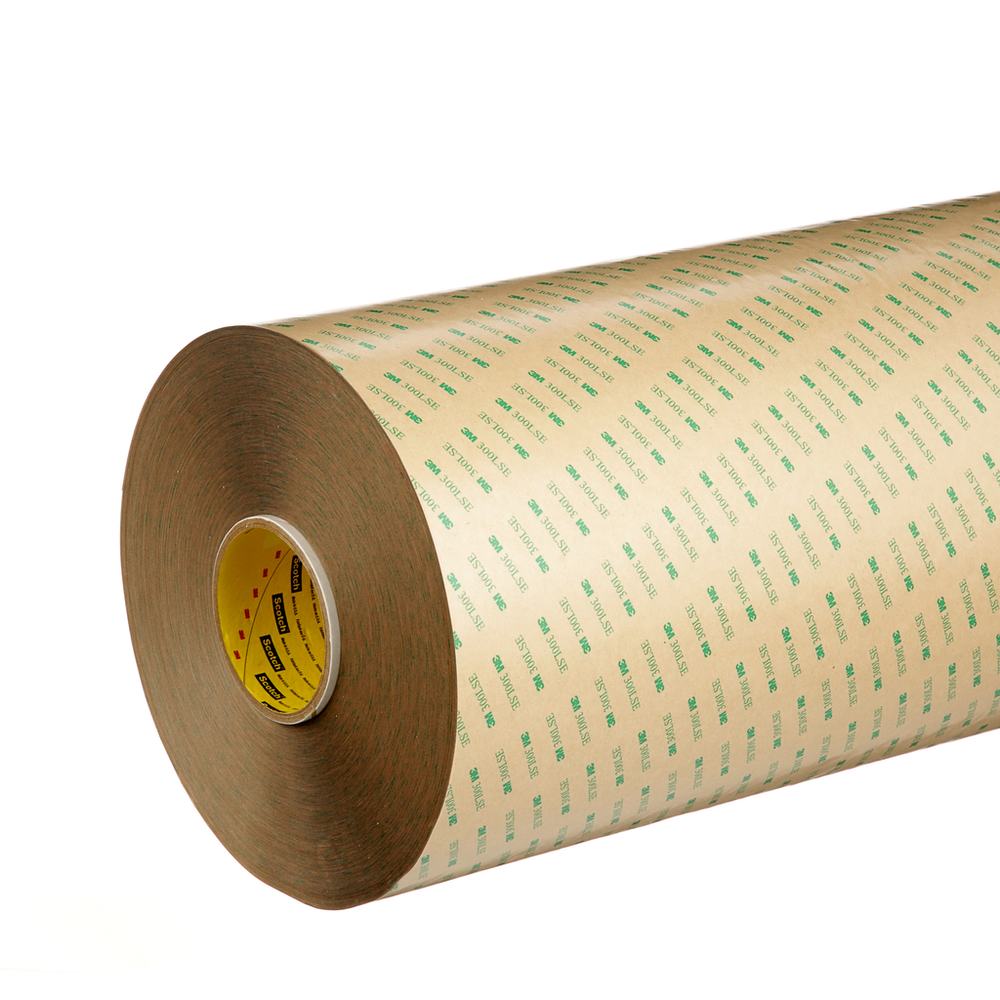

3M™ Adhesive Transfer Tape 9472LE, Clear, 30 in x 180 yd, 5.2 mil, Roll - 7000143051

SKU: 7000143051
MPN: 7000143051
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00063806451575
5 Digit UPC: 45157
$2,905.15 each
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9472LE is a versatile, market proven, 5 mil (0.13 mm) transfer tape on a printed release liner. Featuring 3M™ 300LSE acrylic adhesive, this tape has a long and proven history of reliably bonding a wide variety of similar and dissimilar materials such as metals, most plastics, glass, papers and painted surfaces.

Features

  • Meets a wide variety of automotive and OEM specifications
  • Adhesive provides excellent holding power and anti-lifting properties
  • Excellent bond to low surface energy substrates including powder coatings and plastics such as polypropylene (PP)v
  • High adhesion to metals and high surface energy materials, making it suitable for bonding dissimilar substrates
  • Ideal solution for general purpose attachment and assemblies of a wide variety of materials
  • Good resistance to industrial chemicals, consumer chemicals, moisture and humidity
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Shelf Life UOMMonth
Total Tape Thickness without Liner (Imperial)5.2
Primary Liner Thickness (Imperial)4.2
Primary Liner58# Polycoated Kraft Paper
Specifications MetUL 969
Maximum Operating Temperature (Celsius)149.0
Maximum Operating Temperature (Fahrenheit)300.0
Overall Length (Imperial)180.0
Overall Width (Metric)762.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Primary Liner Thickness (Metric) UOMmm
Primary Liner Thickness (Metric)0.11
Overall Width (Imperial)30.0
Indoor/OutdoorIndoor/Outdoor
Maximum Operating Temperature (Fahrenheit) UOMDegree
IndustriesAppliance, Automotive, Converter Solutions, Electronics, Furniture, General Industrial, Marine, Point of Purchase, Signage, Specialty Vehicles, Transportation, Woodworking
Minimum Operating Temperature (Celsius) UOMDegree
Primary Liner ColorTan
Total Tape Thickness without Liner (Metric)0.132
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Length (Metric)164.59
Product ColorTransparent
Primary Liner Thickness (Imperial) UOMmil
Number of Adhesive SidesDouble-sided
Adhesive TypeLow Surface Energy Acrylic Adhesive 300LSE
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial) UOMyd
ApplicationBonding; Commerical Signs; Emblem Attachment; Gasket Assembly; Interior Gasket & Seal Attachment; Large Surface Lamination Assembly; Mounting & Trim Attachment; Trim & Molding Attachment
Minimum Operating Temperature (Celsius)-40.0
