3M Products & Supplies

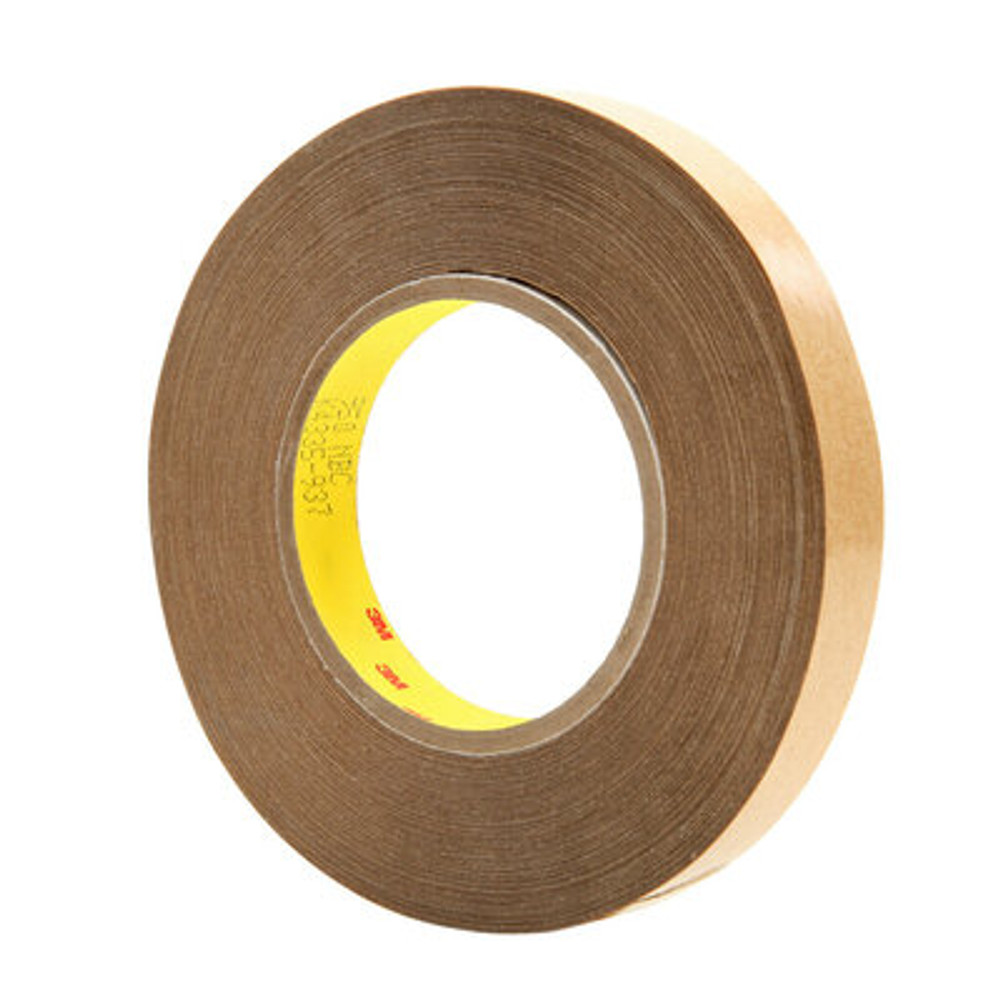

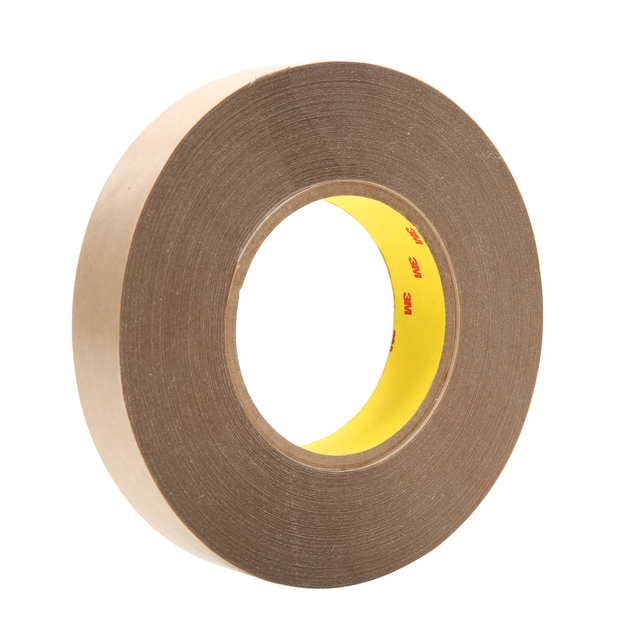

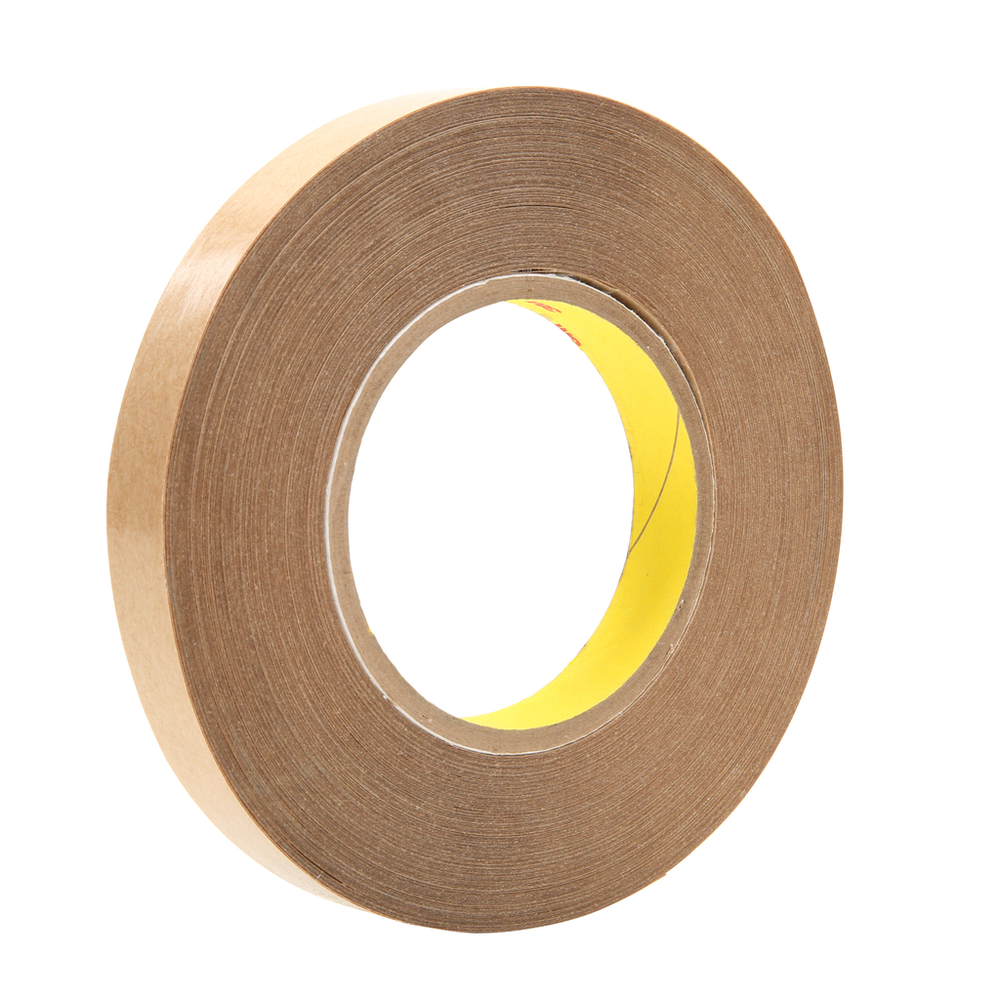

3M™ Adhesive Transfer Tape 950, Clear, 3/4 in x 180 yd, 5 mil, 12 Roll/Case - 7010372838

Sold As: 12-Pack
SKU: 7010372838
MPN: 7010372838
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200407987
3M ID: 70006255791
5 Digit UPC: 40798
$1,405.90 ($117.16 / Count)
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 950 is a 300 high strength acrylic adhesive on a 3.5 mil, 60 lb densified kraft paper liner.

Features

  • Used as a general purpose transfer tape for a variety of high tack, thin applications. Ideal for a wide variety of similar and dissimilar materials where an aggressive adhesive with high initial adhesion is desired. Splicing of film, foils, fabrics. Laminating foams, photos, fabrics, metal or plastic nameplates.
  • Good UV resistance. Good chemical resistance. Ideal for high surface energy (HSE) and low surface energy (LSE) materials.
  • Thicker version of 927
  • 5.0 mil adhesive transfer tape. 60 lb densified kraft paper liner. For a wide variety of materials. 300 high strength acrylic adhesive. UL approved. Meets US government specification MIL-P-19834B, Amendment 1.
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit) UOMDegree
Units per Case12.0
IndustriesAppliance, Converter Solutions, Craft, Electronics, Furniture, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Signage, Transportation, Woodworking
Minimum Operating Temperature (Fahrenheit)-40.0
Units per Case UOMRoll
Overall Length (Imperial)180.0
Secondary Liner Thickness (Imperial)3.0
Backing (Carrier) Thickness (Metric)0.13
Secondary Liner ColorTan
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Metric) UOMmm
Primary Liner ColorTan
Indoor/OutdoorIndoor/Outdoor
Total Tape Thickness without Liner (Metric)0.127
Number of Adhesive SidesDouble-sided
Minimum Operating Temperature (Celsius)-40.0
Product ColorTranslucent
Overall Length (Imperial) UOMyd
Secondary Liner Thickness (Metric)0.07
Overall Length (Metric)164.59
Overall Width (Metric)19.05
Shelf Life UOMMonth
Secondary Liner Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial) UOMmil
Overall Width (Imperial)0.75
Primary LinerGlassine Paper
Primary Liner Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Secondary Liner58# Polycoated Kraft Paper
Total Tape Thickness without Liner (Metric) UOMmm
Primary Liner Thickness (Imperial)3.2
Total Tape Thickness without Liner (Imperial)5.0
ApplicationBonding; Commerical Signs; Core Starting; Emblem Attachment; Flying splices for commercial printing; Gasket Assembly; Interior Gasket & Seal Attachment; Large Surface Lamination Assembly; Overlap Splice; Zero-Speed and General Splicing
Overall Width (Imperial) UOMin
Secondary Liner Thickness (Imperial) UOMmil
Overall Length (Metric) UOMm
Minimum Operating Temperature (Celsius) UOMDegree
Specifications MetUL 969
Primary Liner Thickness (Metric)0.08
Maximum Operating Temperature (Fahrenheit)250.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Adhesive TypeHigh Strength Acrylic Adhesive 300
