3M Products & Supplies

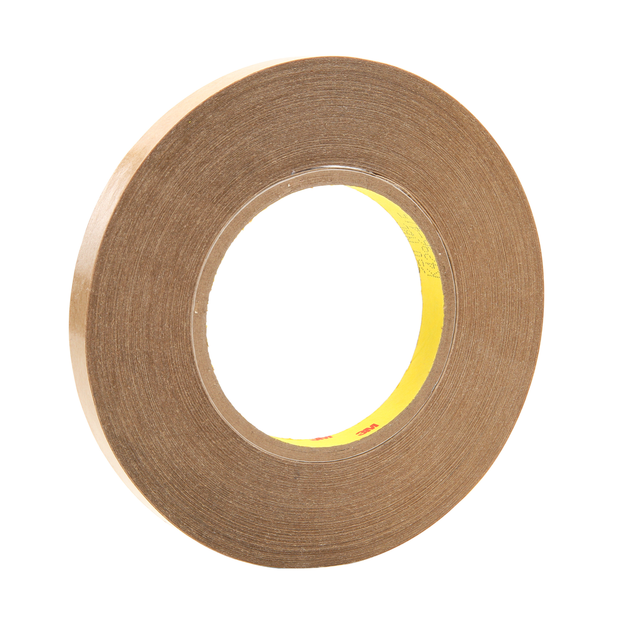

3M™ Adhesive Transfer Tape 950, Clear, 1 3/4 in x 180 yd, 5 mil, 6 Roll/Case - 7010334986

Sold As: 24-Pack
SKU: 7010334986
MPN: 7010334986
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115313943
3M ID: 70006434255
5 Digit UPC: 31394
$6,558.61 ($273.28 / Count)
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 950 is a 300 high strength acrylic adhesive on a 3.5 mil, 60 lb densified kraft paper liner.

Features

  • Good UV resistance. Good chemical resistance. Ideal for high surface energy (HSE) and low surface energy (LSE) materials.
  • Thicker version of 927
  • Used as a general purpose transfer tape for a variety of high tack, thin applications. Ideal for a wide variety of similar and dissimilar materials where an aggressive adhesive with high initial adhesion is desired. Splicing of film, foils, fabrics. Laminating foams, photos, fabrics, metal or plastic nameplates.
  • 5.0 mil adhesive transfer tape. 60 lb densified kraft paper liner. For a wide variety of materials. 300 high strength acrylic adhesive. UL approved. Meets US government specification MIL-P-19834B, Amendment 1.
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Units per Case6.0
Number of Adhesive SidesDouble-sided
Overall Width (Imperial) UOMin
Primary Liner Thickness (Imperial)3.2
Primary Liner Thickness (Imperial) UOMmil
Secondary Liner Thickness (Imperial)3.0
Total Tape Thickness without Liner (Imperial)5.0
Adhesive TypeHigh Strength Acrylic Adhesive 300
Overall Width (Imperial)1.75
Backing (Carrier) Thickness (Metric) UOMmm
Secondary Liner Thickness (Metric)0.07
Secondary Liner ColorTan
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial) UOMyd
Overall Width (Metric)44.45
Primary LinerGlassine Paper
ApplicationBonding; Commerical Signs; Core Starting; Emblem Attachment; Flying splices for commercial printing; Gasket Assembly; Interior Gasket & Seal Attachment; Large Surface Lamination Assembly; Overlap Splice; Zero-Speed and General Splicing
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric)0.127
Minimum Operating Temperature (Fahrenheit)-40.0
Secondary Liner58# Polycoated Kraft Paper
Primary Liner Thickness (Metric) UOMmm
Indoor/OutdoorIndoor/Outdoor
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Secondary Liner Thickness (Metric) UOMmm
Units per Case UOMRoll
Minimum Operating Temperature (Celsius) UOMDegree
Primary Liner Thickness (Metric)0.08
Secondary Liner Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.13
Overall Length (Metric)164.59
Overall Length (Imperial)180.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
Primary Liner ColorTan
Shelf Life UOMMonth
Specifications MetUL 969
IndustriesAppliance, Converter Solutions, Craft, Electronics, Furniture, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Signage, Transportation, Woodworking
Minimum Operating Temperature (Celsius)-40.0
Product ColorTranslucent
Maximum Operating Temperature (Fahrenheit)250.0
