3M Products & Supplies

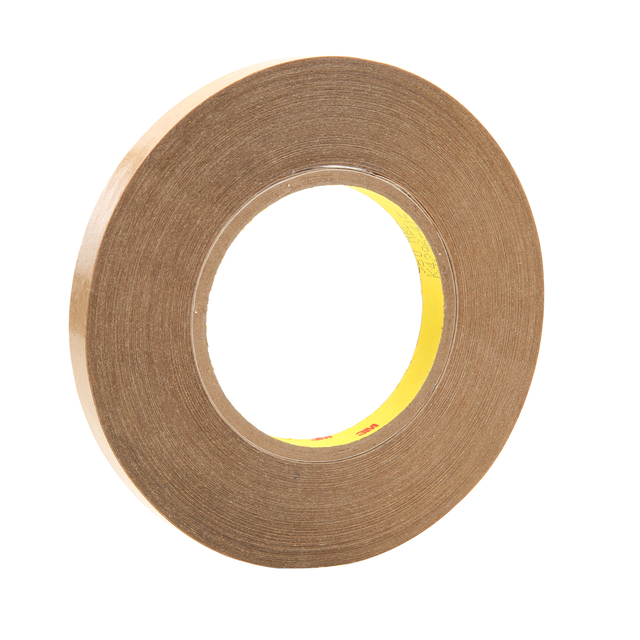

3M™ Adhesive Transfer Tape 950, Clear, 1 in x 180 yd, 5 Mil, 9/Case - 7010334401

Sold As: 9-Pack
SKU: 7010334401
MPN: 7010334401
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200407970
3M ID: 70006255783
5 Digit UPC: 40797
$1,405.89 ($156.21 / Count)
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 950 is a 300 high strength acrylic adhesive on a 3.5 mil, 60 lb densified kraft paper liner.

Features

  • Thicker version of 927
  • Used as a general purpose transfer tape for a variety of high tack, thin applications. Ideal for a wide variety of similar and dissimilar materials where an aggressive adhesive with high initial adhesion is desired. Splicing of film, foils, fabrics. Laminating foams, photos, fabrics, metal or plastic nameplates.
  • Good UV resistance. Good chemical resistance. Ideal for high surface energy (HSE) and low surface energy (LSE) materials.
  • 5.0 mil adhesive transfer tape. 60 lb densified kraft paper liner. For a wide variety of materials. 300 high strength acrylic adhesive. UL approved. Meets US government specification MIL-P-19834B, Amendment 1.
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Secondary Liner58# Polycoated Kraft Paper
Product ColorTranslucent
Primary LinerGlassine Paper
Minimum Operating Temperature (Celsius)-40.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)5.0
Overall Width (Imperial)1.0
Shelf Life UOMMonth
Primary Liner Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)250.0
Specifications MetUL 969
Secondary Liner Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial) UOMmil
Units per Case9.0
Backing (Carrier) Thickness (Metric)0.13
Primary Liner Thickness (Metric)0.08
Adhesive TypeHigh Strength Acrylic Adhesive 300
IndustriesAppliance, Converter Solutions, Craft, Electronics, Furniture, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Signage, Transportation, Woodworking
Overall Length (Metric)164.59
Overall Length (Imperial) UOMyd
Primary Liner ColorTan
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)25.4
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Width (Imperial) UOMin
Overall Width (Metric) UOMmm
Secondary Liner Thickness (Imperial)3.0
ApplicationBonding; Commerical Signs; Core Starting; Emblem Attachment; Flying splices for commercial printing; Gasket Assembly; Interior Gasket & Seal Attachment; Large Surface Lamination Assembly; Overlap Splice; Zero-Speed and General Splicing
Number of Adhesive SidesDouble-sided
Secondary Liner Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Primary Liner Thickness (Imperial)3.2
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
Secondary Liner ColorTan
Total Tape Thickness without Liner (Imperial) UOMmil
Indoor/OutdoorIndoor/Outdoor
Overall Length (Imperial)180.0
Units per Case UOMRoll
Total Tape Thickness without Liner (Metric)0.127
Secondary Liner Thickness (Metric)0.07
