3M Products & Supplies

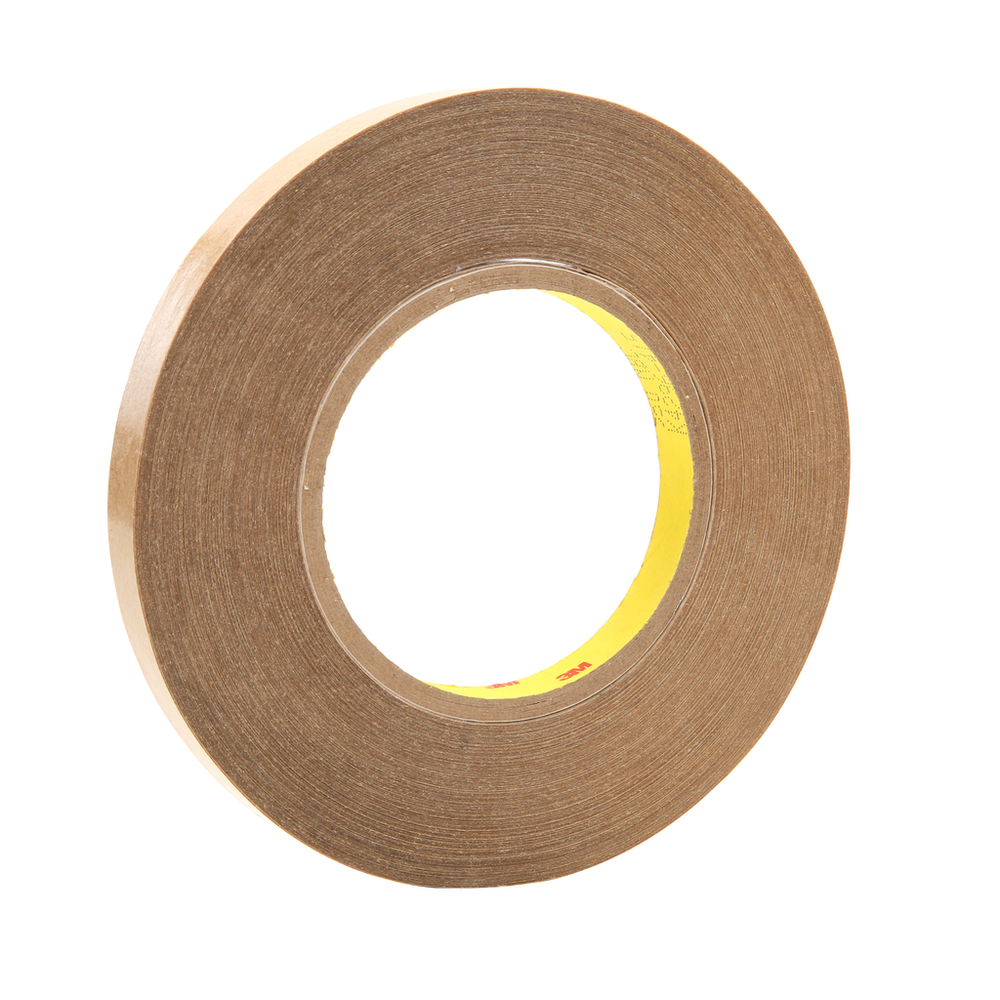

3M™ Adhesive Transfer Tape 950, Clear, 0.18 in x 180 yd, 5 Mil, 36/Case - 7010372443

Sold As: 36-Pack
SKU: 7010372443
MPN: 7010372443
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200873430
3M ID: 70006140092
5 Digit UPC: 87343
$1,053.87 ($29.27 / Count)
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 950 is a 300 high strength acrylic adhesive on a 3.5 mil, 60 lb densified kraft paper liner.

Features

  • 5.0 mil adhesive transfer tape. 60 lb densified kraft paper liner. For a wide variety of materials. 300 high strength acrylic adhesive. UL approved. Meets US government specification MIL-P-19834B, Amendment 1.
  • Thicker version of 927
  • Used as a general purpose transfer tape for a variety of high tack, thin applications. Ideal for a wide variety of similar and dissimilar materials where an aggressive adhesive with high initial adhesion is desired. Splicing of film, foils, fabrics. Laminating foams, photos, fabrics, metal or plastic nameplates.
  • Good UV resistance. Good chemical resistance. Ideal for high surface energy (HSE) and low surface energy (LSE) materials.
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Primary Liner Thickness (Metric)0.08
Overall Width (Imperial)0.18
Secondary Liner Thickness (Imperial)3.0
Overall Width (Metric)4.572
Primary LinerGlassine Paper
Primary Liner ColorTan
Adhesive TypeHigh Strength Acrylic Adhesive 300
Specifications MetUL 969
Minimum Operating Temperature (Fahrenheit) UOMDegree
Shelf Life UOMMonth
Secondary Liner58# Polycoated Kraft Paper
Overall Length (Imperial) UOMyd
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit)250.0
Minimum Operating Temperature (Fahrenheit)-40.0
Units per Case UOMRoll
Secondary Liner Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius)-40.0
Total Tape Thickness without Liner (Imperial)5.0
Number of Adhesive SidesDouble-sided
Secondary Liner Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.127
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric)0.13
Backing (Carrier) Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial)3.2
Overall Width (Metric) UOMmm
ApplicationBonding; Commerical Signs; Core Starting; Emblem Attachment; Flying splices for commercial printing; Gasket Assembly; Interior Gasket & Seal Attachment; Large Surface Lamination Assembly; Overlap Splice; Zero-Speed and General Splicing
Primary Liner Thickness (Metric) UOMmm
Secondary Liner ColorTan
Primary Liner Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial)180.0
IndustriesAppliance, Converter Solutions, Craft, Electronics, Furniture, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Signage, Transportation, Woodworking
Indoor/OutdoorIndoor/Outdoor
Overall Length (Metric)164.59
Secondary Liner Thickness (Metric)0.07
Product ColorTranslucent
Units per Case36.0
