3M Products & Supplies

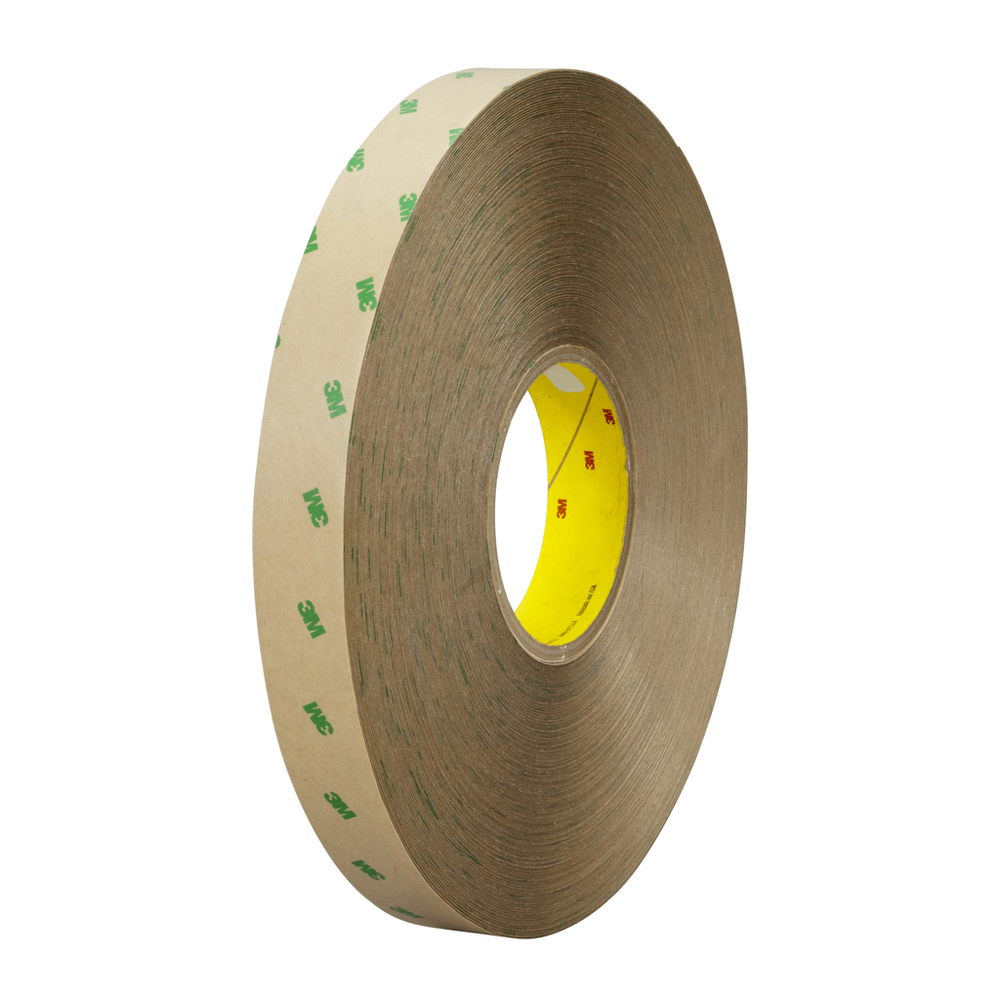

3M™ Adhesive Transfer Tape 9505, Clear, 24 in x 60 yd, 5 mil, 1 Roll/Case - 7000048624

SKU: 7000048624
MPN: 7000048624
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200246302
3M ID: 70006169224
5 Digit UPC: 24630
$387.17 each
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9505 features 3M™ Industrial Acrylic Adhesive 220, which provides a good bond to HSE materials. This 5.0 mil adhesive is applied to a 4.2 mil polycoated kraft (PCK) paper liner, which protects it until it is ready to be bonded to the substrate.

Features

  • PCK liner protects adhesive and peels away quickly for easy handling
  • 5 mil nominal 220 adhesive offers good sheer strength
  • Good peel adhesion to HSE (high surface energy) materials
  • Thicker adhesives improve wet-out and adhesion on textured surfaces
  • Economical solution for a variety of general bonding applications
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Primary Liner Thickness (Imperial)4.2
Units per Case1.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Adhesive TypeAcrylic
Overall Length (Metric)54.86
Primary Liner58# Polycoated Kraft Paper
Total Tape Thickness without Liner (Metric)0.12
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
Primary Liner ColorTan
Minimum Operating Temperature (Fahrenheit)-40.0
Primary Liner Thickness (Metric) UOMmm
Indoor/OutdoorIndoor/Outdoor
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)-40.0
Overall Width (Imperial) UOMin
Overall Width (Metric) UOMmm
IndustriesAerospace, Automotive, Converter Solutions, Electronics, General Industrial, Metalworking, Point of Purchase, Print, Signage, Woodworking
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Celsius)177.0
Primary Liner Thickness (Metric)0.11
Units per Case UOMRoll
Maximum Operating Temperature (Fahrenheit)350.0
Overall Width (Metric)609.6
Total Tape Thickness without Liner (Imperial)4.9
Overall Width (Imperial)24.0
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)60.0
Shelf Life UOMMonth
Overall Length (Imperial) UOMyd
Primary Liner Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
