3M Products & Supplies

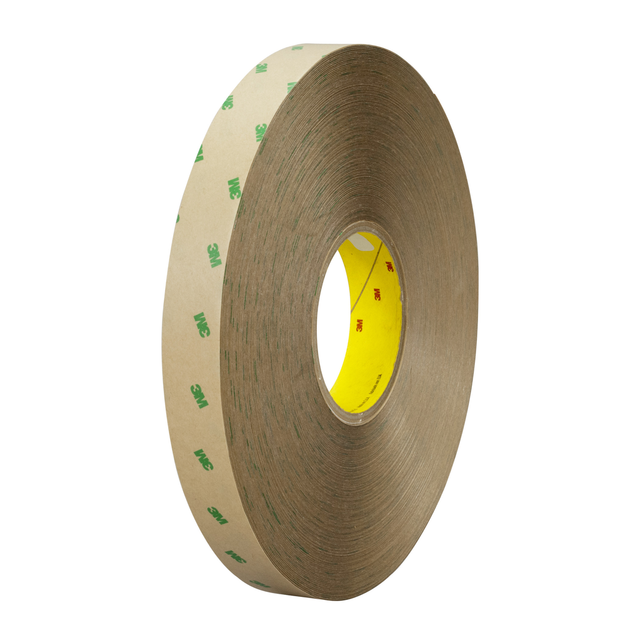

3M™ Adhesive Transfer Tape 9505, Clear, 24 in x 360 yd, 5 Mil, 1/Case - 7010295442

Sold As: 2-Pack
SKU: 7010295442
MPN: 7010295442
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115635830
3M ID: 70006735297
5 Digit UPC: 63583
$4,646.02 ($2323.01 / Count)
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9505 features 3M™ Industrial Acrylic Adhesive 220, which provides a good bond to HSE materials. This 5.0 mil adhesive is applied to a 4.2 mil polycoated kraft (PCK) paper liner, which protects it until it is ready to be bonded to the substrate.

Features

  • Thicker adhesives improve wet-out and adhesion on textured surfaces
  • 5 mil nominal 220 adhesive offers good sheer strength
  • Economical solution for a variety of general bonding applications
  • Good peel adhesion to HSE (high surface energy) materials
  • PCK liner protects adhesive and peels away quickly for easy handling
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Width (Imperial) UOMin
Indoor/OutdoorIndoor/Outdoor
Primary Liner Thickness (Metric)0.11
Primary Liner ColorTan
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)4.9
Primary Liner Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)0.12
Minimum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner58# Polycoated Kraft Paper
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit)-40.0
Minimum Operating Temperature (Celsius)-40.0
Shelf Life UOMMonth
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)177.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)24.0
Overall Length (Metric)329.18
IndustriesAerospace, Automotive, Converter Solutions, Electronics, General Industrial, Metalworking, Point of Purchase, Print, Signage, Woodworking
Primary Liner Thickness (Metric) UOMmm
Units per Case1.0
Overall Width (Metric)609.6
Overall Width (Metric) UOMmm
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
Units per Case UOMRoll
Total Tape Thickness without Liner (Imperial) UOMmil
Adhesive TypeAcrylic
Primary Liner Thickness (Imperial)4.2
Overall Length (Imperial)360.0
Maximum Operating Temperature (Fahrenheit)350.0
