3M Products & Supplies

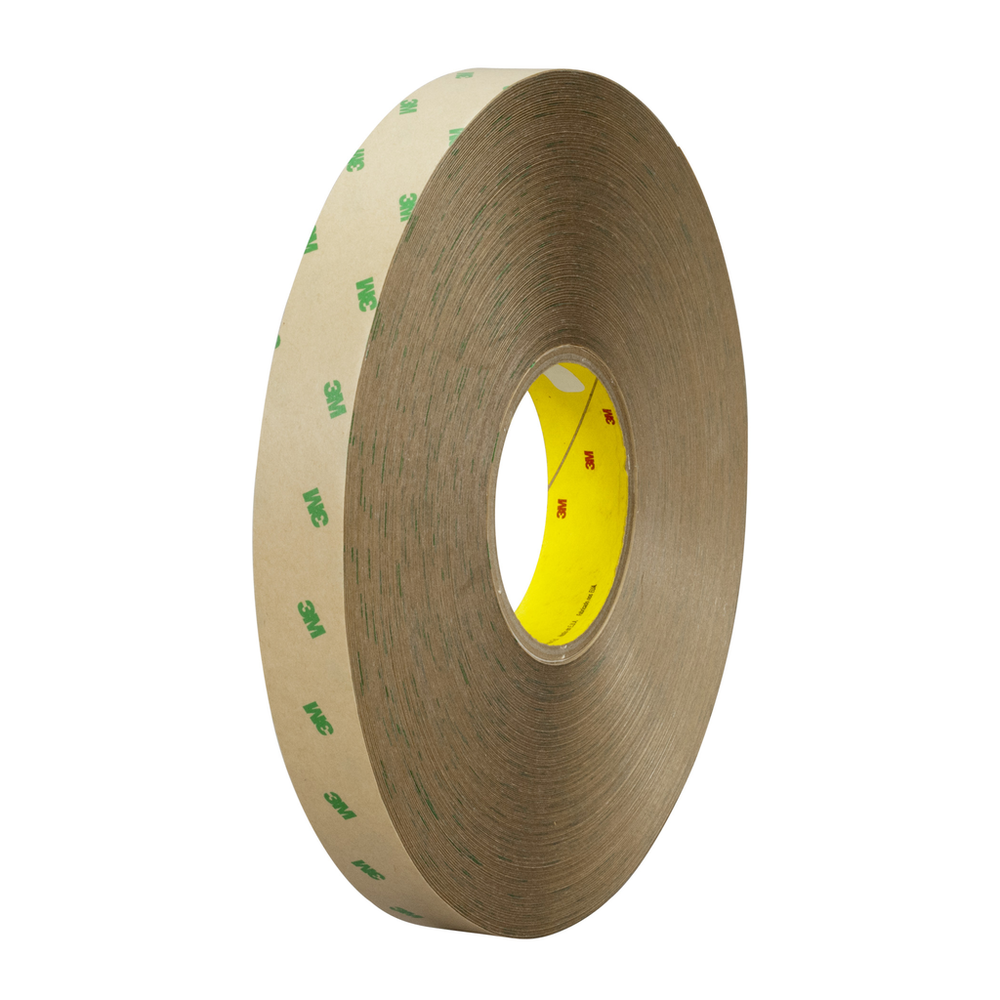

3M™ Adhesive Transfer Tape 9505, Clear, 54 in x 180 yd, 5 Mil, 1/Case - 7010372437

SKU: 7010372437
MPN: 7010372437
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200687617
3M ID: 70006136702
5 Digit UPC: 68761
$2,613.41 each
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9505 features 3M™ Industrial Acrylic Adhesive 220, which provides a good bond to HSE materials. This 5.0 mil adhesive is applied to a 4.2 mil polycoated kraft (PCK) paper liner, which protects it until it is ready to be bonded to the substrate.

Features

  • Thicker adhesives improve wet-out and adhesion on textured surfaces
  • Good peel adhesion to HSE (high surface energy) materials
  • PCK liner protects adhesive and peels away quickly for easy handling
  • Economical solution for a variety of general bonding applications
  • 5 mil nominal 220 adhesive offers good sheer strength
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Primary Liner Thickness (Imperial)4.2
Maximum Operating Temperature (Celsius)177.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)180.0
Overall Length (Imperial) UOMyd
Shelf Life UOMMonth
Units per Case UOMRoll
Primary Liner Thickness (Metric) UOMmm
Units per Case1.0
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Metric) UOMmm
Primary Liner58# Polycoated Kraft Paper
Total Tape Thickness without Liner (Imperial)4.9
Overall Length (Metric)164.59
Minimum Operating Temperature (Celsius)-40.0
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric)1371.6
Maximum Operating Temperature (Fahrenheit)350.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner ColorTan
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)54.0
Overall Length (Metric) UOMm
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.12
IndustriesAerospace, Automotive, Converter Solutions, Electronics, General Industrial, Metalworking, Point of Purchase, Print, Signage, Woodworking
Primary Liner Thickness (Imperial) UOMmil
Primary Liner Thickness (Metric)0.11
Adhesive TypeAcrylic
Indoor/OutdoorIndoor/Outdoor
