3M Products & Supplies

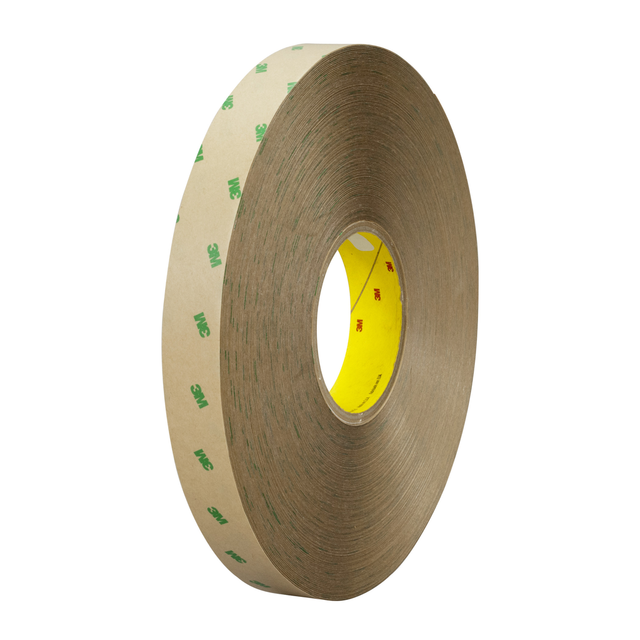

3M™ Adhesive Transfer Tape 9505, Clear, 24 in x 180 yd, 5 mil, 1 Roll/Case - 7000123421

SKU: 7000123421
MPN: 7000123421
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200684364
3M ID: 70006103744
5 Digit UPC: 68436
$1,161.51 each
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9505 features 3M™ Industrial Acrylic Adhesive 220, which provides a good bond to HSE materials. This 5.0 mil adhesive is applied to a 4.2 mil polycoated kraft (PCK) paper liner, which protects it until it is ready to be bonded to the substrate.

Features

  • 5 mil nominal 220 adhesive offers good sheer strength
  • Economical solution for a variety of general bonding applications
  • Good peel adhesion to HSE (high surface energy) materials
  • PCK liner protects adhesive and peels away quickly for easy handling
  • Thicker adhesives improve wet-out and adhesion on textured surfaces
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial)4.9
Overall Length (Metric)164.59
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Imperial)180.0
Primary Liner Thickness (Metric) UOMmm
Shelf Life UOMMonth
Overall Length (Imperial) UOMyd
Primary Liner Thickness (Imperial) UOMmil
Overall Width (Metric)609.6
Maximum Operating Temperature (Fahrenheit) UOMDegree
IndustriesAerospace, Automotive, Converter Solutions, Electronics, General Industrial, Metalworking, Point of Purchase, Print, Signage, Woodworking
Maximum Operating Temperature (Celsius)177.0
Maximum Operating Temperature (Fahrenheit)350.0
Minimum Operating Temperature (Celsius) UOMDegree
Primary Liner Thickness (Metric)0.11
Total Tape Thickness without Liner (Metric) UOMmm
Units per Case1.0
Primary Liner58# Polycoated Kraft Paper
Primary Liner Thickness (Imperial)4.2
Indoor/OutdoorIndoor/Outdoor
Total Tape Thickness without Liner (Metric)0.12
Overall Width (Imperial)24.0
Units per Case UOMRoll
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Length (Metric) UOMm
Adhesive TypeAcrylic
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner ColorTan
