3M Products & Supplies

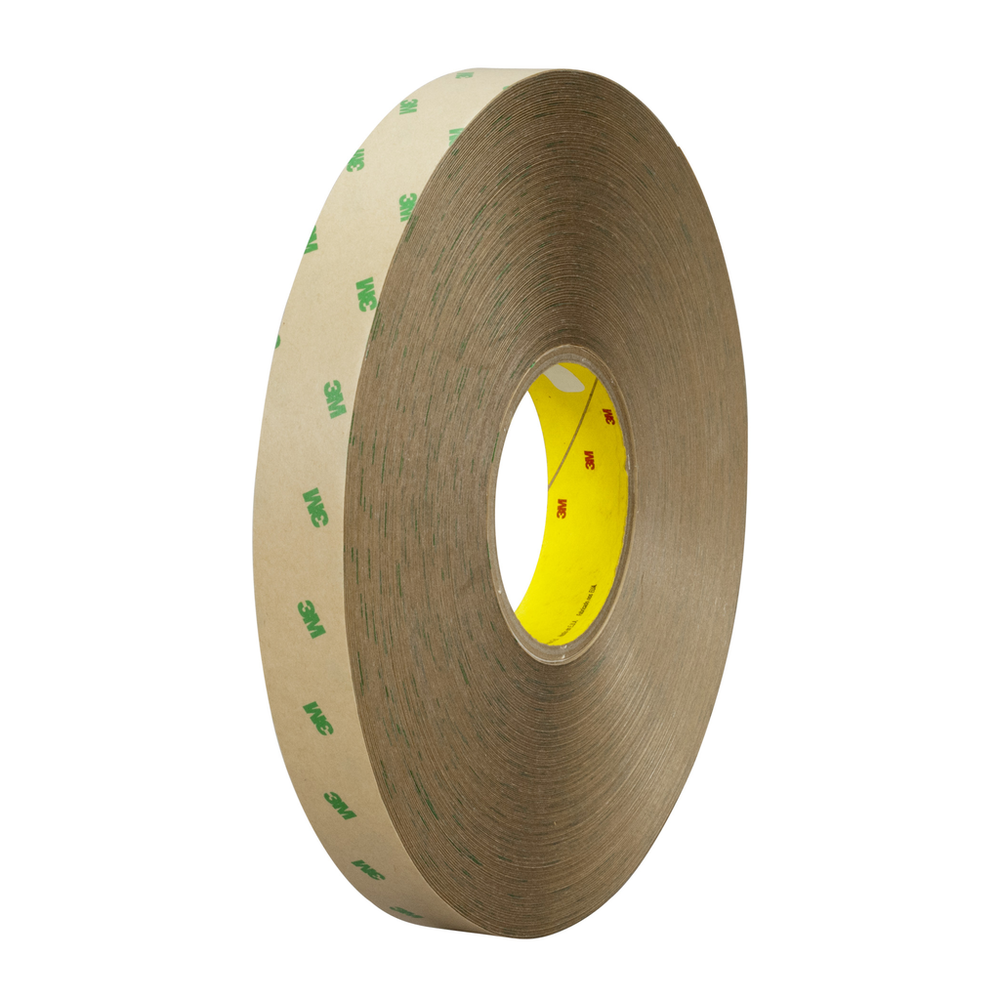

3M™ Adhesive Transfer Tape 9505, Clear, 48 in x 180 yd, 5 mil, 1 Roll/Case - 7000123644

SKU: 7000123644
MPN: 7000123644
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200310720
3M ID: 70006188141
5 Digit UPC: 31072
$2,323.01 each
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9505 features 3M™ Industrial Acrylic Adhesive 220, which provides a good bond to HSE materials. This 5.0 mil adhesive is applied to a 4.2 mil polycoated kraft (PCK) paper liner, which protects it until it is ready to be bonded to the substrate.

Features

  • PCK liner protects adhesive and peels away quickly for easy handling
  • 5 mil nominal 220 adhesive offers good sheer strength
  • Thicker adhesives improve wet-out and adhesion on textured surfaces
  • Economical solution for a variety of general bonding applications
  • Good peel adhesion to HSE (high surface energy) materials
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Width (Imperial) UOMin
Indoor/OutdoorIndoor/Outdoor
Overall Width (Metric)1219.2
Overall Length (Metric)164.59
Overall Length (Metric) UOMm
Units per Case UOMRoll
Primary Liner Thickness (Imperial) UOMmil
Overall Width (Imperial)48.0
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-40.0
Primary Liner Thickness (Metric)0.11
Total Tape Thickness without Liner (Metric)0.12
Overall Length (Imperial)180.0
Maximum Operating Temperature (Fahrenheit)350.0
Overall Length (Imperial) UOMyd
Adhesive TypeAcrylic
Maximum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner Thickness (Imperial)4.2
Shelf Life UOMMonth
Primary Liner58# Polycoated Kraft Paper
Total Tape Thickness without Liner (Metric) UOMmm
Primary Liner Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)4.9
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial) UOMmil
Units per Case1.0
Minimum Operating Temperature (Celsius)-40.0
IndustriesAerospace, Automotive, Converter Solutions, Electronics, General Industrial, Metalworking, Point of Purchase, Print, Signage, Woodworking
Primary Liner ColorTan
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)177.0
