3M Products & Supplies

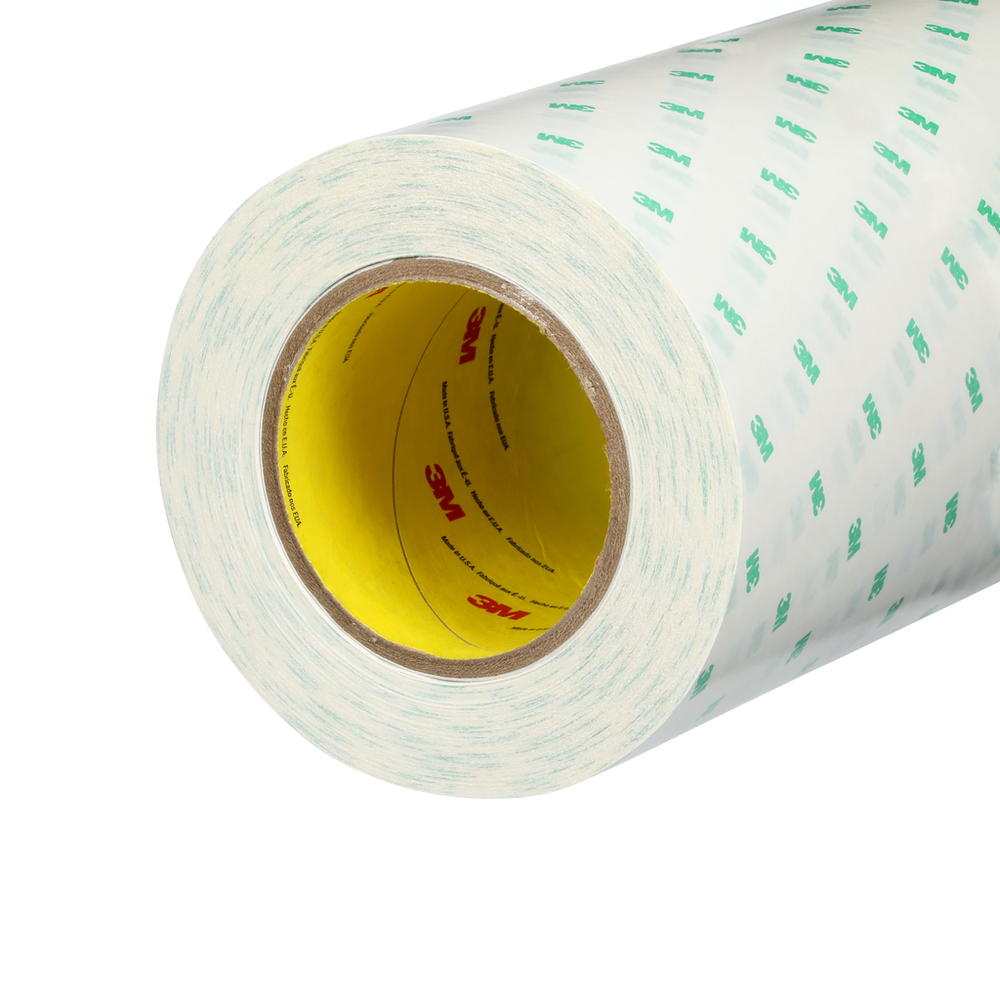

3M™ Adhesive Transfer Tape 966, Clear, 12 in x 180 yd, 2.3 mil, 1 Roll/Case - 7010333687

SKU: 7010333687
MPN: 7010333687
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200687495
3M ID: 70006136488
5 Digit UPC: 68749
$1,080.16 each
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 966 leverages the power of 3M™ High Temperature Acrylic Adhesive 100 to produce an excellent high temperature, high strength and chemical resistant bond suitable to the demands of aerospace, automotive and electronics markets. It provides low outgassing properties necessary to deliver optimal performance in demanding applications.

Features

  • Outstanding UV and chemical resistance for performance longevity
  • Low outgassing properties benefit aerospace, automotive and electronics industries
  • Short term temperature tolerance of up to 450 °F (232 °C)
  • Transparent, double sided, 2 mil (0.05 mm) adhesive transfer tape offers a thin profile combined with our high temperature acrylic adhesive for a long-lasting bond
  • 62# densified kraft paper release liner reduces edge burr in hand tool processing of metal plates
  • High peel and shear strength creates bonds suitable for extreme conditions
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit)450.0
Maximum Operating Temperature (Celsius) UOMDegree
Units per Case1.0
Primary Liner Thickness (Metric) UOMmm
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial) UOMmil
Product ColorTranslucent
Adhesive TypeHigh Temperature Acrylic Adhesive 100
Overall Width (Imperial) UOMin
Secondary Liner58# Polycoated Kraft Paper
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Celsius)-40.0
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)2.3
Secondary Liner Thickness (Imperial)4.2
Secondary Liner Thickness (Metric)0.107
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Signage, Specialty Vehicles, Transportation
Primary LinerPET
Maximum Operating Temperature (Celsius)232.0
Secondary Liner ColorTan
ApplicationArchitectural Panel; Bonding; Commerical Signs; Interior Mirror & Fixture Attachment; Large Surface Lamination Assembly; Mounting & Trim Attachment; Trim & Molding Attachment
Secondary Liner Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit)-40.0
Indoor/OutdoorIndoor/Outdoor
Primary Liner Thickness (Imperial)3.6
Number of Adhesive SidesDouble-sided
Overall Length (Imperial) UOMyd
Units per Case UOMRoll
Overall Width (Metric)304.8
Product CategoryAdhesives
Specifications MetUL 969
Overall Width (Imperial)12.0
Primary Liner Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)0.058
Overall Length (Metric)164.59
Minimum Operating Temperature (Celsius) UOMDegree
Secondary Liner Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Shelf Life UOMMonth
Primary Liner Thickness (Metric)0.09
Overall Length (Imperial)180.0
Primary Liner ColorTransparent
