3M Products & Supplies

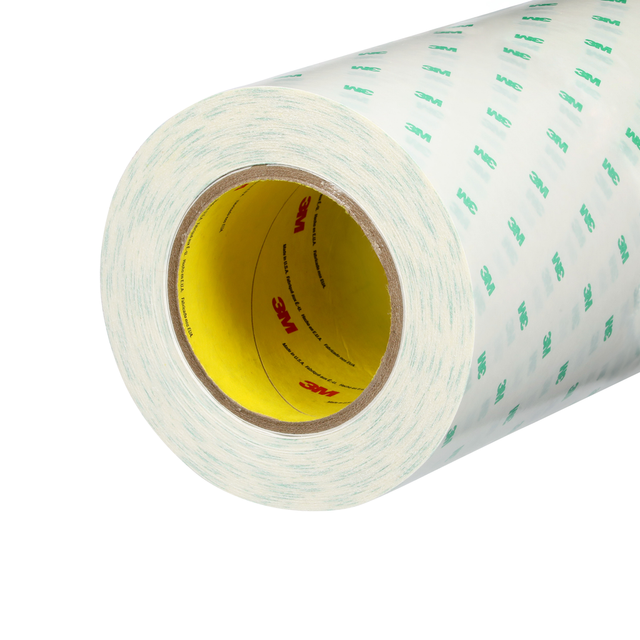

3M™ Adhesive Transfer Tape 966, Clear, 12 in x 60 yd, 2.3 mil, 4 Roll/Case - 7000048580

Sold As: 4-Pack
SKU: 7000048580
MPN: 7000048580
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200687822
3M ID: 70006140712
5 Digit UPC: 68782
$1,440.21 ($360.05 / Count)
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 966 leverages the power of 3M™ High Temperature Acrylic Adhesive 100 to produce an excellent high temperature, high strength and chemical resistant bond suitable to the demands of aerospace, automotive and electronics markets. It provides low outgassing properties necessary to deliver optimal performance in demanding applications.

Features

  • Outstanding UV and chemical resistance for performance longevity
  • High peel and shear strength creates bonds suitable for extreme conditions
  • Low outgassing properties benefit aerospace, automotive and electronics industries
  • 62# densified kraft paper release liner reduces edge burr in hand tool processing of metal plates
  • Short term temperature tolerance of up to 450 °F (232 °C)
  • Transparent, double sided, 2 mil (0.05 mm) adhesive transfer tape offers a thin profile combined with our high temperature acrylic adhesive for a long-lasting bond
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Total Tape Thickness without Liner (Metric)0.058
Total Tape Thickness without Liner (Imperial)2.3
Primary Liner Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius) UOMDegree
Secondary Liner Thickness (Metric) UOMmm
Secondary Liner Thickness (Imperial) UOMmil
Units per Case4.0
Maximum Operating Temperature (Fahrenheit)450.0
Total Tape Thickness without Liner (Metric) UOMmm
Units per Case UOMRoll
Overall Length (Metric) UOMm
Overall Length (Imperial)60.0
Overall Length (Imperial) UOMyd
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Signage, Specialty Vehicles, Transportation
Indoor/OutdoorIndoor/Outdoor
Primary Liner Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Celsius)-40.0
ApplicationArchitectural Panel; Bonding; Commerical Signs; Interior Mirror & Fixture Attachment; Large Surface Lamination Assembly; Mounting & Trim Attachment; Trim & Molding Attachment
Primary LinerPET
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)55.0
Overall Width (Metric)304.8
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)232.0
Shelf Life UOMMonth
Overall Width (Imperial)12.0
Total Tape Thickness without Liner (Imperial) UOMmil
Adhesive TypeHigh Temperature Acrylic Adhesive 100
Minimum Operating Temperature (Fahrenheit)-40.0
Primary Liner Thickness (Imperial)3.6
Secondary Liner Thickness (Metric)0.107
Secondary Liner Thickness (Imperial)4.2
Secondary Liner ColorTan
Primary Liner ColorTransparent
Secondary Liner58# Polycoated Kraft Paper
Maximum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner Thickness (Metric)0.09
Overall Width (Metric) UOMmm
Product CategoryAdhesives
Number of Adhesive SidesDouble-sided
Product ColorTranslucent
Specifications MetUL 969
