3M Products & Supplies

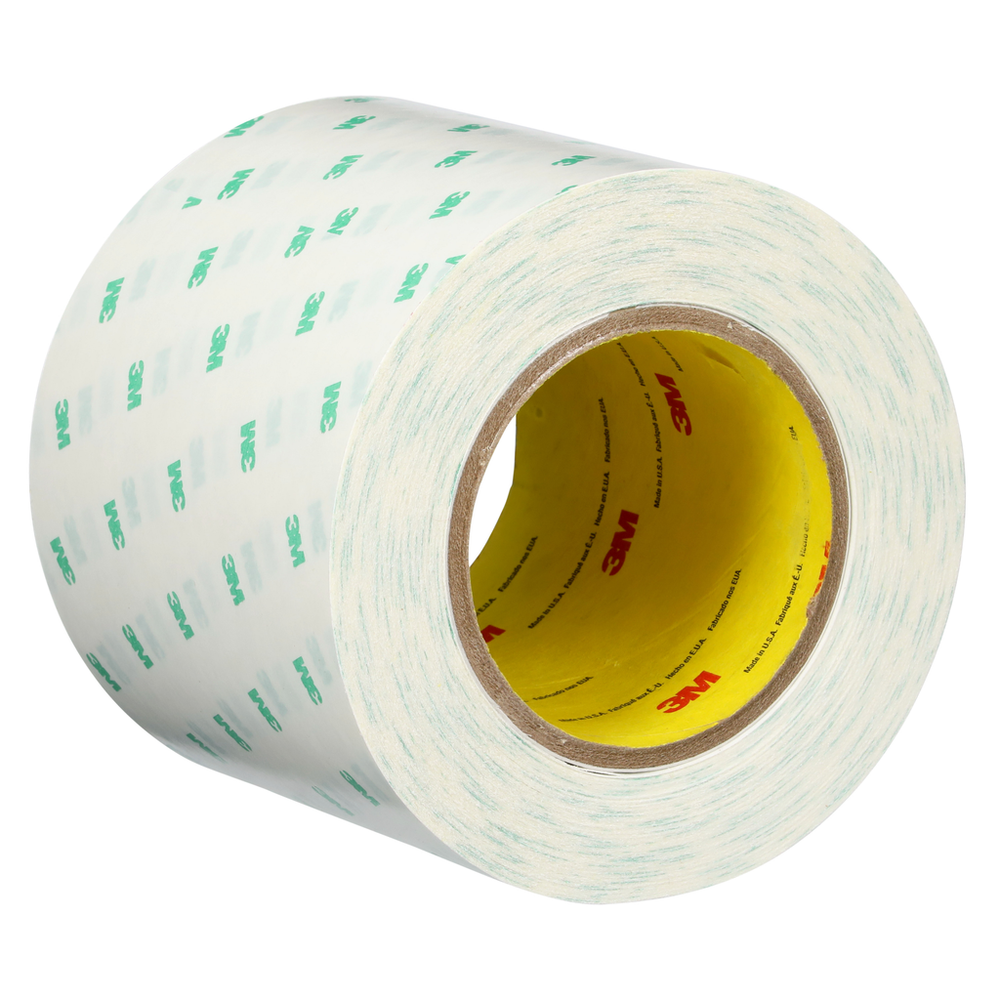

3M™ Adhesive Transfer Tape 966, Clear, 4.5 in x 60 yd, 2.3 mil, 8 Roll/Case - 7010374617

Sold As: 8-Pack
SKU: 7010374617
MPN: 7010374617
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00048011584065
3M ID: 70006405693
5 Digit UPC: 58406
$1,080.16 ($135.02 / Count)
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 966 leverages the power of 3M™ High Temperature Acrylic Adhesive 100 to produce an excellent high temperature, high strength and chemical resistant bond suitable to the demands of aerospace, automotive and electronics markets. It provides low outgassing properties necessary to deliver optimal performance in demanding applications.

Features

  • Outstanding UV and chemical resistance for performance longevity
  • Transparent, double sided, 2 mil (0.05 mm) adhesive transfer tape offers a thin profile combined with our high temperature acrylic adhesive for a long-lasting bond
  • High peel and shear strength creates bonds suitable for extreme conditions
  • Short term temperature tolerance of up to 450 °F (232 °C)
  • 62# densified kraft paper release liner reduces edge burr in hand tool processing of metal plates
  • Low outgassing properties benefit aerospace, automotive and electronics industries
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Secondary Liner ColorTan
Adhesive TypeHigh Temperature Acrylic Adhesive 100
Overall Width (Metric) UOMmm
Product ColorTranslucent
Product CategoryAdhesives
Total Tape Thickness without Liner (Imperial)2.3
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial)60.0
Number of Adhesive SidesDouble-sided
Primary Liner Thickness (Metric) UOMmm
Secondary Liner Thickness (Imperial)4.2
Overall Length (Imperial) UOMyd
Primary Liner ColorTransparent
Secondary Liner Thickness (Metric)0.107
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit)450.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Primary Liner Thickness (Metric)0.09
Primary LinerPET
Specifications MetUL 969
Minimum Operating Temperature (Fahrenheit)-40.0
Indoor/OutdoorIndoor/Outdoor
Overall Width (Metric)114.3
Total Tape Thickness without Liner (Metric) UOMmm
Minimum Operating Temperature (Celsius) UOMDegree
Secondary Liner Thickness (Imperial) UOMmil
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Signage, Specialty Vehicles, Transportation
Units per Case UOMRoll
Total Tape Thickness without Liner (Metric)0.058
Overall Length (Metric)54.86
Primary Liner Thickness (Imperial) UOMmil
Overall Width (Imperial)4.5
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Celsius)-40.0
Primary Liner Thickness (Imperial)3.6
Secondary Liner58# Polycoated Kraft Paper
Maximum Operating Temperature (Celsius)232.0
ApplicationArchitectural Panel; Bonding; Commerical Signs; Interior Mirror & Fixture Attachment; Large Surface Lamination Assembly; Mounting & Trim Attachment; Trim & Molding Attachment
Secondary Liner Thickness (Metric) UOMmm
Units per Case8.0
Shelf Life UOMMonth
