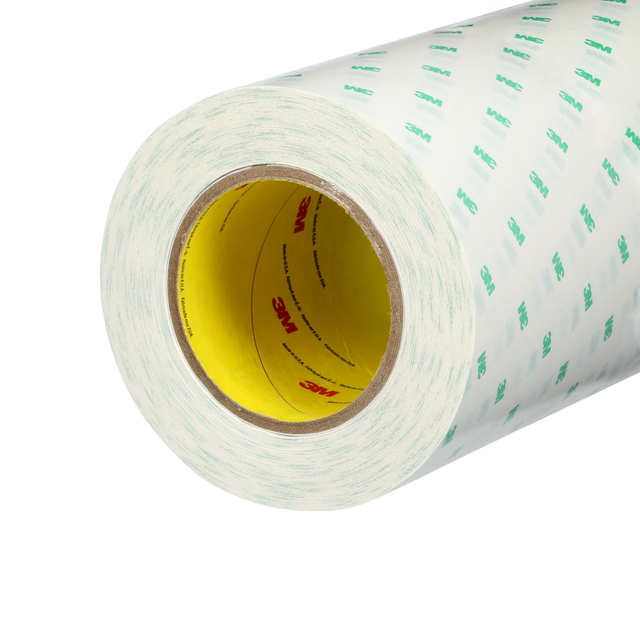

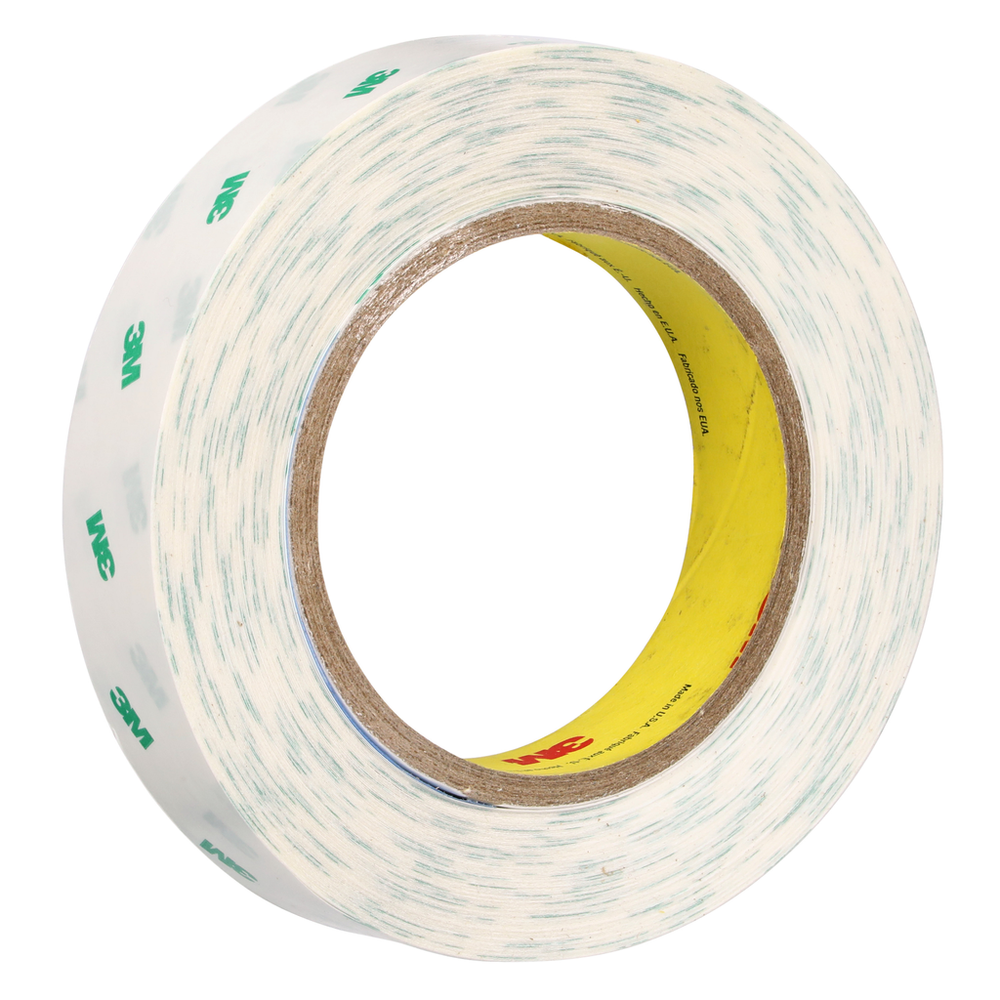

3M™ Adhesive Transfer Tape 966, Clear, 1 in x 60 yd, 2.3 mil, 36 Roll/Case - 7000048452

Sold As: 36-Pack
SKU: 7000048452
MPN: 7000048452
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200117091
3M ID: 70006042561
5 Digit UPC: 11709
$1,080.12 ($30.00 / Count)
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 966 leverages the power of 3M™ High Temperature Acrylic Adhesive 100 to produce an excellent high temperature, high strength and chemical resistant bond suitable to the demands of aerospace, automotive and electronics markets. It provides low outgassing properties necessary to deliver optimal performance in demanding applications.

Features

  • Short term temperature tolerance of up to 450 °F (232 °C)
  • Transparent, double sided, 2 mil (0.05 mm) adhesive transfer tape offers a thin profile combined with our high temperature acrylic adhesive for a long-lasting bond
  • High peel and shear strength creates bonds suitable for extreme conditions
  • Low outgassing properties benefit aerospace, automotive and electronics industries
  • Outstanding UV and chemical resistance for performance longevity
  • 62# densified kraft paper release liner reduces edge burr in hand tool processing of metal plates
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Maximum Operating Temperature (Celsius)232.0
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Metric)54.86
Primary Liner Thickness (Metric)0.09
Units per Case UOMRoll
Primary LinerPET
ApplicationArchitectural Panel; Bonding; Commerical Signs; Interior Mirror & Fixture Attachment; Large Surface Lamination Assembly; Mounting & Trim Attachment; Trim & Molding Attachment
Maximum Operating Temperature (Fahrenheit)450.0
Overall Width (Metric) UOMmm
Product ColorTranslucent
Secondary Liner Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Number of Adhesive SidesDouble-sided
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Signage, Specialty Vehicles, Transportation
Overall Length (Imperial) UOMyd
Secondary Liner Thickness (Metric) UOMmm
Secondary Liner58# Polycoated Kraft Paper
Primary Liner ColorTransparent
Primary Liner Thickness (Imperial) UOMmil
Overall Length (Imperial)60.0
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Width (Imperial)1.0
Shelf Life UOMMonth
Overall Width (Metric)25.4
Secondary Liner ColorTan
Minimum Operating Temperature (Celsius)-40.0
Primary Liner Thickness (Imperial)3.6
Secondary Liner Thickness (Imperial)4.2
Primary Liner Thickness (Metric) UOMmm
Secondary Liner Thickness (Metric)0.107
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric)0.058
Specifications MetUL 969
Maximum Operating Temperature (Celsius) UOMDegree
Units per Case36.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product CategoryAdhesives
Adhesive TypeHigh Temperature Acrylic Adhesive 100
Indoor/OutdoorIndoor/Outdoor
Overall Length (Metric) UOMm
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial)2.3
