3M Products & Supplies

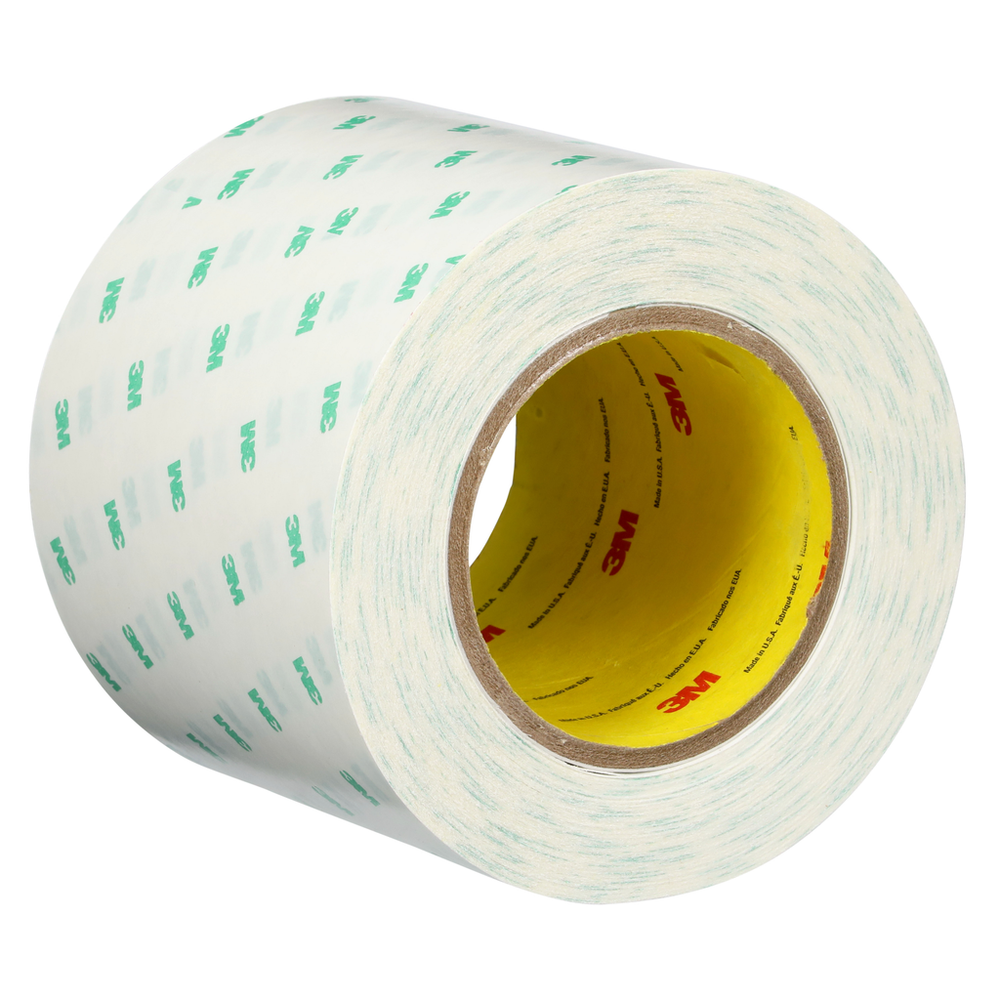

3M™ Adhesive Transfer Tape 966, Clear, 6.5 in x 60 yd, 2.3 Mil, 4/Case - 7010312134

Sold As: 4-Pack
SKU: 7010312134
MPN: 7010312134
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00048011584072
3M ID: 70006405701
5 Digit UPC: 58407
$780.16 ($195.04 / Count)
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 966 leverages the power of 3M™ High Temperature Acrylic Adhesive 100 to produce an excellent high temperature, high strength and chemical resistant bond suitable to the demands of aerospace, automotive and electronics markets. It provides low outgassing properties necessary to deliver optimal performance in demanding applications.

Features

  • Low outgassing properties benefit aerospace, automotive and electronics industries
  • Short term temperature tolerance of up to 450 °F (232 °C)
  • Outstanding UV and chemical resistance for performance longevity
  • Transparent, double sided, 2 mil (0.05 mm) adhesive transfer tape offers a thin profile combined with our high temperature acrylic adhesive for a long-lasting bond
  • High peel and shear strength creates bonds suitable for extreme conditions
  • 62# densified kraft paper release liner reduces edge burr in hand tool processing of metal plates
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Width (Metric) UOMmm
Overall Width (Metric)165.1
Primary Liner Thickness (Metric)0.09
Adhesive TypeHigh Temperature Acrylic Adhesive 100
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)-40.0
Secondary Liner58# Polycoated Kraft Paper
Secondary Liner Thickness (Imperial) UOMmil
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial)6.5
Minimum Operating Temperature (Celsius) UOMDegree
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Signage, Specialty Vehicles, Transportation
Overall Width (Imperial) UOMin
Primary LinerPET
ApplicationArchitectural Panel; Bonding; Commerical Signs; Interior Mirror & Fixture Attachment; Large Surface Lamination Assembly; Mounting & Trim Attachment; Trim & Molding Attachment
Secondary Liner ColorTan
Shelf Life UOMMonth
Overall Length (Imperial) UOMyd
Units per Case UOMRoll
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)450.0
Indoor/OutdoorIndoor/Outdoor
Primary Liner Thickness (Imperial) UOMmil
Product ColorTranslucent
Overall Length (Imperial)60.0
Secondary Liner Thickness (Metric) UOMmm
Product CategoryAdhesives
Specifications MetUL 969
Number of Adhesive SidesDouble-sided
Primary Liner Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius)232.0
Secondary Liner Thickness (Metric)0.107
Total Tape Thickness without Liner (Metric)0.058
Overall Length (Metric)54.86
Total Tape Thickness without Liner (Imperial)2.3
Overall Length (Metric) UOMm
Secondary Liner Thickness (Imperial)4.2
Units per Case4.0
Primary Liner ColorTransparent
Minimum Operating Temperature (Celsius)-40.0
Primary Liner Thickness (Imperial)3.6
