3M Products & Supplies

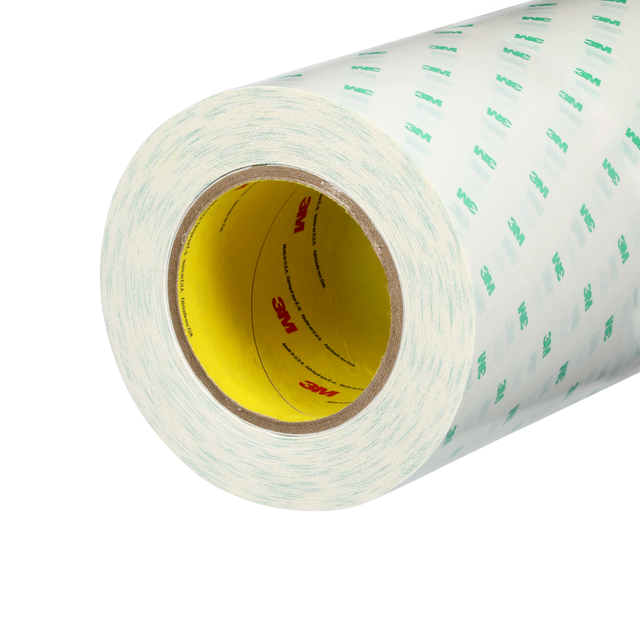

3M™ Adhesive Transfer Tape 966, Clear, 48 in x 180 yd, 2.3 mil, 1 Roll/Case - 7100179622

SKU: 7100179622
MPN: 7100179622
For an accurate lead time please contact us
UPC: 00638060140741
3M ID: 70007516019
$4,323.05 each
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 966 leverages the power of 3M™ High Temperature Acrylic Adhesive 100 to produce an excellent high temperature, high strength and chemical resistant bond suitable to the demands of aerospace, automotive and electronics markets. It provides low outgassing properties necessary to deliver optimal performance in demanding applications.

Features

  • Low outgassing properties benefit aerospace, automotive and electronics industries
  • High peel and shear strength creates bonds suitable for extreme conditions
  • Transparent, double sided, 2 mil (0.05 mm) adhesive transfer tape offers a thin profile combined with our high temperature acrylic adhesive for a long-lasting bond
  • Short term temperature tolerance of up to 450 °F (232 °C)
  • 62# densified kraft paper release liner reduces edge burr in hand tool processing of metal plates
  • Outstanding UV and chemical resistance for performance longevity
Spec Sheet



Downloads

Specifications

Shelf Life730
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Signage, Specialty Vehicles, Transportation
Overall Length (Imperial)180.0
Primary Liner Thickness (Imperial) UOMmil
Specifications MetUL 969
Overall Length (Metric) UOMm
Secondary Liner Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Secondary Liner Thickness (Imperial)4.2
Adhesive TypeHigh Temperature Acrylic Adhesive 100
Maximum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner Thickness (Metric)0.09
Number of Adhesive SidesDouble-sided
Overall Width (Imperial)48.0
Product ColorTransparent
Total Tape Thickness without Liner (Imperial) UOMmil
Primary Liner Thickness (Imperial)3.6
Secondary Liner ColorTan
Maximum Operating Temperature (Fahrenheit)450.0
Primary Liner ColorTransparent
Primary LinerPET
Minimum Operating Temperature (Celsius)-40.0
Maximum Operating Temperature (Celsius)232.0
Overall Length (Metric)164.59
Secondary Liner Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-40.0
Product CategoryAdhesives
ApplicationArchitectural Panel; Bonding; Commerical Signs; Interior Mirror & Fixture Attachment; Large Surface Lamination Assembly; Mounting & Trim Attachment; Trim & Molding Attachment
Total Tape Thickness without Liner (Metric)0.058
Indoor/OutdoorIndoor/Outdoor
Overall Length (Imperial) UOMyd
Country of OriginUnited States
Overall Width (Metric)1219.2
Secondary Liner58# Polycoated Kraft Paper
Shelf Life UOMMonth
Total Tape Thickness without Liner (Metric) UOMmm
Minimum Operating Temperature (Celsius) UOMDegree
Primary Liner Thickness (Metric) UOMmm
Secondary Liner Thickness (Metric)0.107
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial)2.3
Overall Width (Metric) UOMmm
