3M Products & Supplies

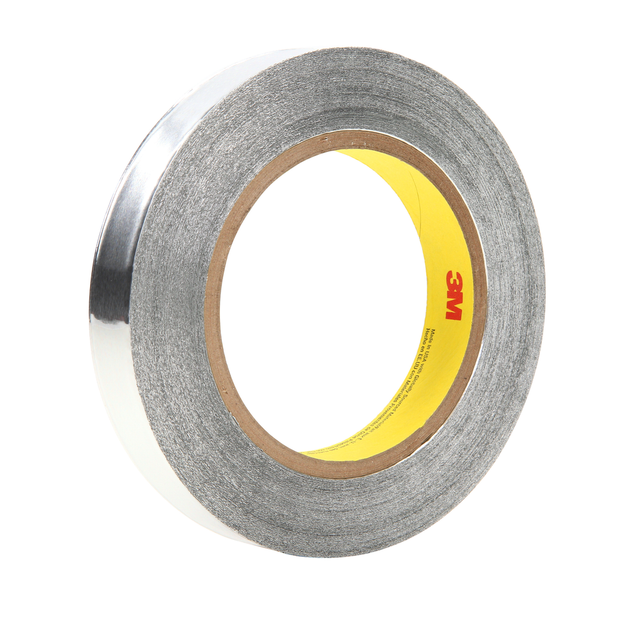

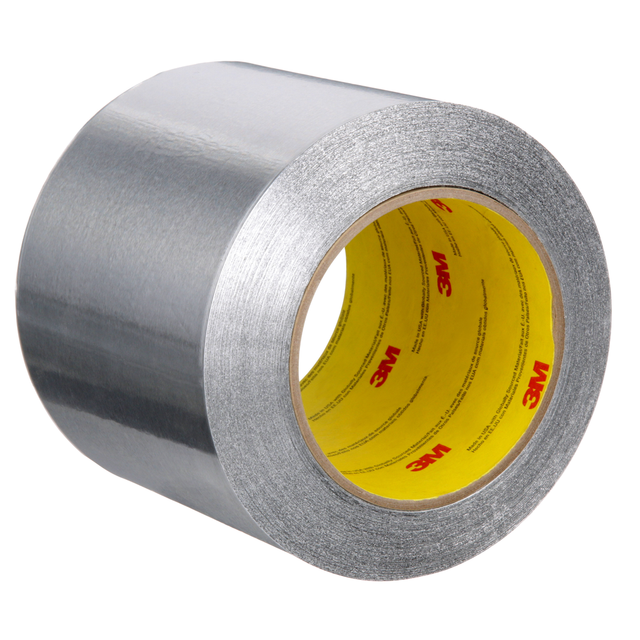

3M™ Aluminum Foil Tape 425, Silver, LM MMSJ434, 3 in x 60 yd, 4.6 mil, 16 Rolls/Case - 7100229354

Sold As: 16-Pack
SKU: 7100229354
MPN: 7100229354
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060406977
3M ID: 70007544052
5 Digit UPC: 40697
$2,016.21 ($126.01 / Count)
Hurry up! Current stock:

Product Description

3M™ Aluminum Foil Tape 425 is the go-to foil tape for numerous applications across a broad range of industries. Comprised of a dead soft aluminum foil backing and coated with a highly engineered pressure sensitive acrylic adhesive, it is ideal for heat shielding, heat reflecting, chemical masking, light enhancement, chemical milling, seaming, sealing and de-paint operations.

Features

  • Highly engineered acrylic adhesive provides long term durability, but removes cleanly after harsh masking applications
  • Dead soft aluminum foil backing conforms to curved and uneven surfaces
  • Resistant to chemicals to protect surfaces during de-paint process and other chemical masking operations
  • Heat and light reflective tape protects surfaces and enhances lighting efficiency
  • Withstands exposure to flame, weathering, moisture and UV
  • Thermally conductive tape helps dissipate heat and improves heating and cooling efficiency to protect temperature sensitive materials
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Elongation at Break6
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)300.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)3.0
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
Adhesive TypeAcrylic
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Back Side Adhesive Thickness (Metric) UOMmm
Shelf Life UOMMonth
Tensile Strength (Imperial) UOMlb/in
Backing (Carrier) MaterialAluminum Foil
Backing (Carrier) Thickness (Imperial) UOMmil
Specifications MetFAR 25.853(a), L-T-80C, SAE-AMS-T-23397, UL 723 (File R 7311), UL 746C (File E 122798)
Overall Length (Imperial)60.0
Minimum Operating Temperature (Celsius) UOMDegree
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Tensile Strength (Imperial)28.0
Tensile Strength (Metric) UOMN/100mm
Product ColorSilver
Maximum Operating Temperature (Fahrenheit) UOMDegree
Back Side Adhesive Thickness (Imperial)1.8
Tensile Strength (Metric)49.0
Overall Width (Metric)76.2
Backing (Carrier) Thickness (Imperial)2.8
Minimum Operating Temperature (Celsius)-54.0
Backing (Carrier) Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.07
Backing MaterialAluminum Foil
Minimum Operating Temperature (Fahrenheit)-65.0
Maximum Operating Temperature (Celsius)149.0
Back Side Adhesive Thickness (Metric)0.05
Total Tape Thickness without Liner (Imperial)4.6
Overall Length (Metric)54.864
