3M Products & Supplies

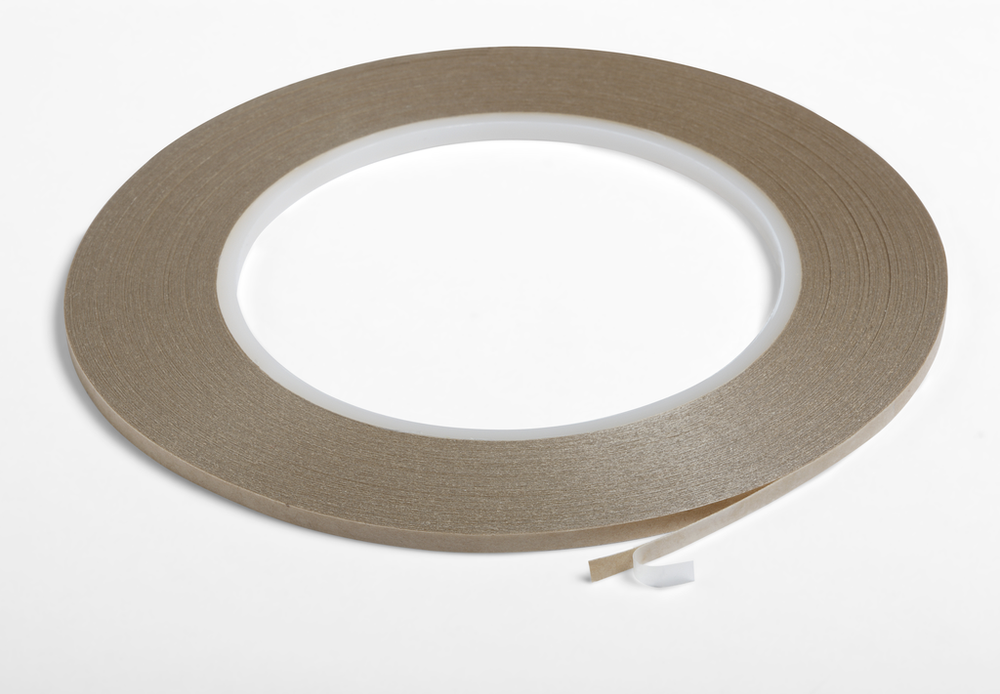

3M™ Anisotropic Conductive Film Adhesive 7303, 3 mm x 35 m Roll, 100 Rolls/Case - 7010373975

Sold As: 100-Pack
SKU: 7010373975
MPN: 7010373975
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115524363
3M ID: 70006457199
5 Digit UPC: 52436
$31,409.29 ($314.09 / Count)
Hurry up! Current stock:

Product Description

3M™ ACF 7303 is an epoxy/acrylate-blend adhesive system filled with 43 micron silver-coated glass beads. It is slightly tacky at room temperature and cures at modest bonding temperature and pressure.

Features

  • Frozen storage
  • Heat cure
  • Good thermal stability
  • Thermo-set low temperature cure
  • Tacky at room temperature
  • Reworkable
Spec Sheet



Downloads

Specifications

Shelf Life548
Country of OriginUnited States
Overall Thickness (Metric)174.0
Curing Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Product FormRoll
Overall Width (Metric) UOMmm
Nominal Adhesive Thickness (Metric)74.0
Backing Thickness (Metric)0.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Adhesive TypeEpoxy
Maximum Cure Conditions (Celsius)0.0
IndustriesElectronics, General Industrial, Transportation
Overall Thickness (Imperial) UOMmil
Density0.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)35.0
Shelf Life UOMMonth
Overall Width (Imperial)0.1
Product ColorTan
Overall Length (Imperial)38.3
Shear Strength7.1
Overall Length (Imperial) UOMyd
Shear Strength UOMpsi
Nominal Adhesive Thickness (Imperial)2.9
Maximum Cure Conditions (Fahrenheit)0.0
Overall Thickness (Imperial)6.85
Minimum Cure Conditions (Fahrenheit)0.0
Maximum Operating Temperature (Celsius)80.0
Overall Length (Metric) UOMm
Maximum Operating Temperature (Celsius) UOMDegree
Nominal Weight (Imperial)0.0
Maximum Operating Temperature (Fahrenheit)177.0
Overall Width (Imperial) UOMin
Nominal Weight (Metric)0.0
Overall Width (Metric)3.0
ApplicationBonding; Lightweighting
Curing Temperature (Celsius) UOMDegree
Overall Thickness (Metric) UOMmicron
Backing Thickness (Imperial)0.0
Minimum Operating Temperature (Fahrenheit)-40.0
Product UsageDisplays; Electronic Components
Minimum Operating Temperature (Celsius)-40.0
