3M Products & Supplies

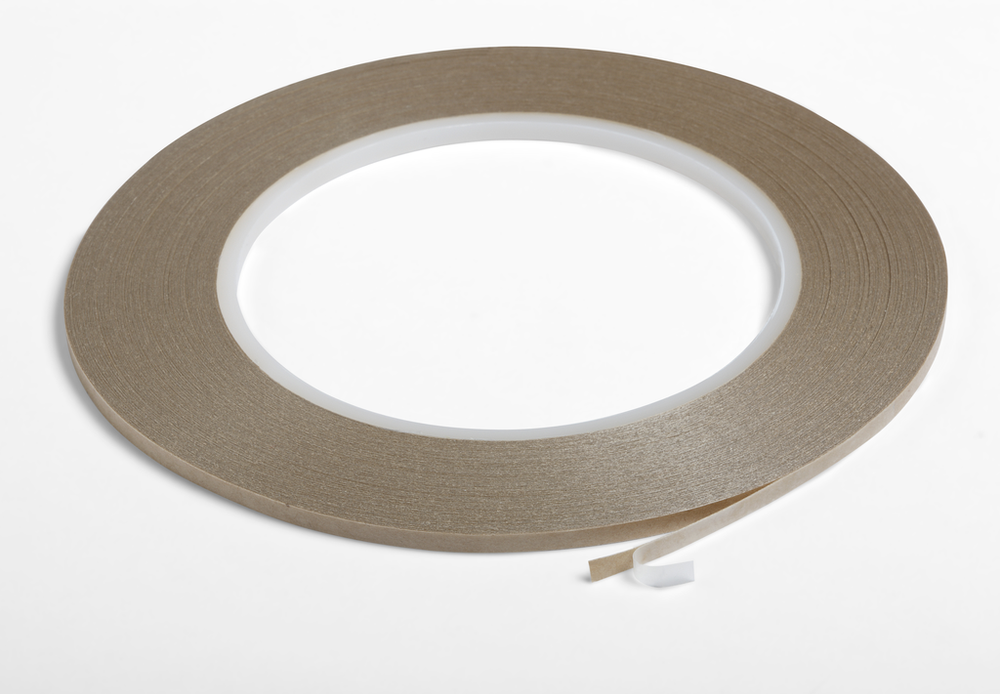

3M™ Anisotropic Conductive Film Adhesive 7303, 8 mm x 35 m Roll, 2 rolls/Case, Bulk - 7010312589

Sold As: 35-Pack
SKU: 7010312589
MPN: 7010312589
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00048011573687
3M ID: 70006335965
5 Digit UPC: 57368
$19,157.07 ($547.34 / Count)
Hurry up! Current stock:

Product Description

3M™ ACF 7303 is an epoxy/acrylate-blend adhesive system filled with 43 micron silver-coated glass beads. It is slightly tacky at room temperature and cures at modest bonding temperature and pressure.

Features

  • Thermo-set low temperature cure
  • Good thermal stability
  • Tacky at room temperature
  • Frozen storage
  • Reworkable
  • Heat cure
Spec Sheet



Downloads

Specifications

Shelf Life548
Country of OriginUnited States
Maximum Cure Conditions (Fahrenheit)0.0
Overall Width (Imperial) UOMin
ApplicationBonding; Lightweighting
Overall Thickness (Metric)174.0
Overall Width (Metric) UOMmm
Product FormRoll
Nominal Weight (Metric)0.0
Minimum Operating Temperature (Celsius) UOMDegree
Curing Temperature (Fahrenheit) UOMDegree
Density0.0
Backing Thickness (Metric)0.0
Nominal Adhesive Thickness (Metric)74.0
Adhesive TypeEpoxy
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)35.0
Product ColorTan
Minimum Operating Temperature (Celsius)-40.0
Minimum Cure Conditions (Fahrenheit)0.0
Maximum Cure Conditions (Celsius)0.0
Overall Length (Imperial) UOMyd
Overall Width (Metric)8.0
Shear Strength UOMpsi
Overall Length (Metric) UOMm
Overall Width (Imperial)0.3
Shelf Life UOMMonth
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)38.3
Nominal Adhesive Thickness (Imperial)2.9
Overall Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)-40.0
Maximum Operating Temperature (Fahrenheit)177.0
Overall Thickness (Imperial)6.85
Overall Thickness (Metric) UOMmicron
Maximum Operating Temperature (Fahrenheit) UOMDegree
Shear Strength7.1
Product UsageDisplays; Electronic Components
Nominal Weight (Imperial)0.0
IndustriesElectronics, General Industrial, Transportation
Maximum Operating Temperature (Celsius)80.0
Curing Temperature (Celsius) UOMDegree
Backing Thickness (Imperial)0.0
