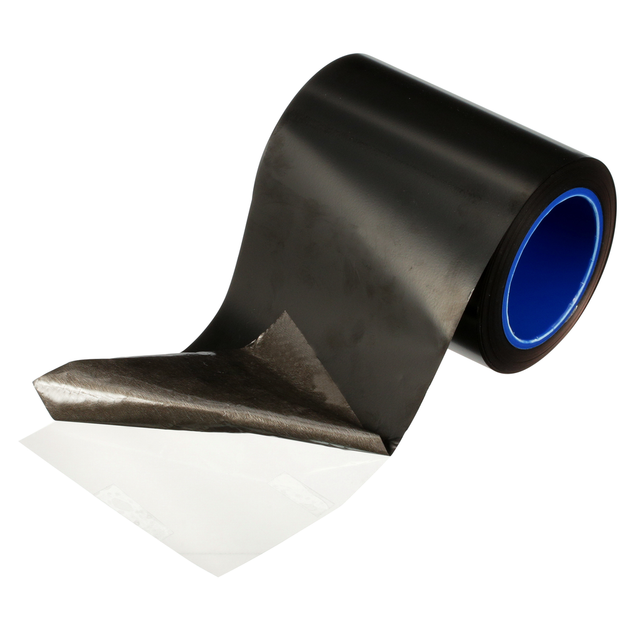

3M™ Electrically Conductive Thermosetting Film 2201P, 360 mm x 100 m, 2 Rolls/Case - 7010296643

Sold As: 2-Pack
SKU: 7010296643
MPN: 7010296643
Lead Time: 160 working days.
UPC: 00048011652054
3M ID: 70071545845
5 Digit UPC: 65205
$10,009.59 ($5004.80 / Count)
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Thermosetting Film (C-TSF) 2201P is an XYZ-axis electrically conductive thermosetting film. This double-sided film has a nickel/copper-coated conductive nonwoven carrier. Designed for EMI shielding and grounding applications, enabling devices to meet electromagnetic compatibility requirements.

Features

  • Good grounding performace
  • Excellent Adhesion to many substrates
  • Thermoset Epoxy / Acrylic Hybrid
  • Metallized (Ni/Cu/Ni) Polymeric (PET) Scrim
  • Modest thermal bonding process conditions
Spec Sheet



Downloads

Specifications

Shelf Life12.0 Month
Country of OriginUnited States
Overall Width (Imperial)14.173
Overall Length (Imperial) UOMyd
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)203.0 Degree Fahrenheit
Total Tape Thickness without Liner (Metric) UOMmm
Liner MaterialPET
Adhesion Strength (Imperial)1420.0
ApplicationGrounding
Overall Width (Metric)360.0
Total Tape Thickness without Liner (Imperial)2.5
Total Tape Thickness without Liner (Metric)0.065
Overall Length (Metric)100.0
Electrical ResistanceZ-axis 0.2 Ω
Overall Length (Metric) UOMm
Overall Length (Imperial)109.361
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Adhesive TypeEpoxy/Acrylic Hybrid Resin
Overall Width (Imperial) UOMin
Backing (Carrier) MaterialNon-woven
Product ColorGray
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Product UsageFlexible Printed Circuits; Printed Circuit Boards; Sensors
Maximum Operating Temperature (Celsius)95.0 Degree Celsius
