3M Products & Supplies

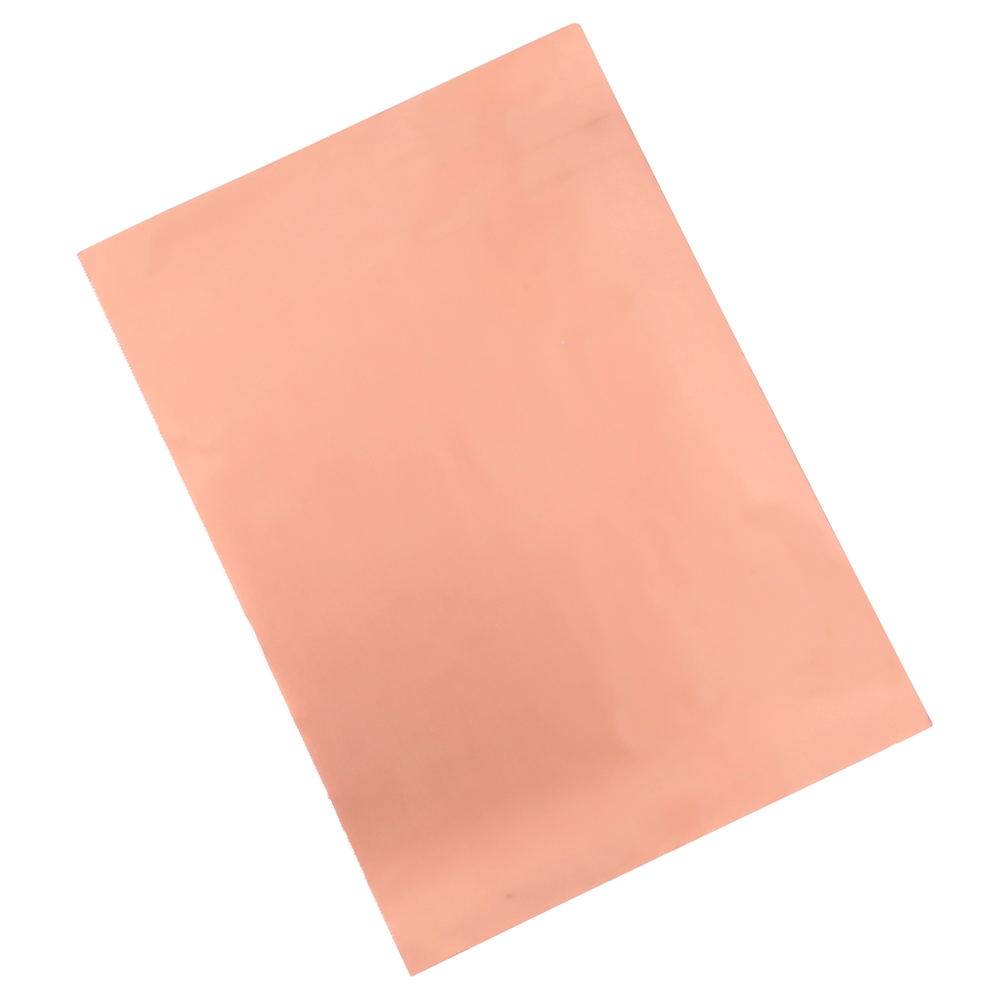

3M™ Electrically Conductive Single-Sided Tape 1050TC, 500 mm x 100 m - 7010612771

SKU: 7010612771
MPN: 7010612771
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 08887862955356
3M ID: WX300953865
$2,274.40 each
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Single-Sided Tape 1050TC Series is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. It consists of a conductive copper foil backing, conductive acrylic adhesive layer and a polyester (PET) release liner. This copper tape provides excellent XYZ-axis-based conductivity, reliable contacts to small-size grounding areas, and excellent EMI shielding and electrical reliability over time. The thin product construction is ideal for applications with less Z-space. It offers high adhesion for a one-sided thin tape, and good grounding performance to many surface types.

Features

  • High shielding performance
  • Stiffer copper for improved workability
  • Excellent conformability and quick bonding
  • Thin profile
  • Low electrical resistance
  • XYZ-axis conductivity

Downloads

Specifications

Shelf Life12.0 Month
Country of OriginSouth Korea
Product ColorGold
Overall Width (Metric)500.0
Liner MaterialPET
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Overall Length (Metric) UOMm
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric)0.016
Overall Width (Imperial) UOMin
Adhesive TypeAcrylic
Total Tape Thickness without Liner (Metric) UOMmm
Electrical ResistanceXY-axis 0.015 Ω
Adhesion Strength (Imperial)1100.0
Overall Width (Imperial)19.685
Overall Length (Metric)100.0
Backing (Carrier) MaterialCopper Foil
Overall Length (Imperial)109.361
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Total Tape Thickness without Liner (Imperial)0.63
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Celsius)121.0 Degree Celsius
Overall Width (Metric) UOMmm
Product UsageCamera Modules; Display Chip on Flex; Display Wraps; EMI Shields; Printed Circuit Boards; Sensors
ApplicationEMI Shielding; Passive Intermodulation (PIM) Management
Maximum Operating Temperature (Fahrenheit)250.0 Degree Fahrenheit
