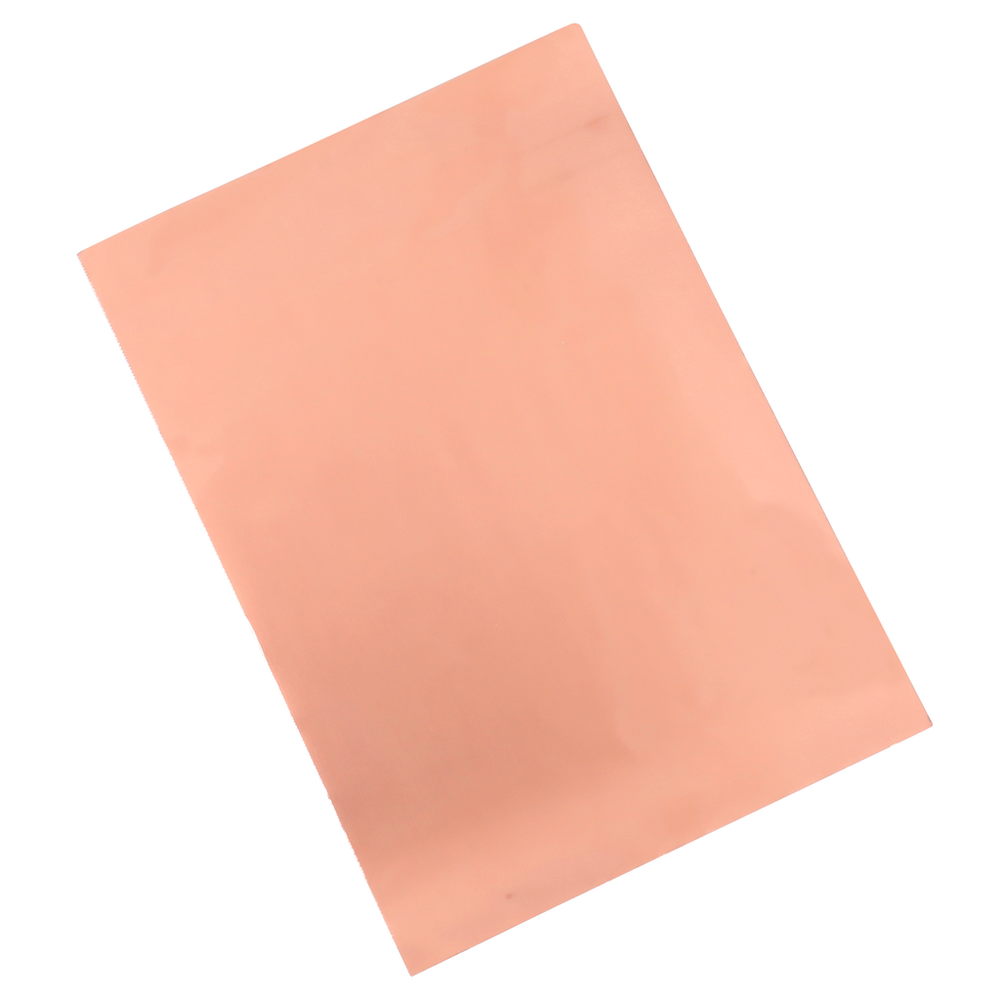

3M™ Electrically Conductive Single-Sided Tape 1050TC-25, 500 mm x 100 m - 7100231109

SKU: 7100231109
MPN: 7100231109
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00048011062280
3M ID: WX300953147
MPN: 1050TC
$2,305.17 each
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Single-Sided Tape 1050TC Series is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. It consists of a conductive copper foil backing, conductive acrylic adhesive layer and a polyester (PET) release liner. This copper tape provides excellent XYZ-axis-based conductivity, reliable contacts to small-size grounding areas, and excellent EMI shielding and electrical reliability over time. The thin product construction is ideal for applications with less Z-space. It offers high adhesion for a one-sided thin tape, and good grounding performance to many surface types.

Features

  • High shielding performance
  • Low electrical resistance
  • Stiffer copper for improved workability
  • XYZ-axis conductivity
  • Thin profile
  • Excellent conformability and quick bonding

Downloads

Specifications

Shelf Life12.0 Month
Country of OriginSouth Korea
Overall Length (Metric)100.0
Adhesion Strength (Imperial)1200.0
Product UsageCamera Modules; Display Chip on Flex; Display Wraps; EMI Shields; Printed Circuit Boards; Sensors
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Overall Width (Imperial)19.685
Overall Width (Metric)500.0
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial) UOMyd
ApplicationEMI Shielding; Passive Intermodulation (PIM) Management
Backing (Carrier) MaterialCopper Foil
Maximum Operating Temperature (Celsius)121.0 Degree Celsius
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Total Tape Thickness without Liner (Imperial)0.906
Liner MaterialPET
Overall Width (Imperial) UOMin
Overall Width (Metric) UOMmm
Adhesive TypeAcrylic
Electrical ResistanceXY-axis 0.015 Ω
Maximum Operating Temperature (Fahrenheit)250.0 Degree Fahrenheit
Product ColorGold
Total Tape Thickness without Liner (Metric)0.023
Overall Length (Imperial)109.361
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric) UOMm
