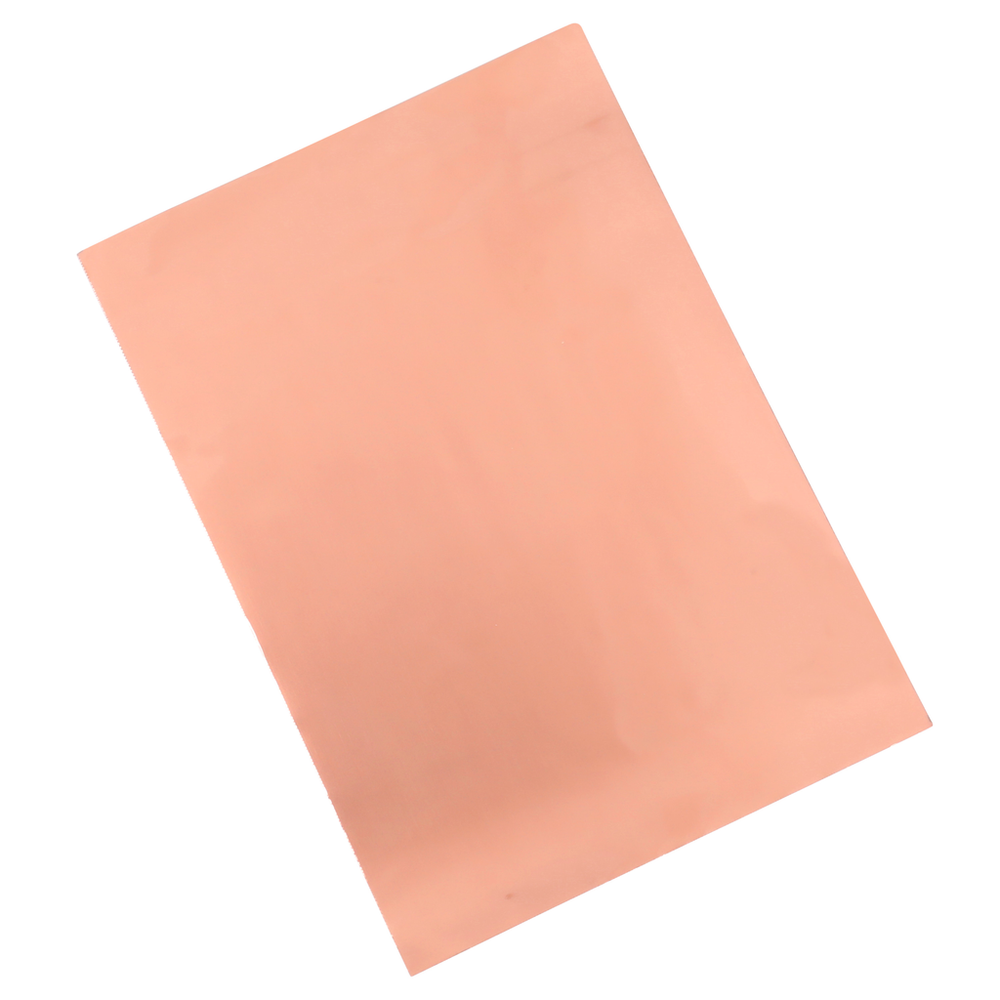

3M™ Electrically Conductive Single-Sided Tape 1050TC-25, 500 mm x 30 m, 1 Roll/Case - 7100313411

SKU: 7100313411
MPN: 7100313411
For an accurate lead time please contact us
UPC: 00068060428134
3M ID: 80001605056
$690.53 each
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Single-Sided Tape 1050TC Series is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. It consists of a conductive copper foil backing, conductive acrylic adhesive layer and a polyester (PET) release liner. This copper tape provides excellent XYZ-axis-based conductivity, reliable contacts to small-size grounding areas, and excellent EMI shielding and electrical reliability over time. The thin product construction is ideal for applications with less Z-space. It offers high adhesion for a one-sided thin tape, and good grounding performance to many surface types.

Features

  • Stiffer copper for improved workability
  • Low electrical resistance
  • Thin profile
  • Excellent conformability and quick bonding
  • XYZ-axis conductivity
  • High shielding performance

Downloads

Specifications

Shelf Life12.0 Month
Country of OriginSouth Korea
Backing (Carrier) MaterialCopper Foil
Maximum Operating Temperature (Celsius)121.0 Degree Celsius
Adhesion Strength (Imperial)1200.0
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Metric) UOMm
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Overall Width (Metric)500.0
Product UsageCamera Modules; Display Chip on Flex; Display Wraps; EMI Shields; Printed Circuit Boards; Sensors
Overall Length (Metric)30.0
Total Tape Thickness without Liner (Imperial)0.906
Product ColorGold
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Adhesive TypeAcrylic
Total Tape Thickness without Liner (Metric)0.023
ApplicationEMI Shielding; Passive Intermodulation (PIM) Management
Liner MaterialPET
Maximum Operating Temperature (Fahrenheit)250.0 Degree Fahrenheit
Overall Length (Imperial)32.808
Total Tape Thickness without Liner (Metric) UOMmm
Electrical ResistanceXY-axis 0.015 Ω
Overall Width (Metric) UOMmm
Overall Length (Imperial) UOMyd
Overall Width (Imperial)19.685
Overall Width (Imperial) UOMin
