3M Products & Supplies

3M™ Cold Shrink End Cap EC-1, use range of 0.46-0.82 in (11,6-20,9 mm), 10/case - 7100017415

Sold As: 10-Pack
SKU: 7100017415
MPN: 7100017415
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128583883
3M ID: 80611455181
5 Digit UPC: 58388
$109.98 ($11.00 / Count)
Hurry up! Current stock:

Product Description

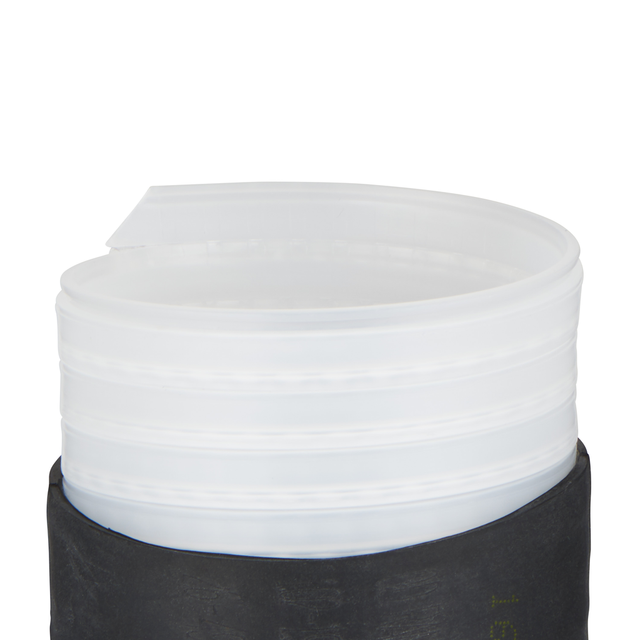

3M™ Cold Shrink End Caps EC Series are close ended, tubular rubber sleeves that are factory expanded and loaded onto a removable core. When positioned over the end of a cable or other cylindrical object, the core is removed to provide a reliable environmental seal. Different end caps are available to accommodate a wide range of sizes.

Features

  • Made of EPDM rubber which contains no chlorides or sulfur
  • Close-ended, EPDM tubular rubber sleeves that are loaded onto a removable core
  • Water resistant and provides physical protection for cables and pipes
  • Resists water, alkalis, acids, abrasion and ozone
  • RoHS 2011/65/EU Compliant
  • Simple and fast installation without any tools
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginChina
Shrink Ratio2:1
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)0.82
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter After Shrink (Metric)11.6
Flame RetardantNo
Adhesive LinedNo
Inner Diameter After Shrink (Imperial)0.46
Inner Diameter Before Shrink (Metric) UOMmm
Use Range (Metric)11.6-20.9 mm
With Inner GlueNo
Inner Diameter Before Shrink (Metric)20.9
Shrink TypeCold Shrink
Operating Temperature (Celsius)-40 up to +90°C
Product ColorBlack
Product TypeEnd Cap
End Cap TypeCold Shrink
Inner Diameter Before Shrink (Imperial) UOMin
ApplicationSealing the end of the cable
Units per Case10.0
Use Range0.46 - 0.82 in
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
