3M Products & Supplies

3M™ Cold Shrink End Cap EC-2, use range of 0.63-1.18 in (15,9-30,1 mm), 10/case - 7000133235

Sold As: 10-Pack
SKU: 7000133235
MPN: 7000133235
For an accurate lead time please contact us
UPC: 00051128583890
3M ID: 80611455199
5 Digit UPC: 58389
$153.73 ($15.37 / Count)
Hurry up! Current stock:

Product Description

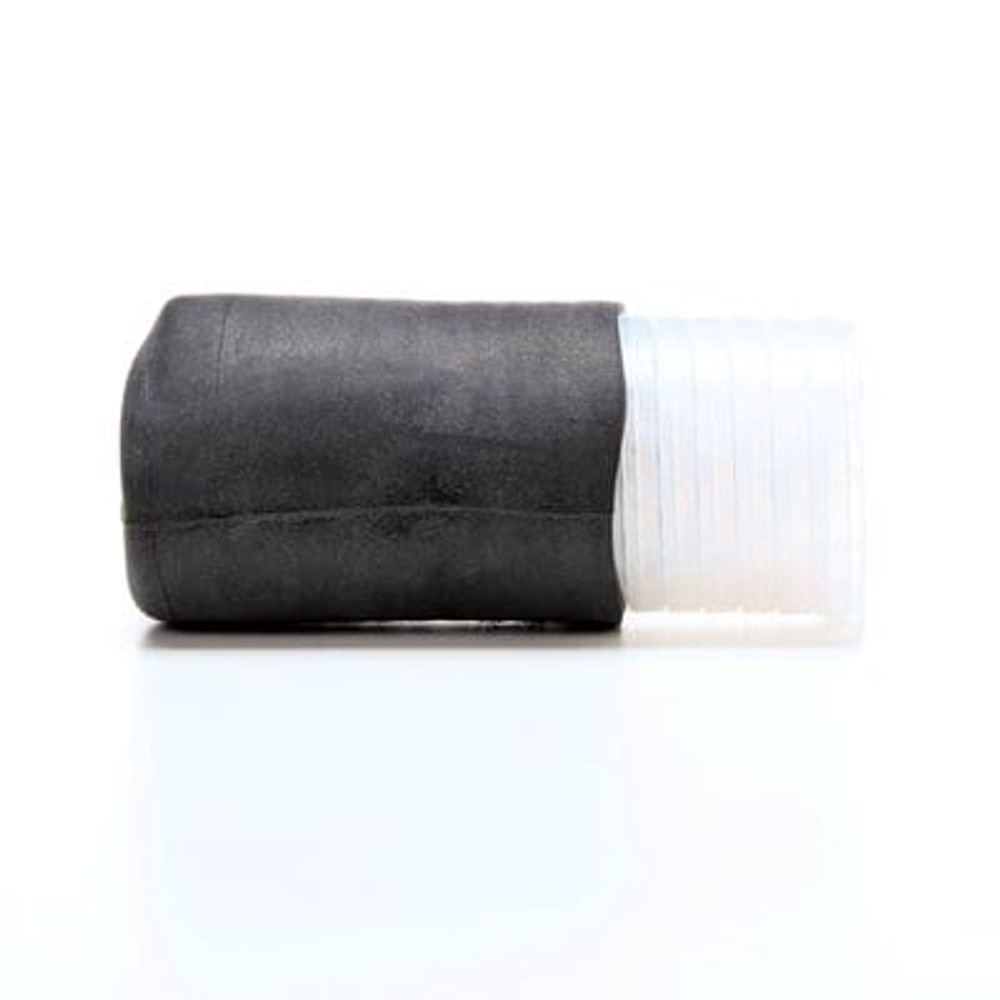

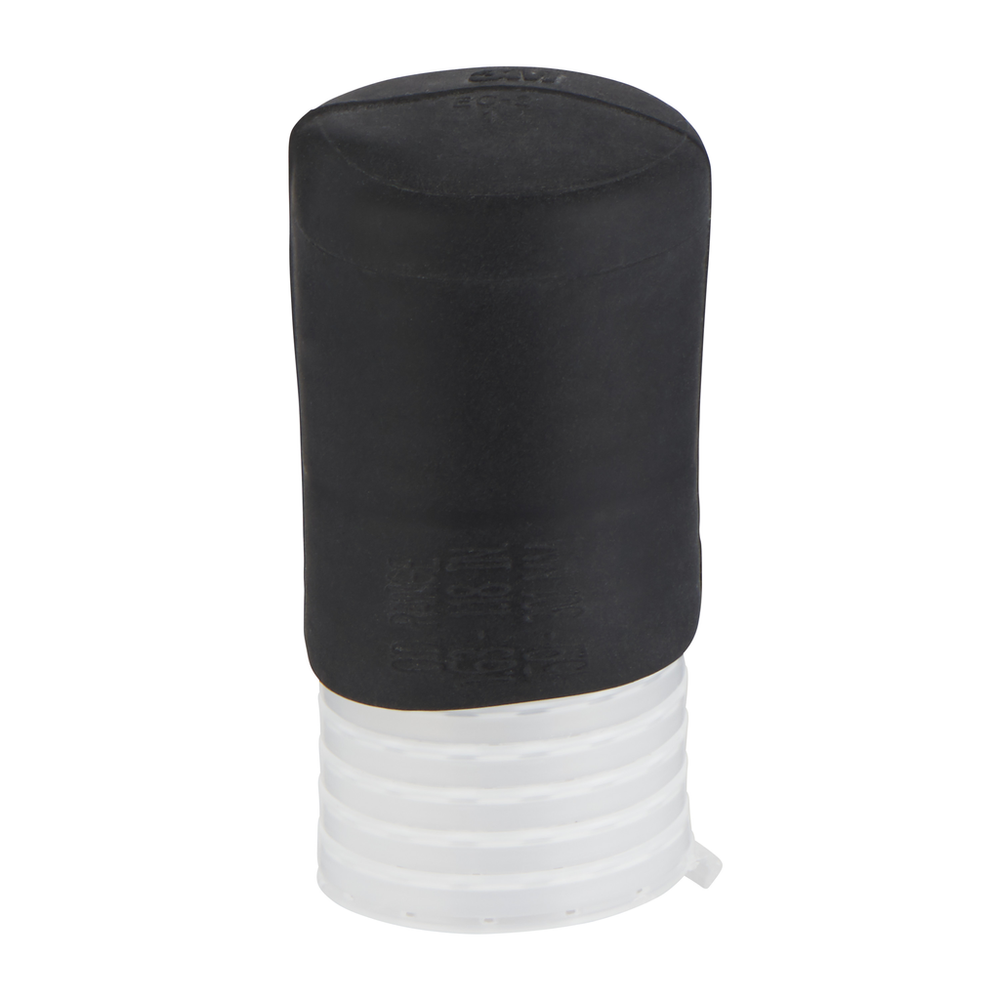

3M™ Cold Shrink End Caps EC Series are close ended, tubular rubber sleeves that are factory expanded and loaded onto a removable core. When positioned over the end of a cable or other cylindrical object, the core is removed to provide a reliable environmental seal. Different end caps are available to accommodate a wide range of sizes.

Features

  • Resists water, alkalis, acids, abrasion and ozone
  • Made of EPDM rubber which contains no chlorides or sulfur
  • Water resistant and provides physical protection for cables and pipes
  • Close-ended, EPDM tubular rubber sleeves that are loaded onto a removable core
  • Simple and fast installation without any tools
  • RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life1800
Country of OriginChina
Adhesive LinedNo
Operating Temperature (Celsius)-40 up to +90°C
Use Range0.63 - 1.18 in
Inner Diameter Before Shrink (Imperial)1.18
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter After Shrink (Metric)15.9
Inner Diameter After Shrink (Imperial) UOMin
Units per Case10.0
Product TypeEnd Cap
End Cap TypeCold Shrink
ApplicationSealing the end of the cable
Use Range (Metric)15.9-30.1 mm
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric) UOMmm
Shrink Ratio2:1
Shrink TypeCold Shrink
Inner Diameter After Shrink (Imperial)0.63
Inner Diameter Before Shrink (Metric)30.1
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Product ColorBlack
With Inner GlueNo
