3M Products & Supplies

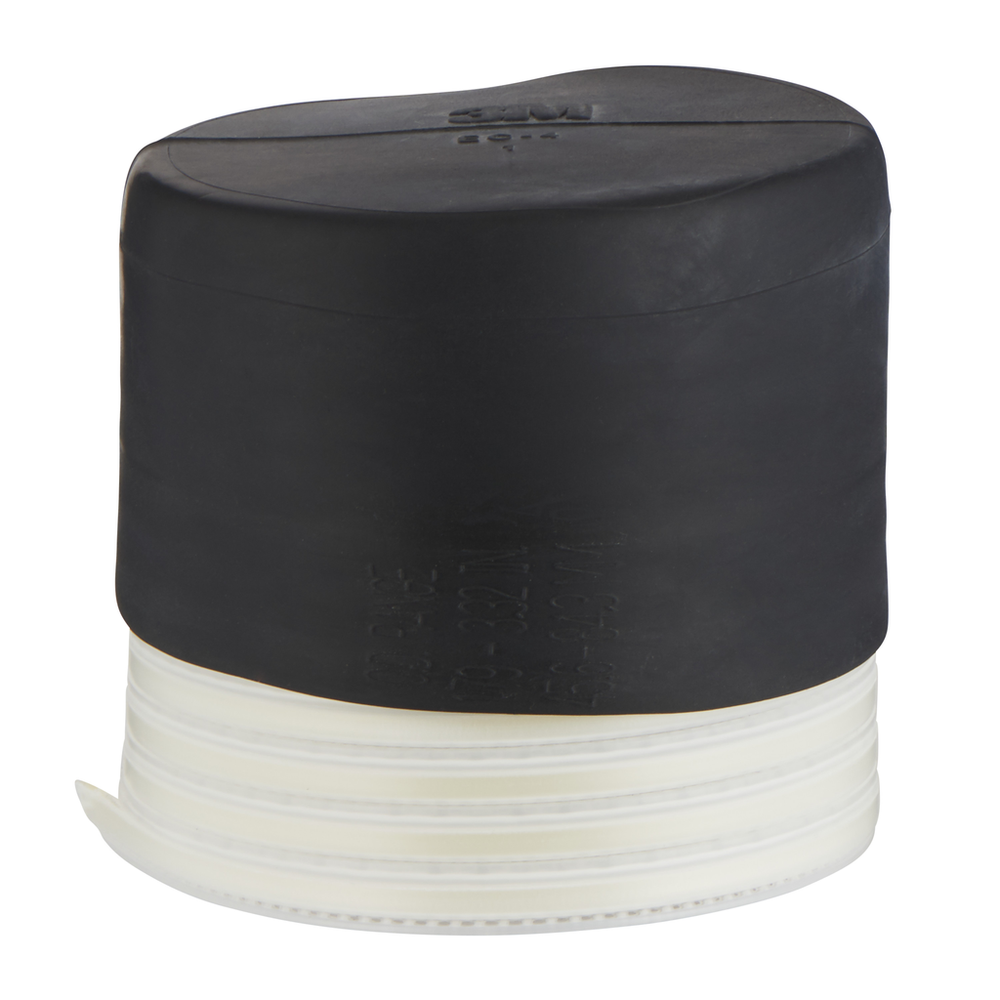

3M™ Cold Shrink End Cap EC-4, use range of 1.79-3.32 in (45,5-84,3 mm), 10/case - 7100017443

Sold As: 10-Pack
SKU: 7100017443
MPN: 7100017443
For an accurate lead time please contact us
UPC: 00051128583913
3M ID: 80611455215
5 Digit UPC: 58391
$279.67 ($27.97 / Count)
Hurry up! Current stock:

Product Description

3M™ Cold Shrink End Caps EC Series are close ended, tubular rubber sleeves that are factory expanded and loaded onto a removable core. When positioned over the end of a cable or other cylindrical object, the core is removed to provide a reliable environmental seal. Different end caps are available to accommodate a wide range of sizes.

Features

  • RoHS 2011/65/EU Compliant
  • Close-ended, EPDM tubular rubber sleeves that are loaded onto a removable core
  • Made of EPDM rubber which contains no chlorides or sulfur
  • Resists water, alkalis, acids, abrasion and ozone
  • Water resistant and provides physical protection for cables and pipes
  • Simple and fast installation without any tools
Spec Sheet



Downloads

Specifications

Shelf Life1800
Country of OriginChina
Inner Diameter After Shrink (Imperial) UOMin
Flame RetardantNo
Units per Case10.0
End Cap TypeCold Shrink
Inner Diameter Before Shrink (Imperial)3.32
Operating Temperature (Celsius)-40 up to +90°C
Product ColorBlack
Inner Diameter After Shrink (Imperial)1.79
With Inner GlueNo
Shrink TypeCold Shrink
Use Range (Metric)45.6-84.3 mm
Product TypeCold Shrink
Adhesive LinedNo
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Metric) UOMmm
Shrink Ratio2:1
Inner Diameter After Shrink (Metric)45.5
ApplicationSealing the end of the cable
Inner Diameter Before Shrink (Metric)84.3
Inner Diameter After Shrink (Metric) UOMmm
Use Range1.79 - 3.32 in
Inner Diameter Before Shrink (Imperial) UOMin
