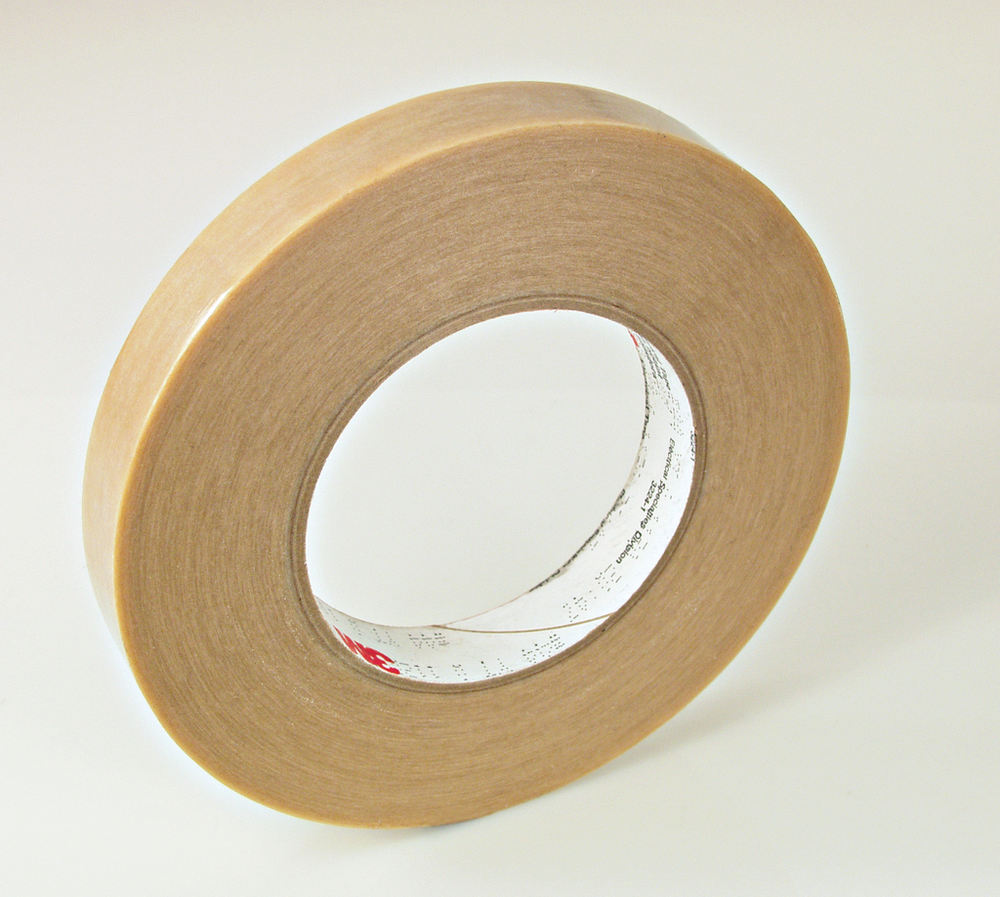

3M™ Composite Film Electrical Tape 44, 1-1/4 in x 90 yd, 3 in Plastic Core - 7010293656

Sold As: 28-Pack
SKU: 7010293656
MPN: 7010293656
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128572962
3M ID: 80611438963
5 Digit UPC: 57296
$1,014.24 ($36.22 / Count)
Hurry up! Current stock:

Product Description

3M™ Tape 44 is a low halogen, edge tear resistant, electrical tape that's suitable for general purpose insulation, as well as anchoring and banding in motors and transformers. The tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • The combination of the thermosetting, rubber adhesive and the polyester-web and polyester film backing provides excellent adherence and dielectric strength
  • For protecting start wires, leads, terminal strips and insulation paper
  • UL Listed and RoHS 2011/65/EU Compliant
  • Ideal for economical, general-purpose insulation, anchoring and banding in motors and transformers
  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • Offers great electrical properties and is puncture-resistant
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Shelf Life UOMYear
Minimum Operating Temperature (Fahrenheit)32.0
Overall Width (Metric)31.8
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product MarketsElectrical Equipment Manufacturing
ApplicationInsulation
Overall Width (Imperial)1.25
Maximum Operating Temperature (Fahrenheit)266.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Backing (Carrier) MaterialComposite
Electrolytic Corrosion Factor1.0
Adhesive TypeThermosetting Rubber
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Celsius)0.0
Maximum Operating Temperature (Celsius)130.0
Maximum Operating Temperature (Celsius) UOMDegree
Specifications MetCSA Certified, RoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
