3M Products & Supplies

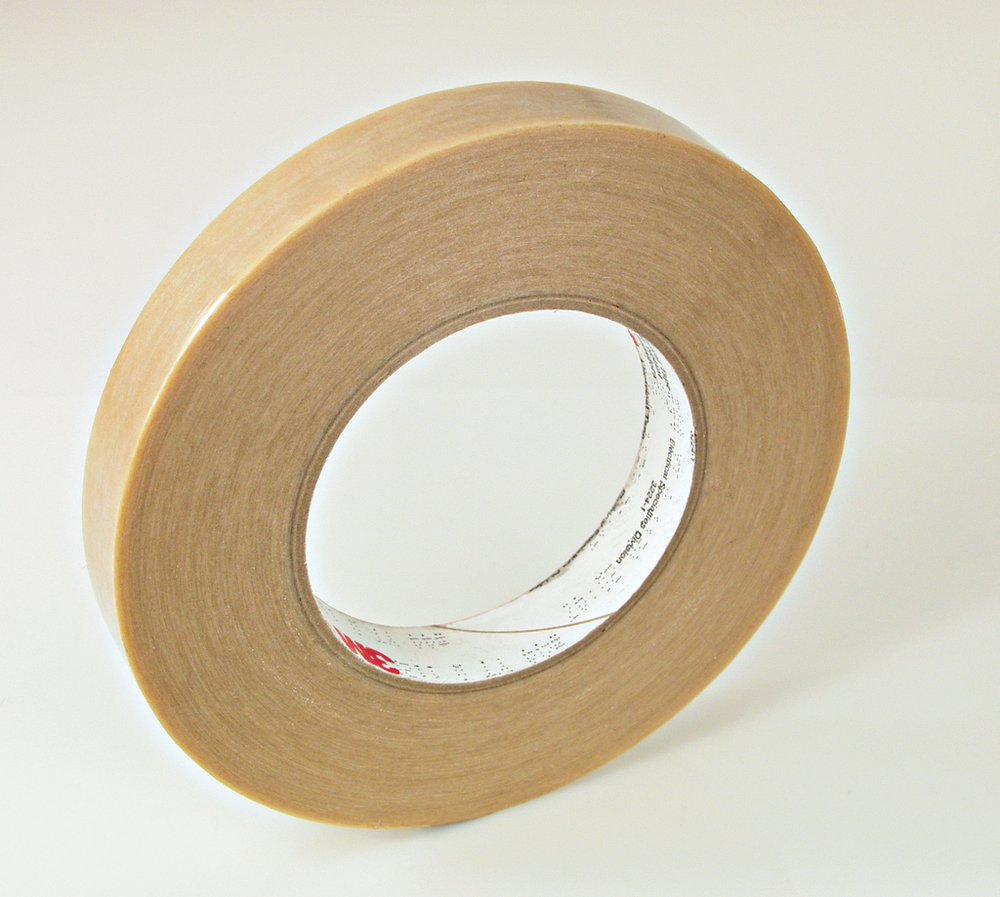

3M™ Composite Film Electrical Tape 44, 1 1/2 in x 90 yd, 3 in Paper Core, 24 Rolls/Case - 7010396870

Sold As: 24-Pack
SKU: 7010396870
MPN: 7010396870
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138466381
3M ID: 80610843064
5 Digit UPC: 46638
$1,146.79 ($47.78 / Count)
Hurry up! Current stock:

Product Description

3M™ Tape 44 is a low halogen, edge tear resistant, electrical tape that's suitable for general purpose insulation, as well as anchoring and banding in motors and transformers. The tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • UL Listed and RoHS 2011/65/EU Compliant
  • Ideal for economical, general-purpose insulation, anchoring and banding in motors and transformers
  • For protecting start wires, leads, terminal strips and insulation paper
  • The combination of the thermosetting, rubber adhesive and the polyester-web and polyester film backing provides excellent adherence and dielectric strength
  • Offers great electrical properties and is puncture-resistant
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Backing (Carrier) MaterialComposite
Overall Width (Imperial)1.5
Minimum Operating Temperature (Celsius) UOMDegree
Specifications MetCSA Certified, RoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
Maximum Operating Temperature (Fahrenheit) UOMDegree
Shelf Life UOMYear
Overall Length (Imperial)90.0
ApplicationInsulation
Adhesive TypeThermosetting Rubber
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric)38.1
Maximum Operating Temperature (Celsius)130.0
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)266.0
Minimum Operating Temperature (Celsius)0.0
Minimum Operating Temperature (Fahrenheit)32.0
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Celsius) UOMDegree
Product MarketsElectrical Equipment Manufacturing
Overall Width (Imperial) UOMin
Electrolytic Corrosion Factor1.0
