3M Products & Supplies

3M™ Composite Film Electrical Tape 44HT, 24 in x 90 yd, 3 in Paper Core, 1 Roll/Case - 7010398243

SKU: 7010398243
MPN: 7010398243
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128575673
3M ID: 80611467004
5 Digit UPC: 57567
$562.21 each
Hurry up! Current stock:

Product Description

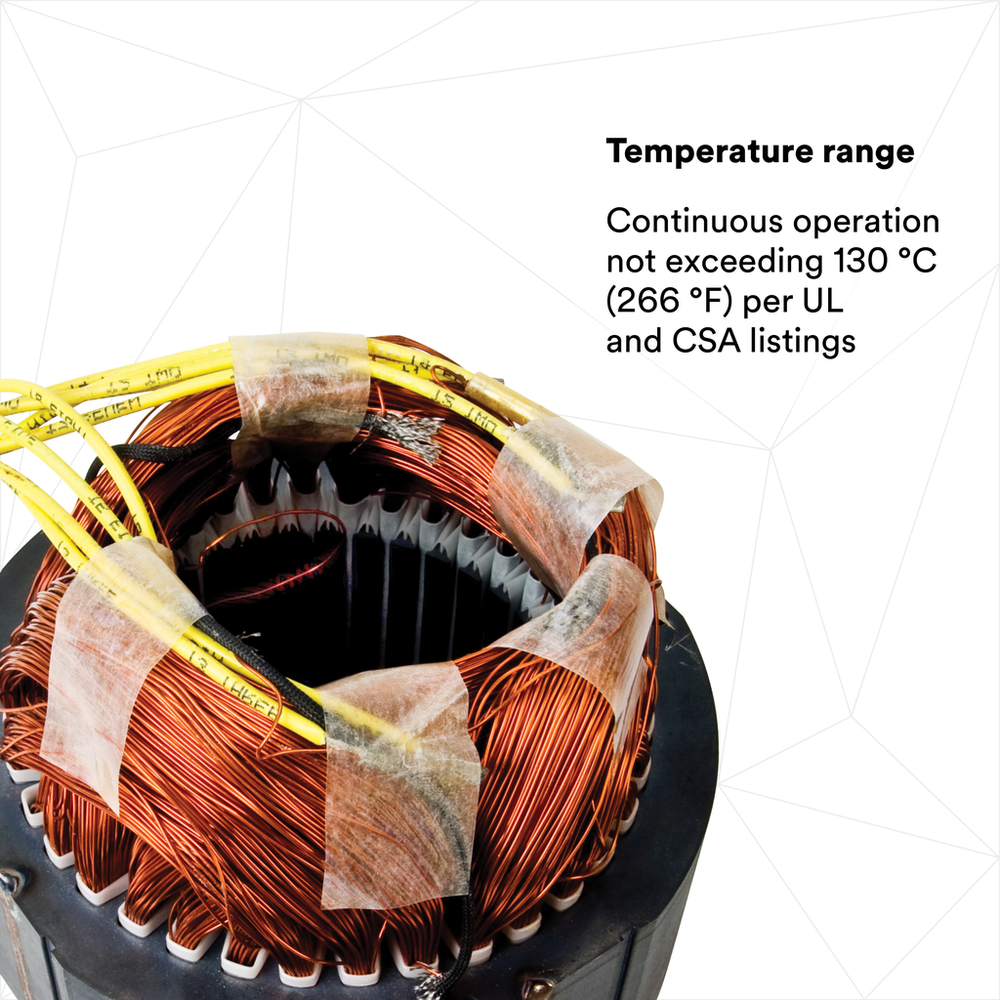

3M™ Composite Film Electrical Tape 44HT is a high tack, edge tear resistant electrical tape. This flame retardant tape is suitable for general purpose insulation, as well as anchoring and banding in motors and transformers. The tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • The combination of the thermosetting, rubber adhesive and the polyester-web and polyester film backing provides excellent adherence and dielectric strength
  • Ideal for economical, general-purpose insulation, anchoring and banding in motors and transformers
  • Puncture-resistant, flame-retardant and offers great electrical properties
  • UL Listed and RoHS 2011/65/EU Compliant

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Celsius)0.0
Product ColorTan
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial)24.0
Total Tape Thickness without Liner (Metric)0.14
Overall Width (Metric)609.6

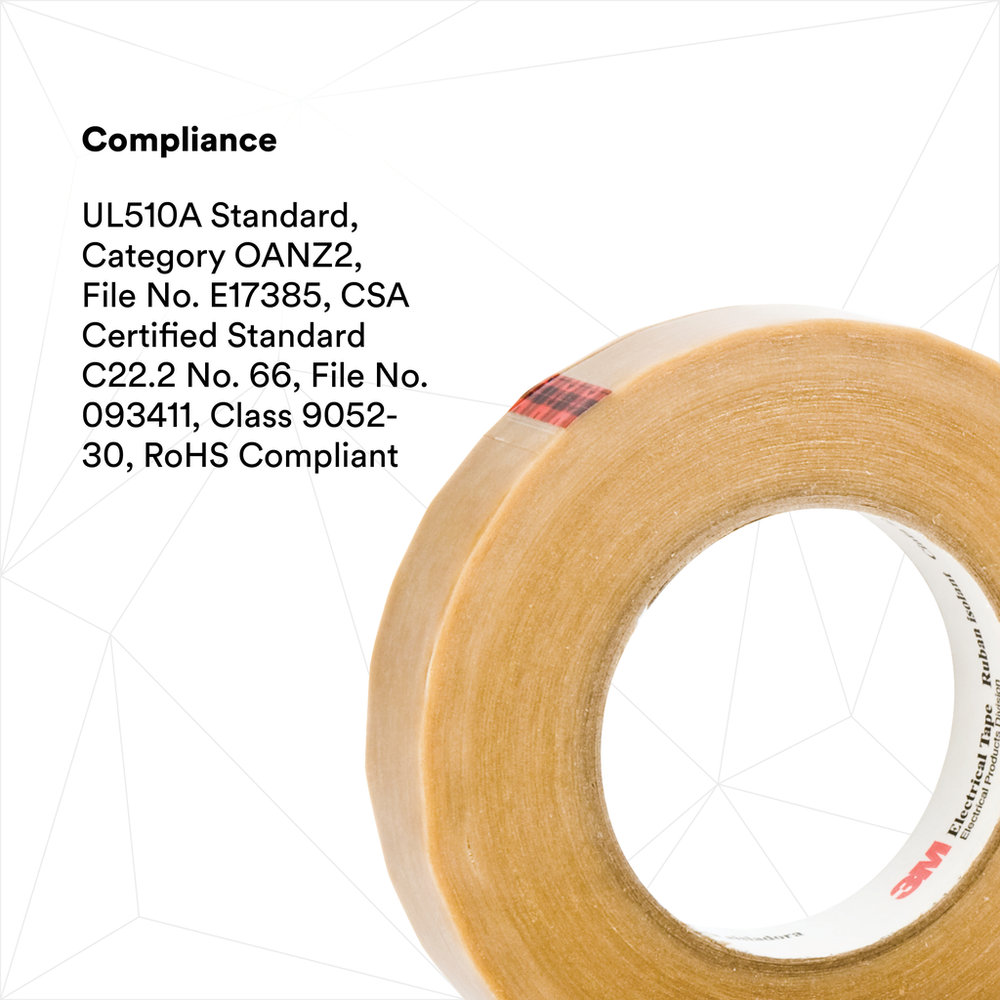

Specifications MetCSA Certified, RoHS 2011/65/EU, UL Recognized
Minimum Operating Temperature (Fahrenheit)32.0
Adhesive TypeThermosetting Rubber
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit)266.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Electrolytic Corrosion Factor1.0
Maximum Operating Temperature (Celsius)130.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) MaterialPolyester
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial)5.5
Overall Width (Metric) UOMmm
Product MarketsElectrical Equipment Manufacturing
