3M Products & Supplies

3M™ Composite Film Electrical Tape 44HT, 1 in x 90 yd, 36 Rolls/Case - 7010351318

Sold As: 36-Pack
SKU: 7010351318
MPN: 7010351318
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128582589
3M ID: 80611467012
5 Digit UPC: 58258
$1,064.26 ($29.56 / Count)
Hurry up! Current stock:

Product Description

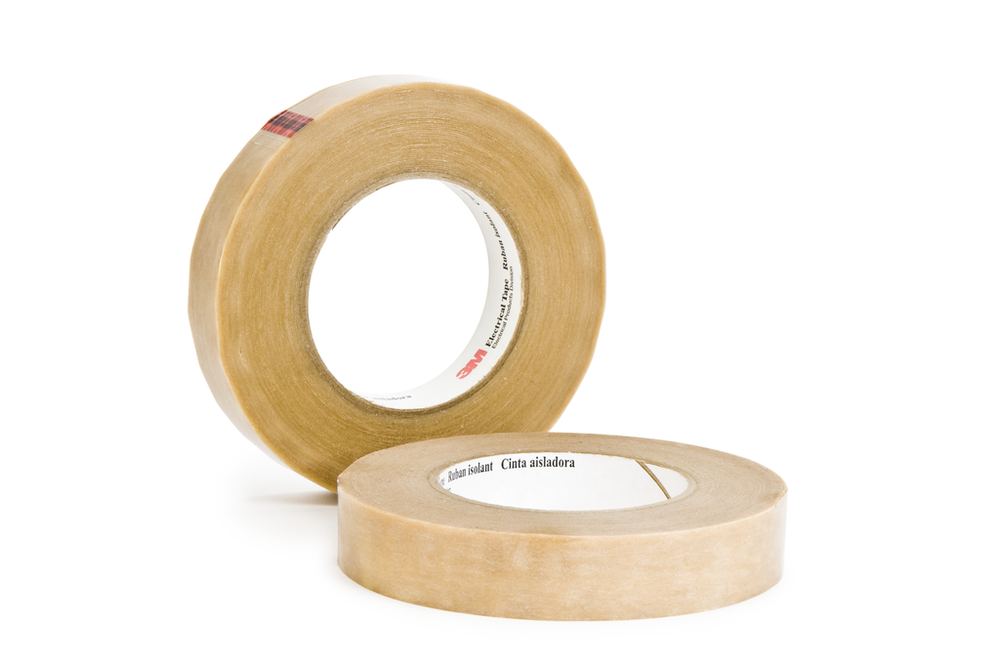

3M™ Composite Film Electrical Tape 44HT is a high tack, edge tear resistant electrical tape. This flame retardant tape is suitable for general purpose insulation, as well as anchoring and banding in motors and transformers. The tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • Ideal for economical, general-purpose insulation, anchoring and banding in motors and transformers
  • The combination of the thermosetting, rubber adhesive and the polyester-web and polyester film backing provides excellent adherence and dielectric strength
  • Puncture-resistant, flame-retardant and offers great electrical properties
  • UL Listed and RoHS 2011/65/EU Compliant
  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Minimum Operating Temperature (Celsius) UOMDegree
Electrolytic Corrosion Factor1.0
Overall Length (Metric)82.3
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit)32.0
Overall Width (Imperial)1.0
Product MarketsElectrical Equipment Manufacturing
Rolls per Case36.0
Overall Length (Metric) UOMm
Minimum Operating Temperature (Celsius)0.0
Overall Width (Imperial) UOMin
Overall Width (Metric) UOMmm
Backing (Carrier) MaterialPolyester
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)90.0
Total Tape Thickness without Liner (Imperial)5.5
Maximum Operating Temperature (Fahrenheit) UOMDegree
Dielectric Strength5500.0
Adhesive TypeThermosetting Rubber
Insulation Resistance>1 x 10^6 megohms
Maximum Operating Temperature (Celsius)130.0
Total Tape Thickness without Liner (Imperial) UOMmil
Elongation at Break50
Total Tape Thickness without Liner (Metric)0.14
Overall Width (Metric)25.4
Overall Length (Imperial) UOMyd
Dielectric Strength UOMV
Maximum Operating Temperature (Fahrenheit)266.0
Specifications MetCSA Certified, RoHS 2011/65/EU, UL Recognized
