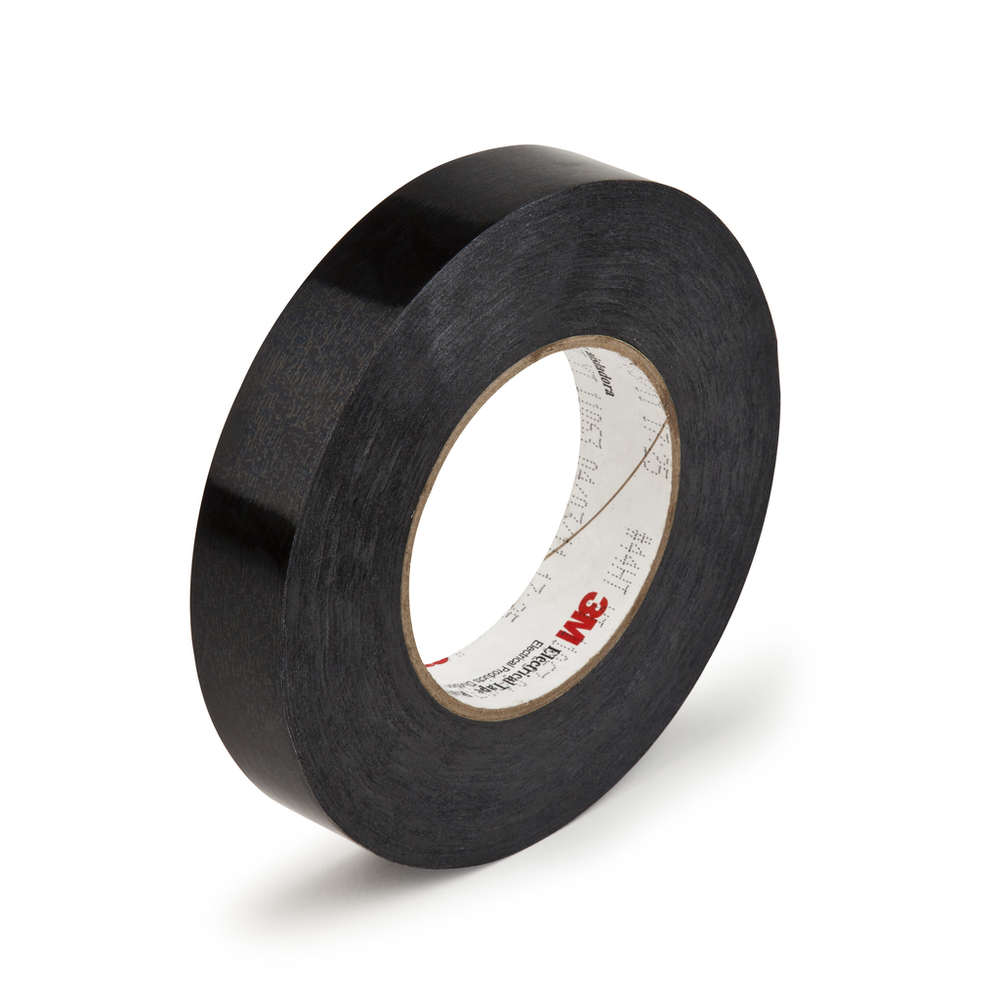

3M™ Composite Film Electrical Tape 44HT, 23.5 in x 90 yd, plastic core, 1 Roll/Case - 7010320794

SKU: 7010320794
MPN: 7010320794
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128583784
3M ID: 80611467038
5 Digit UPC: 58378
$551.20 each
Hurry up! Current stock:

Product Description

3M™ Composite Film Electrical Tape 44HT is a high tack, edge tear resistant electrical tape. This flame retardant tape is suitable for general purpose insulation, as well as anchoring and banding in motors and transformers. The tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • UL Listed and RoHS 2011/65/EU Compliant
  • The combination of the thermosetting, rubber adhesive and the polyester-web and polyester film backing provides excellent adherence and dielectric strength
  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • Ideal for economical, general-purpose insulation, anchoring and banding in motors and transformers
  • Puncture-resistant, flame-retardant and offers great electrical properties

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Specifications MetCSA Certified, RoHS 2011/65/EU, UL Recognized
Product MarketsElectrical Equipment Manufacturing
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)266.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial) UOMmil
Adhesive TypeThermosetting Rubber
Total Tape Thickness without Liner (Imperial)5.5
Overall Width (Imperial)23.5
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric)596.9
Backing (Carrier) MaterialPolyester
Total Tape Thickness without Liner (Metric)0.14
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Celsius)130.0
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Fahrenheit)32.0
Electrolytic Corrosion Factor1.0
Minimum Operating Temperature (Celsius)0.0
